Front speaker amplifier (354F)

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location:  under left-hand seat

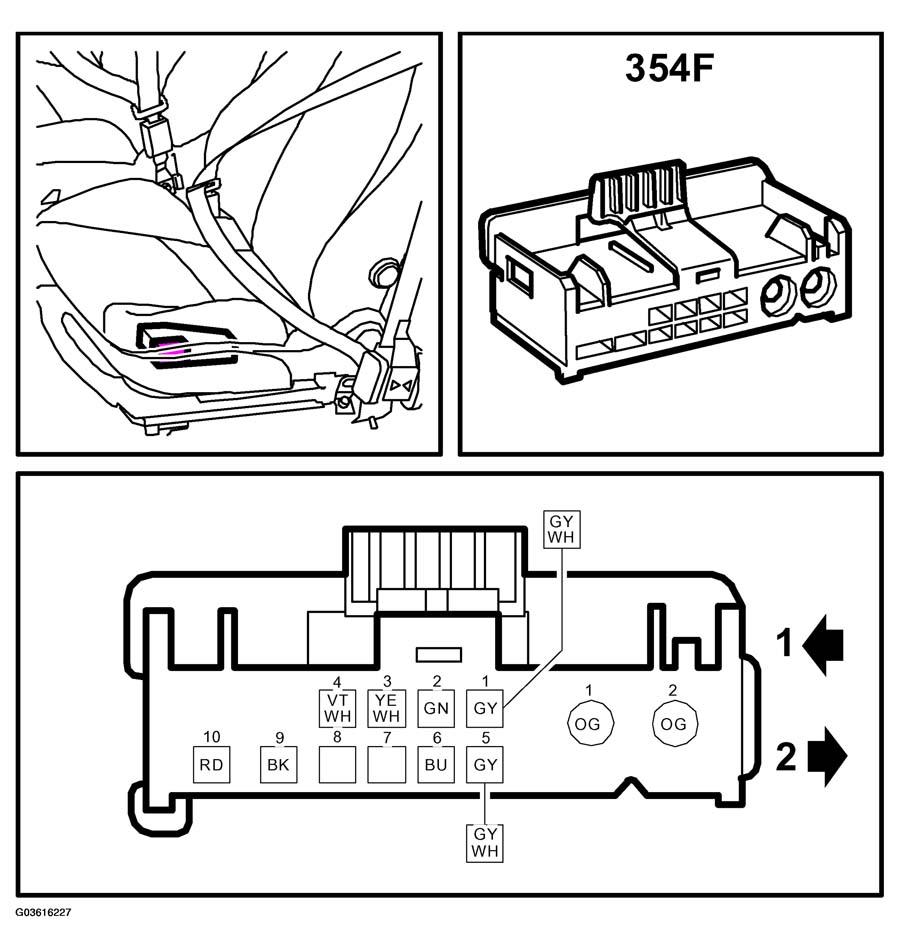

Fig 1: Identifying Front Speaker Amplifier (354F)
G03616227Courtesy of SAAB-SCANIA OF AMERICA, INC.
