Section 50 (Bus And Diagnostics Communication)
>>
Component Location
>>
Data link connector 16 pin, CARB (445)
Data link connector 16 pin, CARB (445)
WARNING:
This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
Location:
under the dashboard by steering column

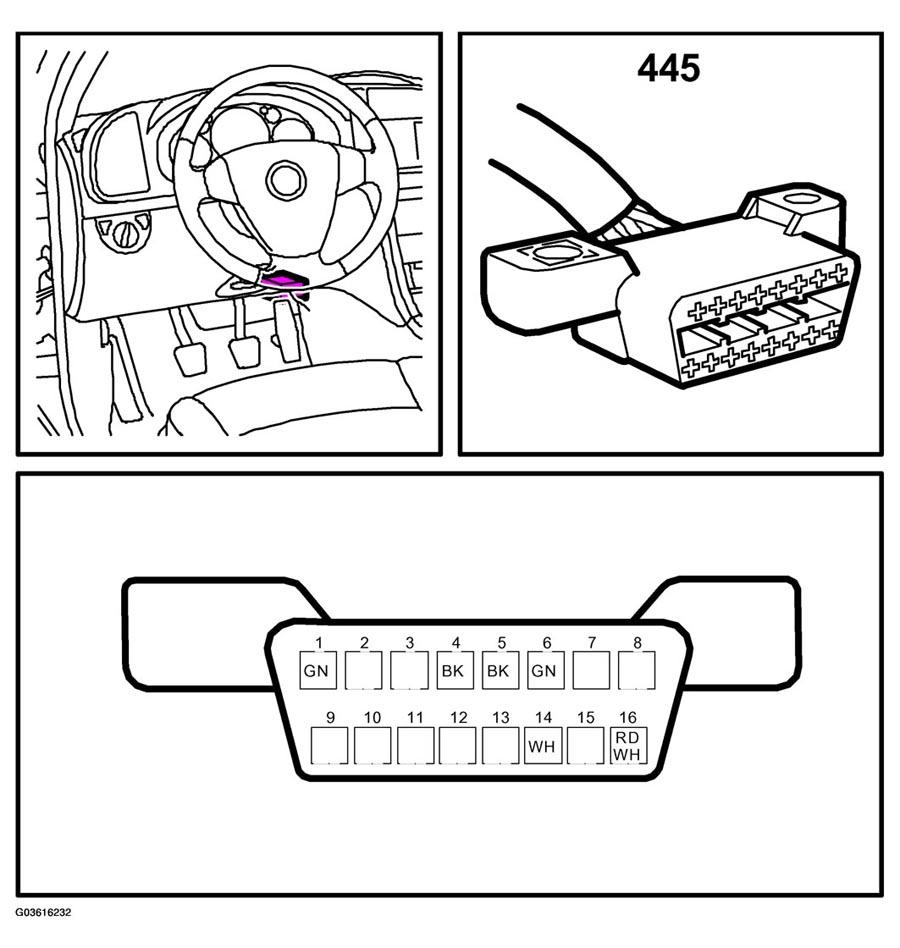

Fig 1: Identifying Data Link Connector 16 Pin, CARB (445)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
