Crimp connection J73, instrument harness: Notes

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location:

LHD:  Approx. 90 mm from infotainment control panel

RHD:  Approx. 110 mm from infotainment control panel

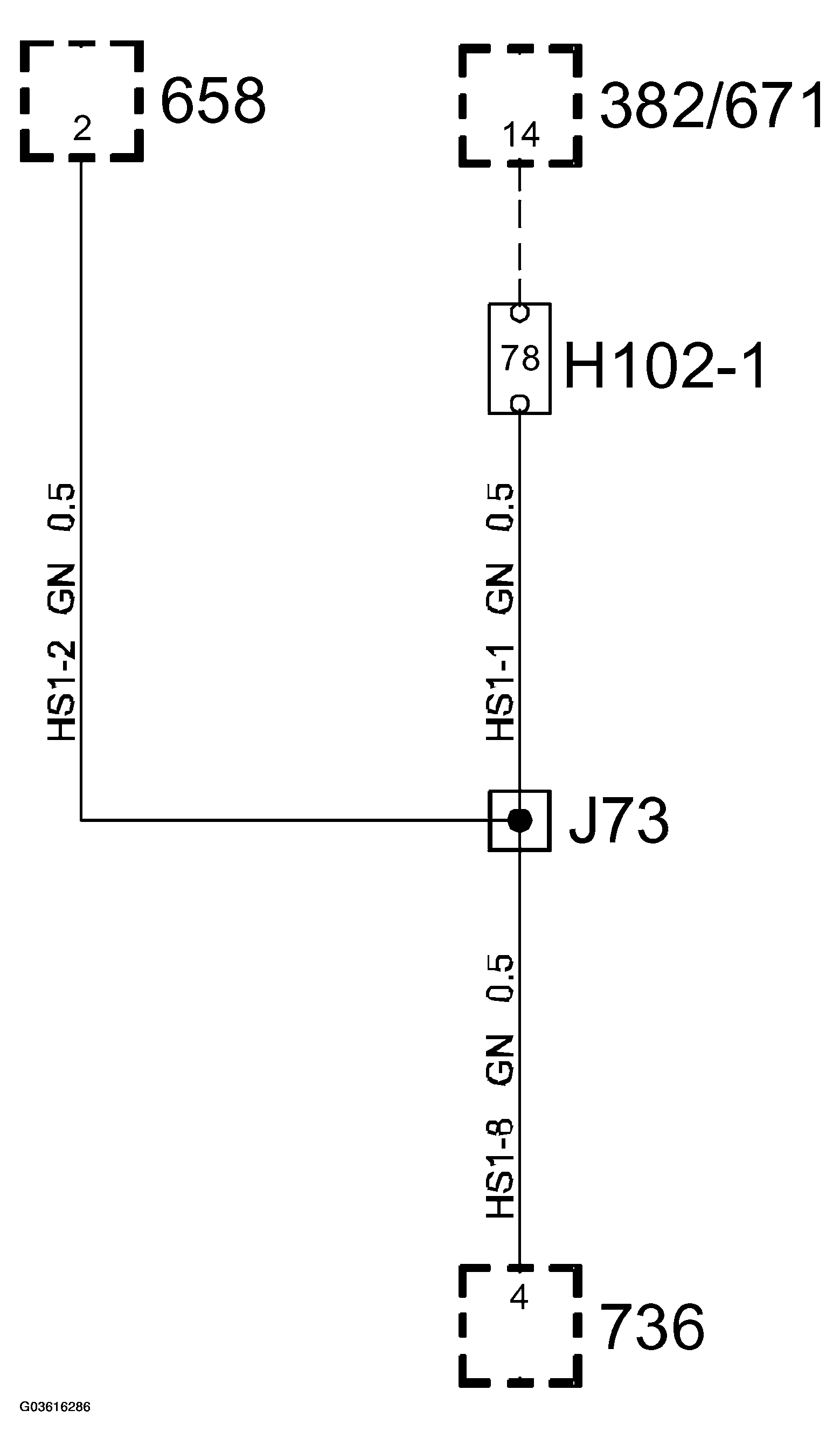

Fig 1: Identifying Crimp Connection J73 Wiring Diagram
G03616286Courtesy of SAAB-SCANIA OF AMERICA, INC.
