Crimp connection J72, instrument harness: Notes

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location:

Approx. 210 mm from the control panel, infotainment

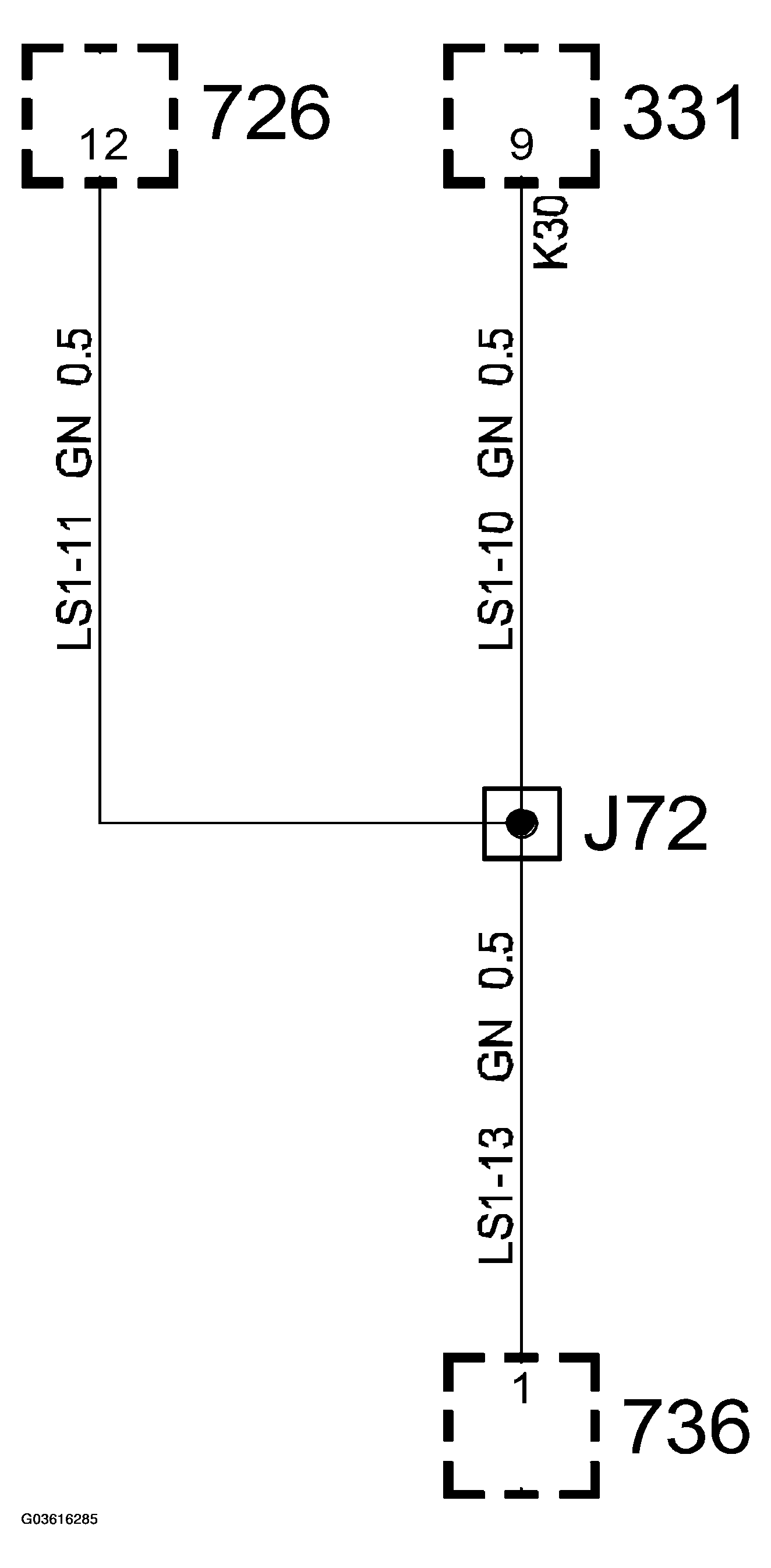

Fig 1: Identifying Crimp Connection J72 Wiring Diagram
G03616285Courtesy of SAAB-SCANIA OF AMERICA, INC.
