Crimp connection J105, main harness: Notes

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location:  Approx. 290 mm from branching of grounding point G14 towards airbag control module

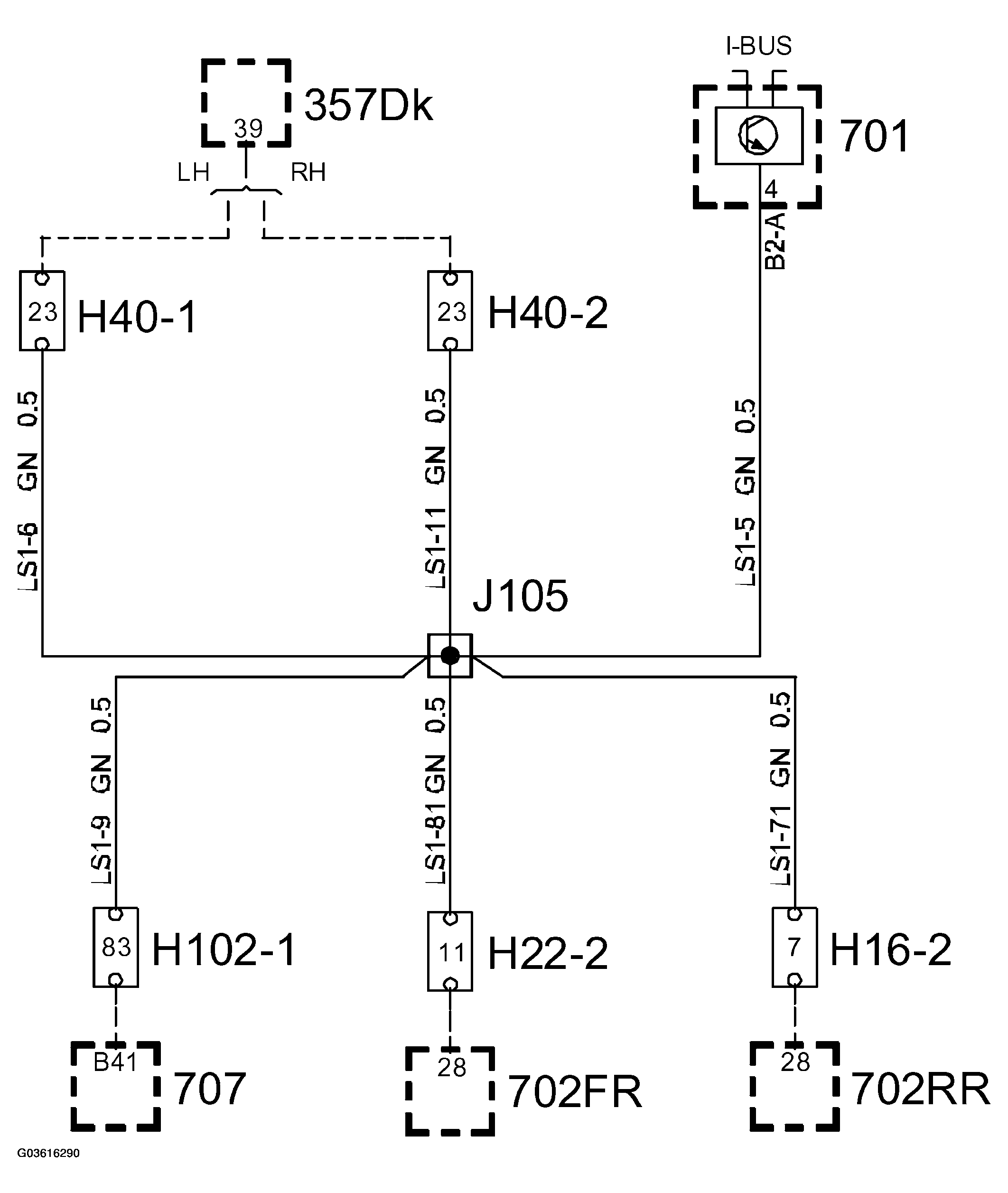

Fig 1: Identifying Crimp Connection J105 Wiring Diagram
G03616290Courtesy of SAAB-SCANIA OF AMERICA, INC.
