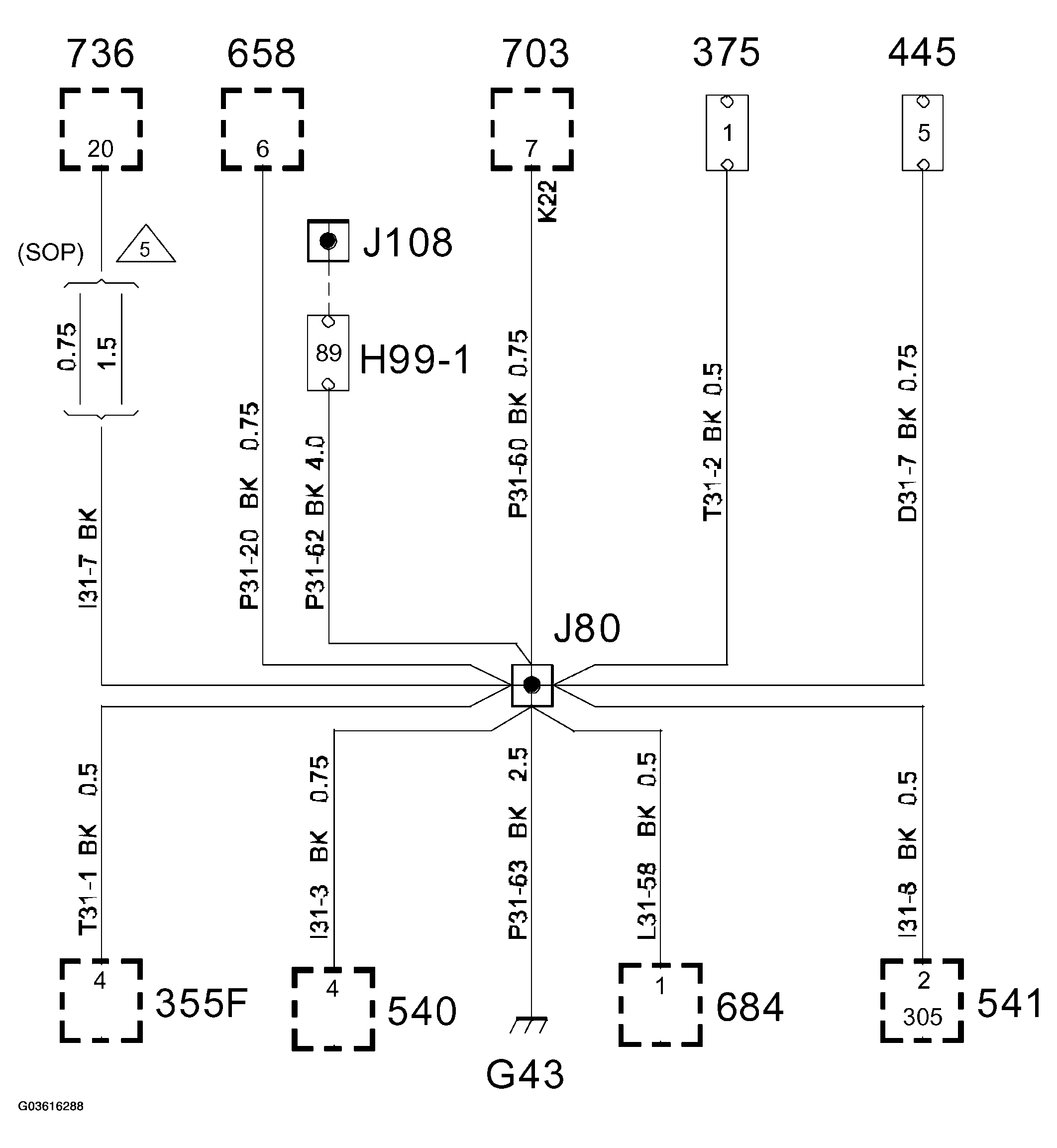

Crimp J80, instrument harness: Notes
WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
Location:
LHD:
Approx. 80 mm from branching point grounding point G43 towards grounding point G41
RHD:
Approx. 70 from branching point grounding point G43 towards SID
Courtesy of SAAB-SCANIA OF AMERICA, INC.
