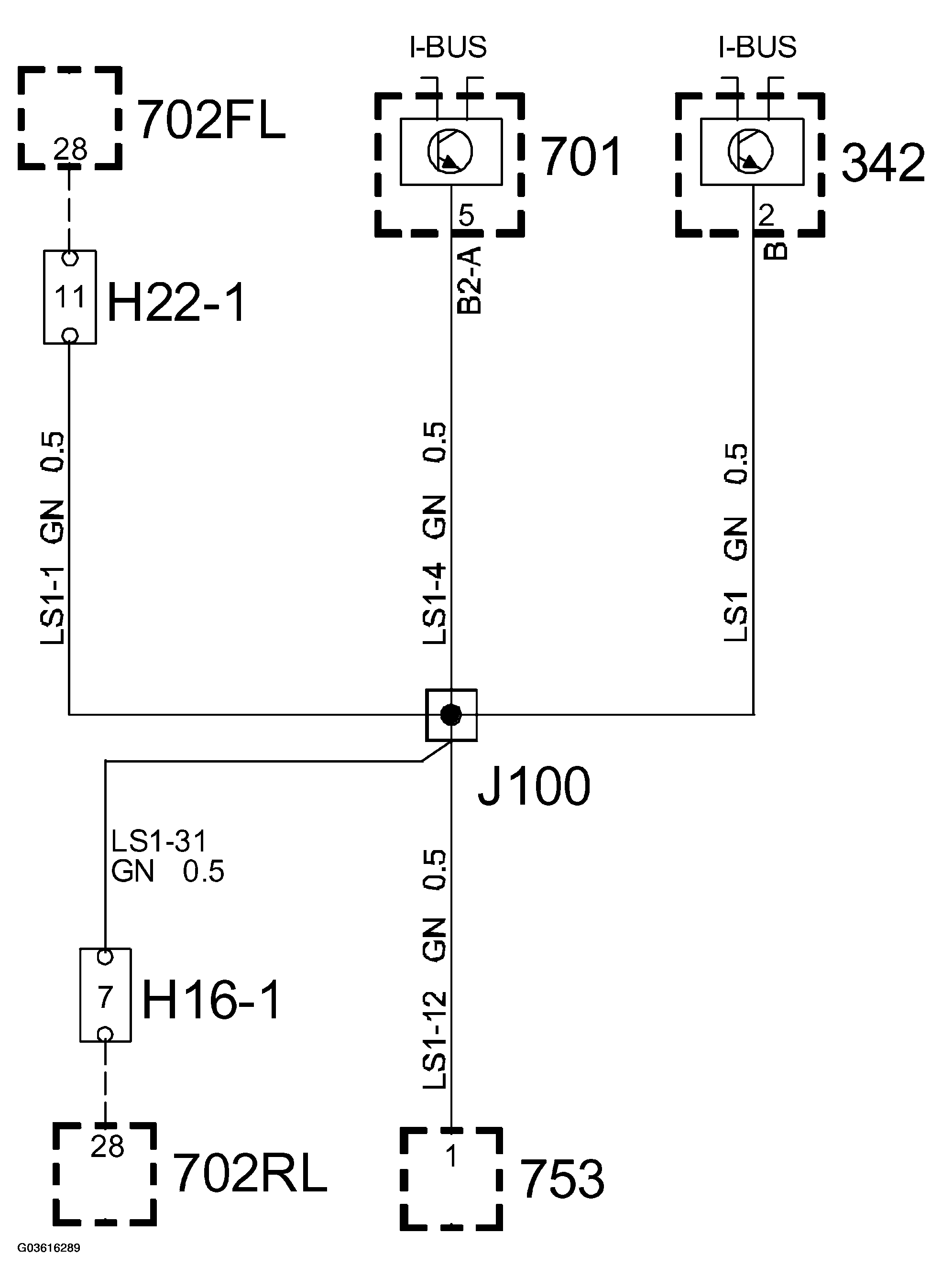

Crimp J100, main wiring harness: Notes
WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
Location:
SOP:
Approx. 50 mm from branching point seat-belt tensioner, LH B-pillar towards LH A-pillar
Rev.3:
Approx. 10 mm from branching point seat-belt tensioner, LH B-pillar towards LH Apillar
Courtesy of SAAB-SCANIA OF AMERICA, INC.
