Control module, sunroof (182)

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location:  in the sunroof assembly's front section

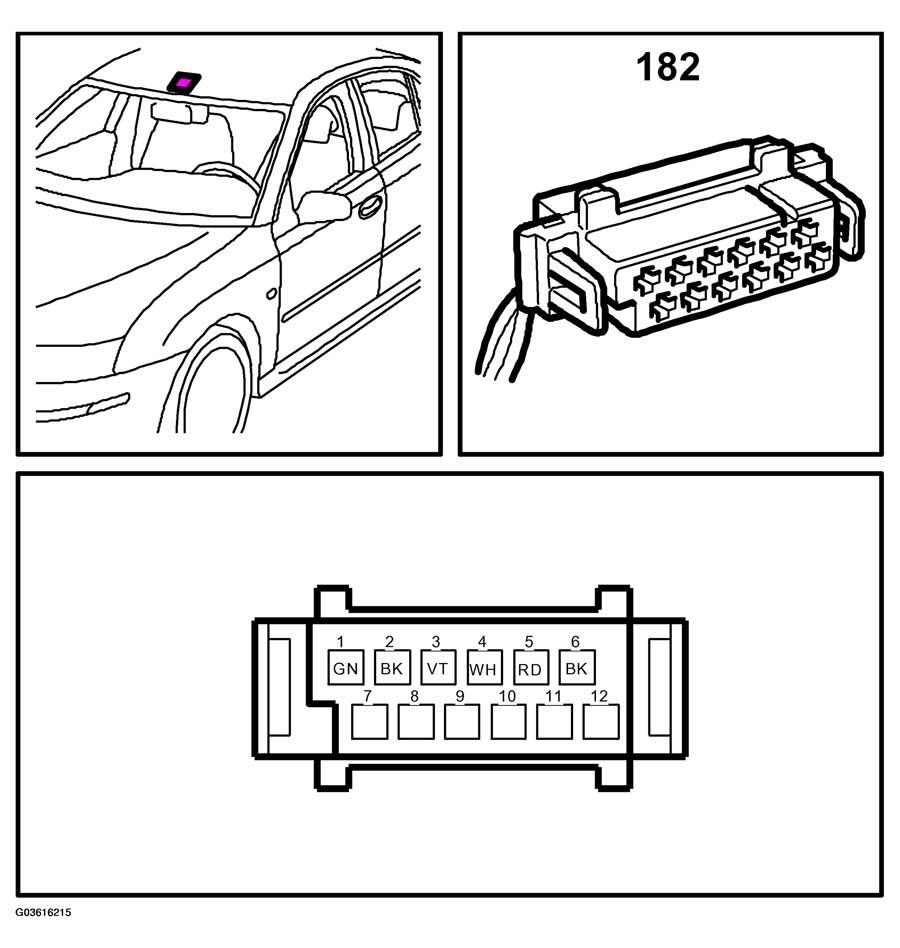

Fig 1: Identifying Sunroof Control Module (182)
G03616215Courtesy of SAAB-SCANIA OF AMERICA, INC.
