Control module, rear right door (702RR)

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location: in door

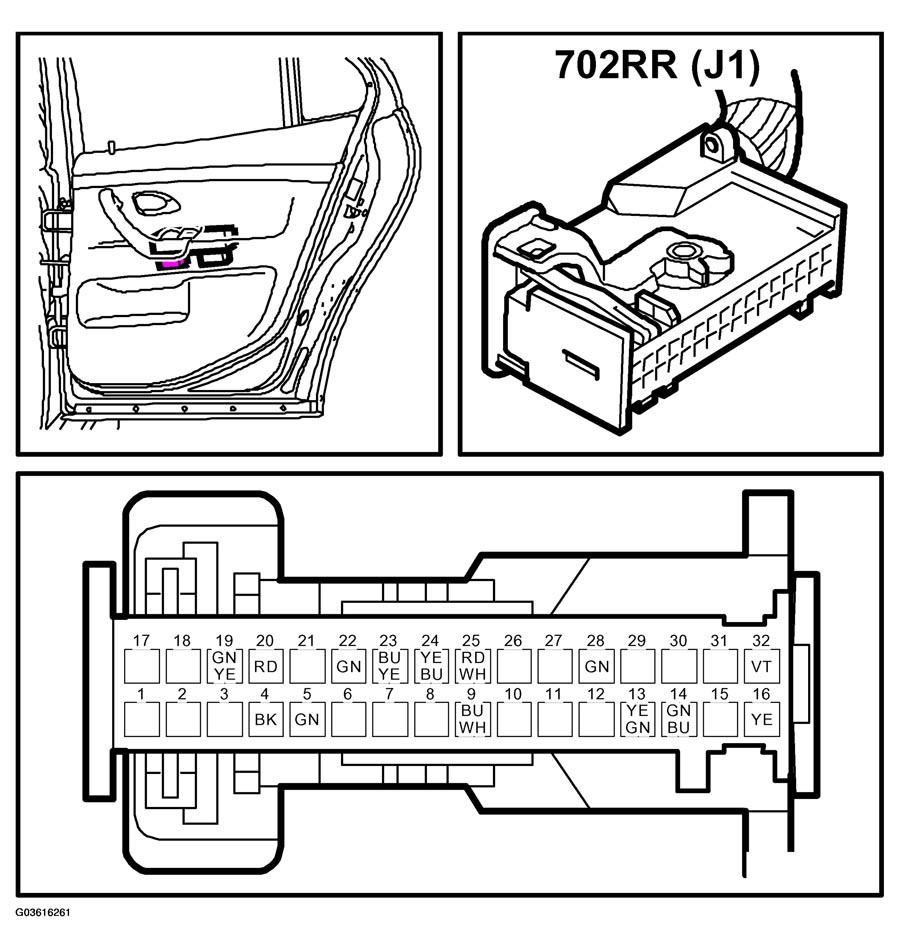

Fig 1: Identifying Rear Right Door Control Module J1 (702RR)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

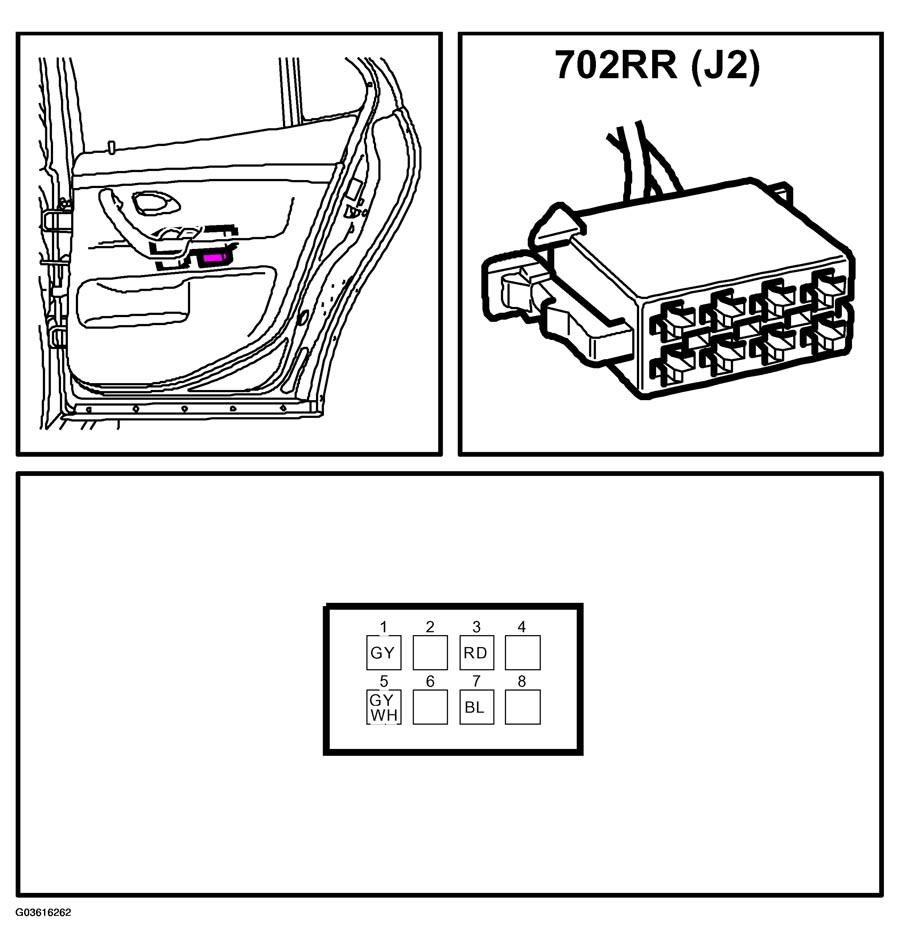

Fig 2: Identifying Rear Right Door Control Module J2 (702RR)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
