Control module, rear left door (702RL): J1

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

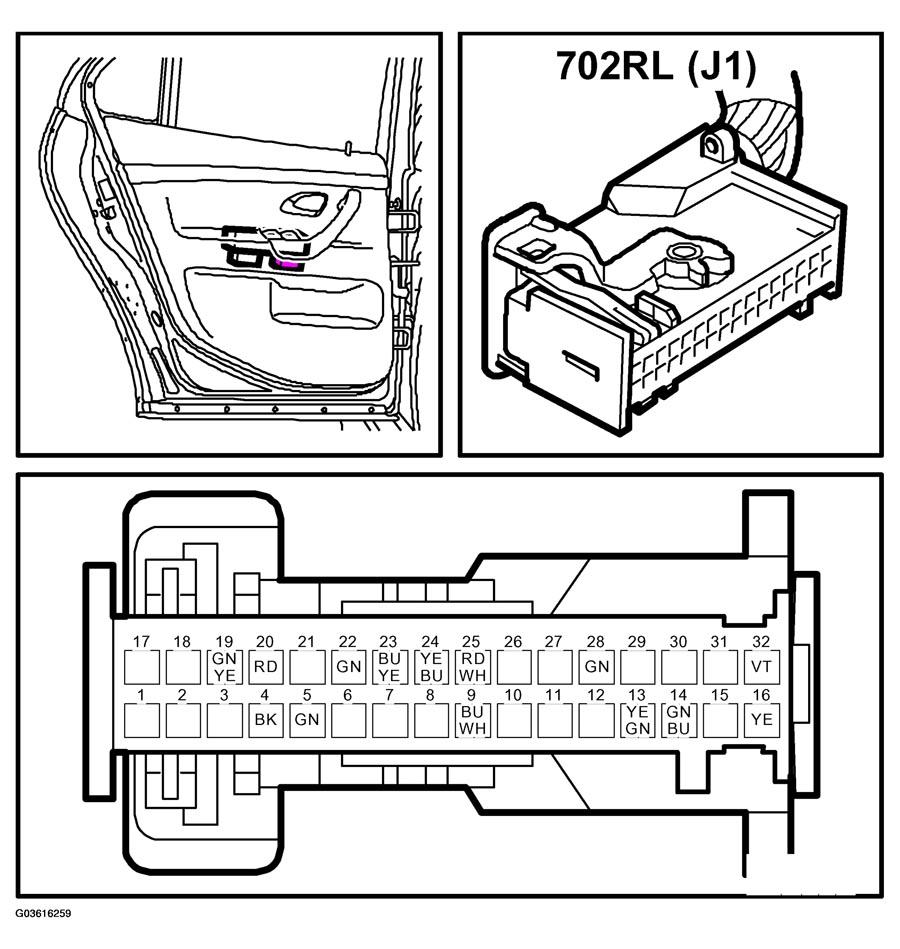

Fig 1: Identifying Rear Left Door Control Module J1 (702RL)
G03616259Courtesy of SAAB-SCANIA OF AMERICA, INC.
