Control module, PSG 16, 4-cyl diesel, switch K (595K)

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location:  engine front

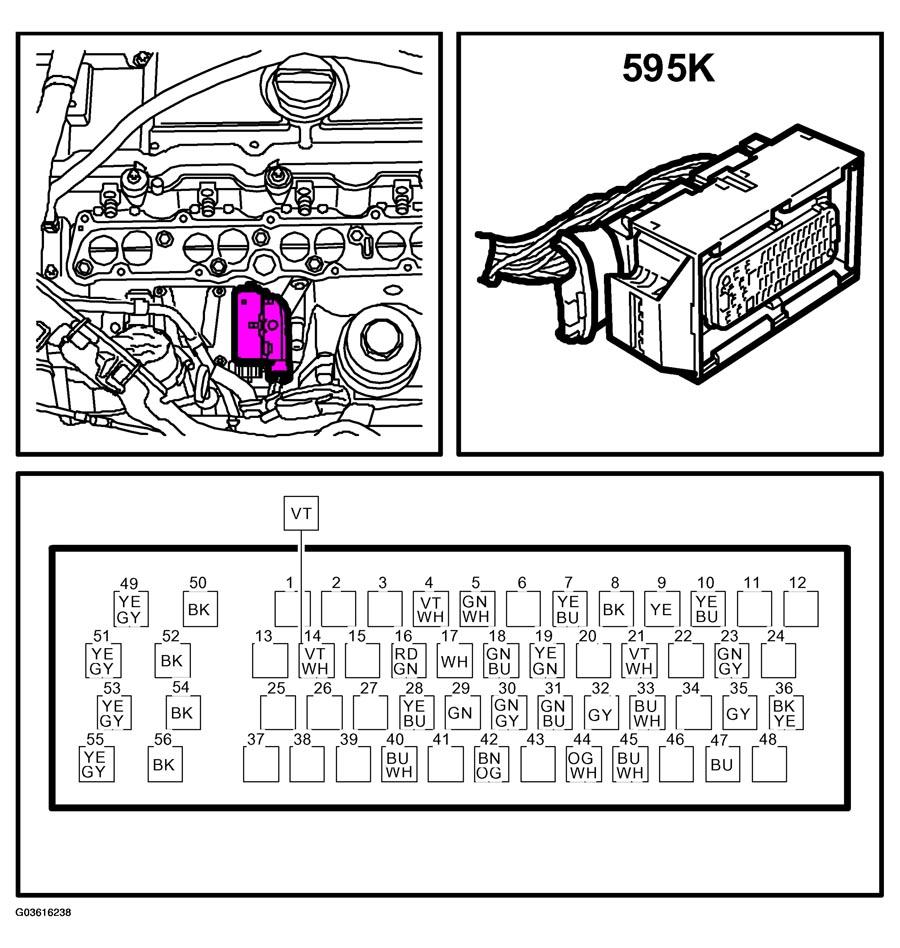

Fig 1: Identifying Control Module, PSG 16 And Switch K (595K)
G03616238Courtesy of SAAB-SCANIA OF AMERICA, INC.
