Connector H40-1

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location:  under the left seat

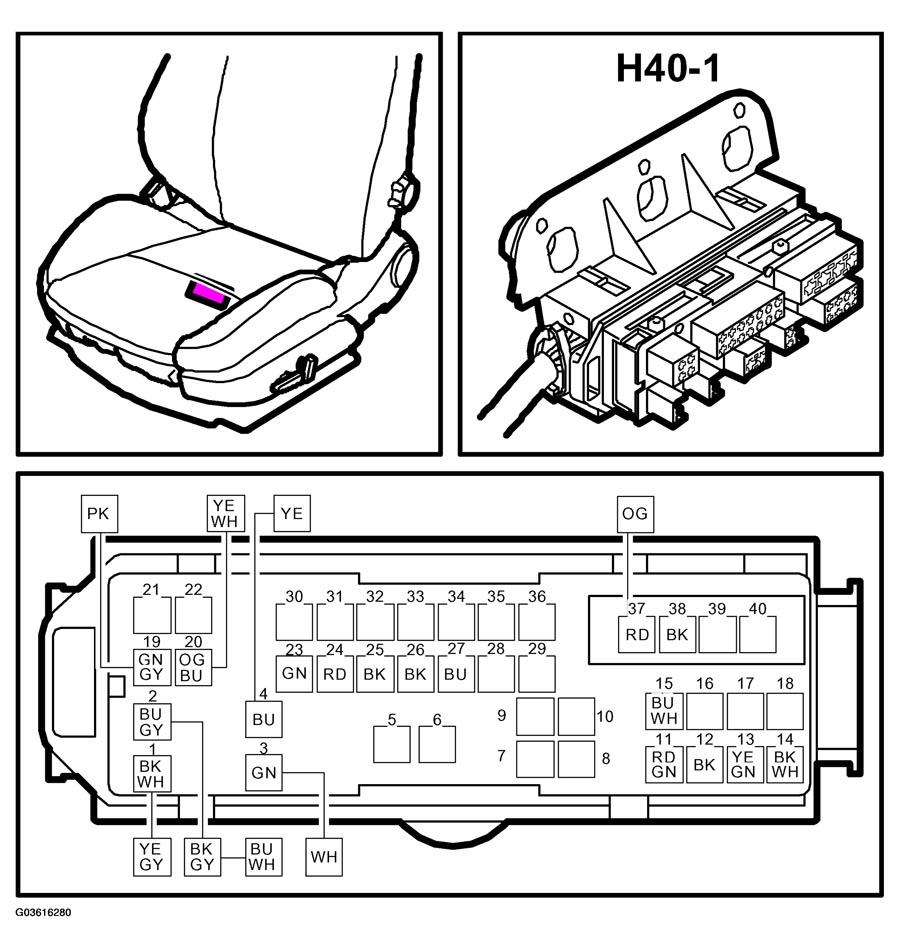

Fig 1: Identifying Connector H40-1
G03616280Courtesy of SAAB-SCANIA OF AMERICA, INC.
