WARNING: This page is about a different car, the 2003 Saab 9-3, 2002 Saab 9-3, 2001 Saab 9-3, and 2000 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

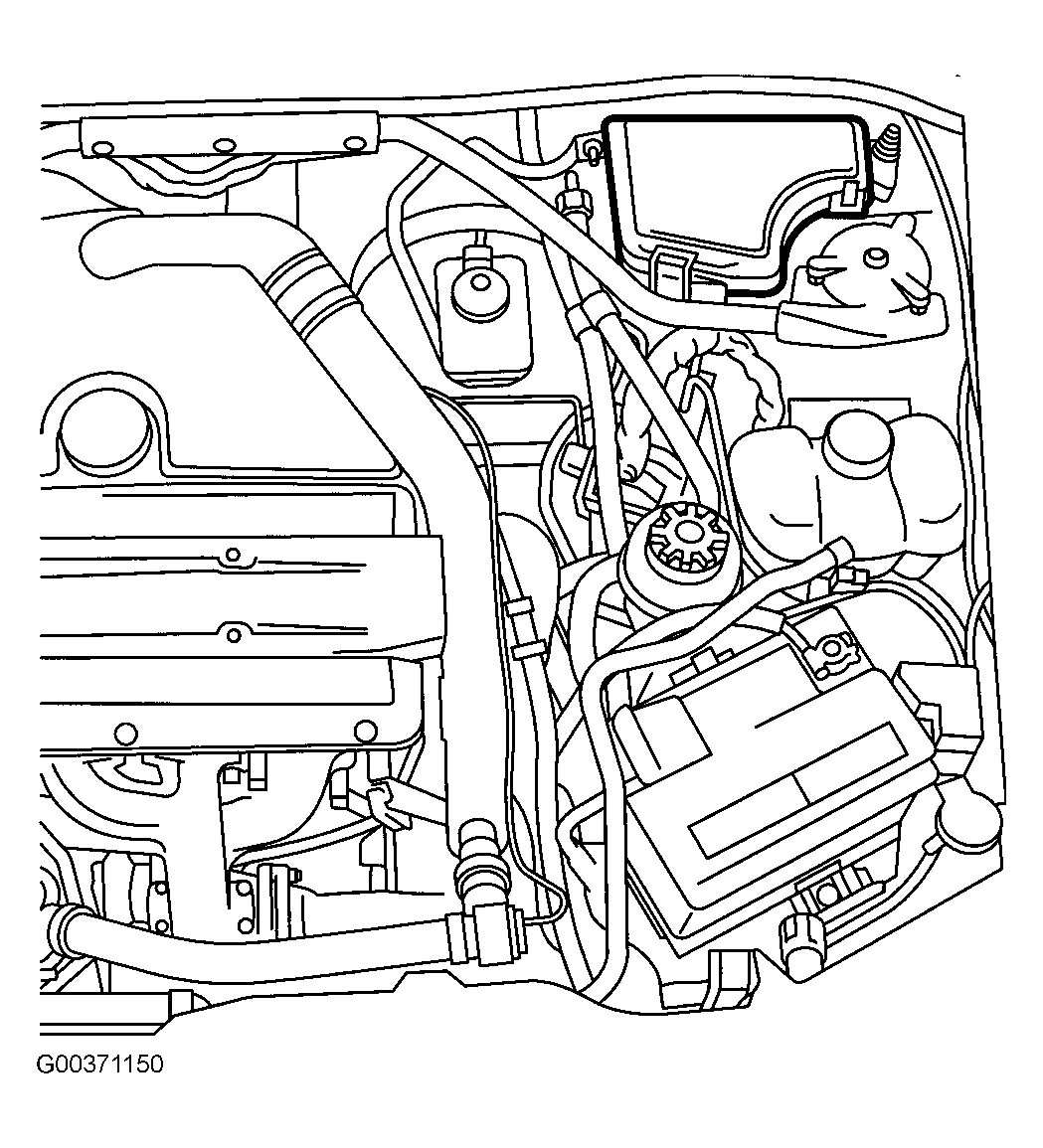

Relay board is located on the left-hand side of engine bay below windscreen. See Figure

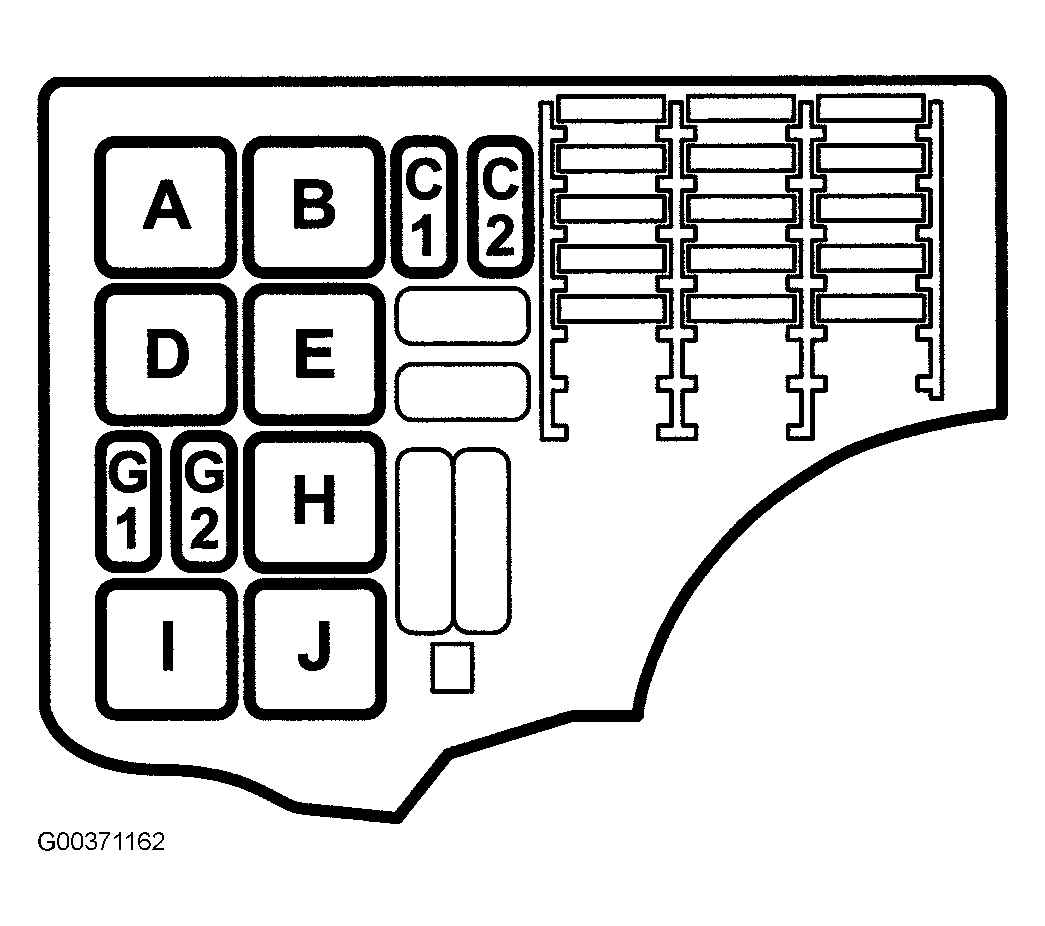

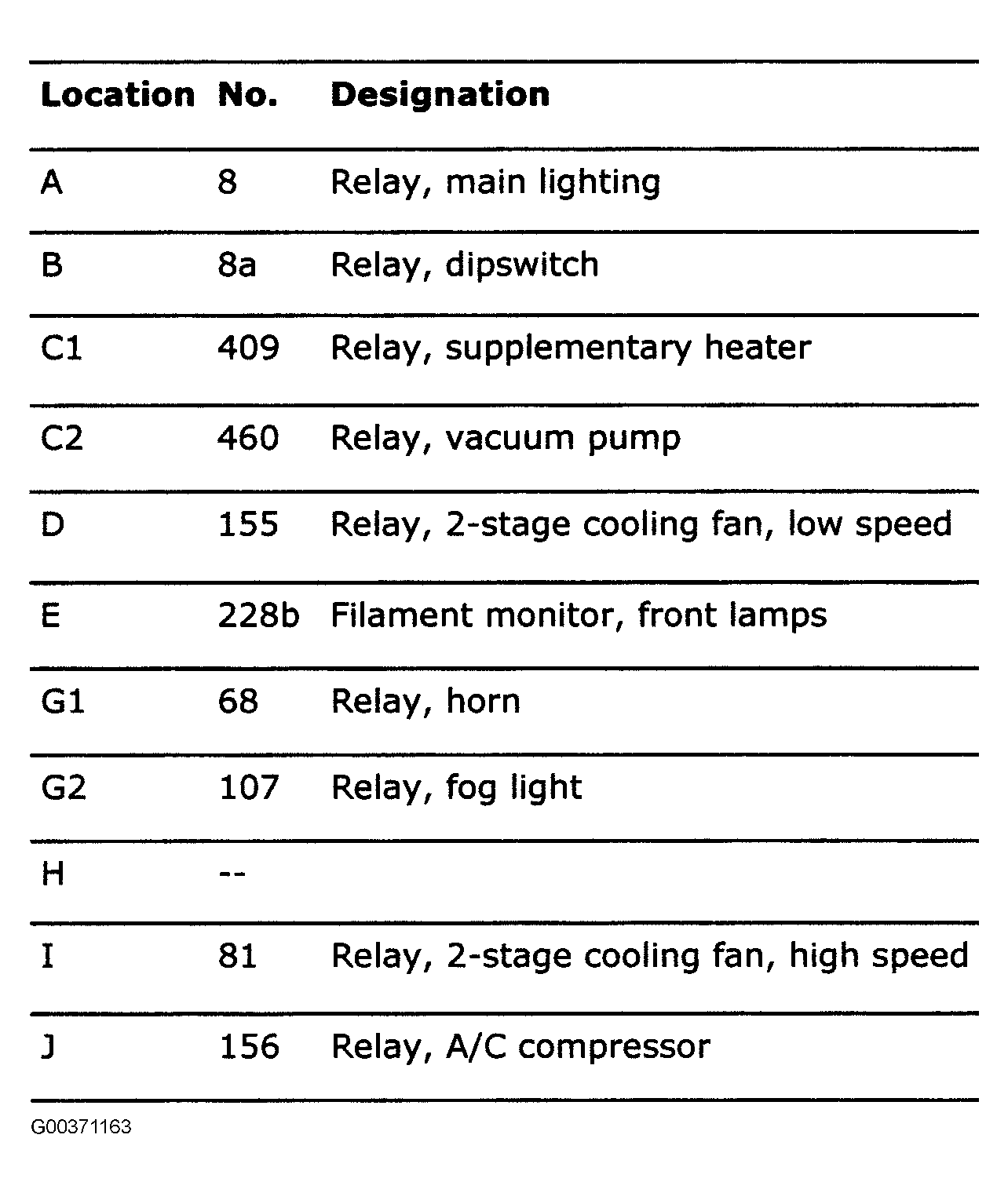

. To identify relays, see Fig 1
and Fig 2
.
