Section 11 (Electrical Component Locator (Early; 9400)): Grounds
WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

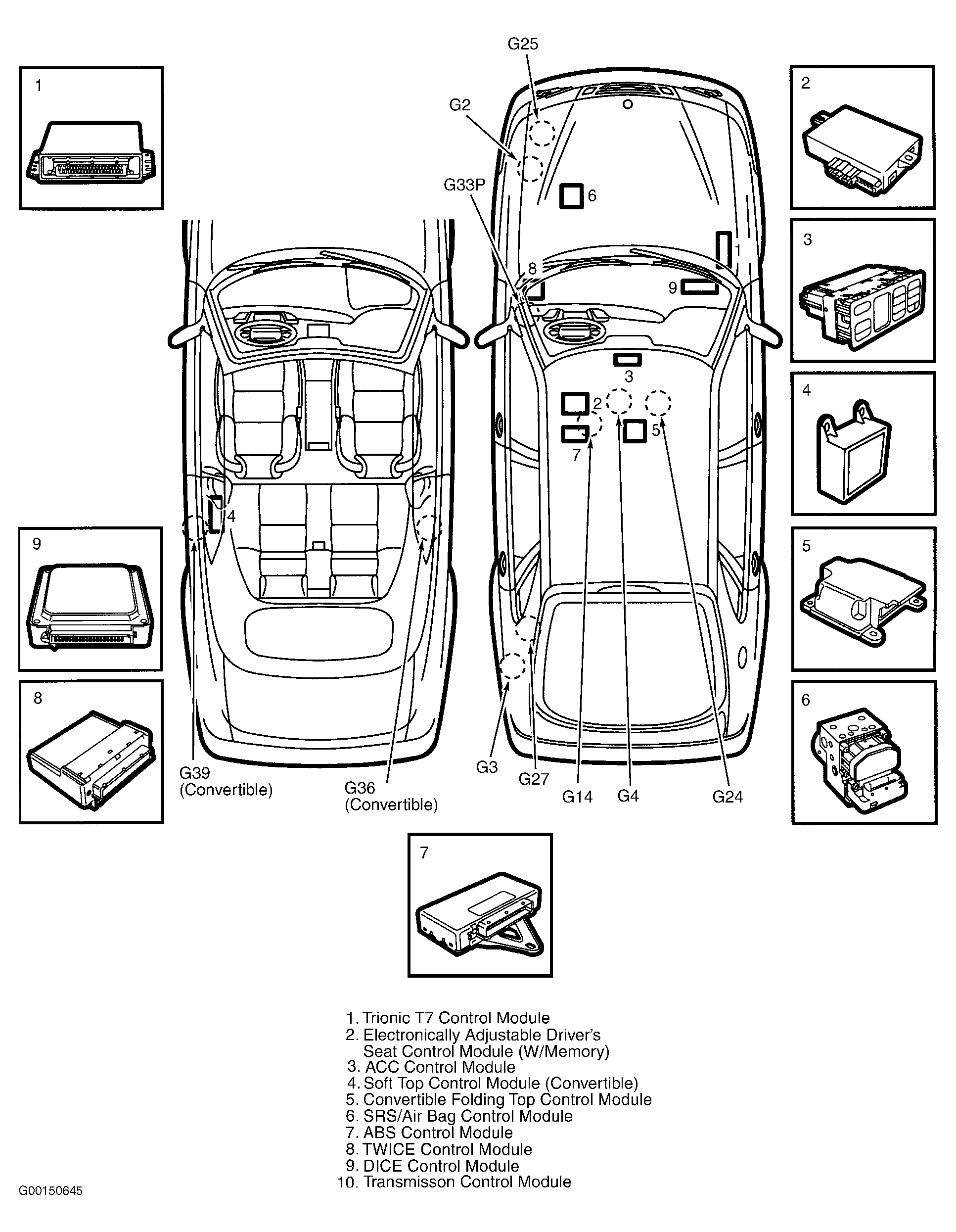

GROUNDS LOCATION
| Component | Component Location |
|---|---|
| G2 | In engine compartment, in front of left wheelwell. See Figure. |
| G3 | On luggage compartment, floor, below left taillight. See Figure. |
| G4 | On transmission tunnel, between seats. See Figure. |
| G7A | On side of intake manifold, near cylinder No. 4. |
| G7B | On side of intake manifold, near cylinder No. 4. |
| G14 | Under left front seat. See Figure. |
| G24 | Under right front seat. See Figure. |
| G25 | On left side of transmission. See Figure. |
| G27 | On bracket for power antenna. See Figure. |
| G30 | In engine compartment, in front of left wheelwell. |
| G31 | In engine compartment, in front of right wheelwell. |
| G33P | Below left "A" pillar. See Figure. |
| G33S | Below left "A" pillar. |
| G34P | Below right "A" pillar. |
| G34S | Below right "A" pillar. |
| G35 | Behind connector bracket, below left "A" pillar. |
| G36 (Convertible) | Between secondary "B" pillar & soft top control module. See Figure. |
| G37P | Below right "A" pillar, above G34. |
| G38 | On transmission tunnel, between seats. |
| G39 (Convertible) | Below left rear speaker. See Figure. |
