Component Location Graphics

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

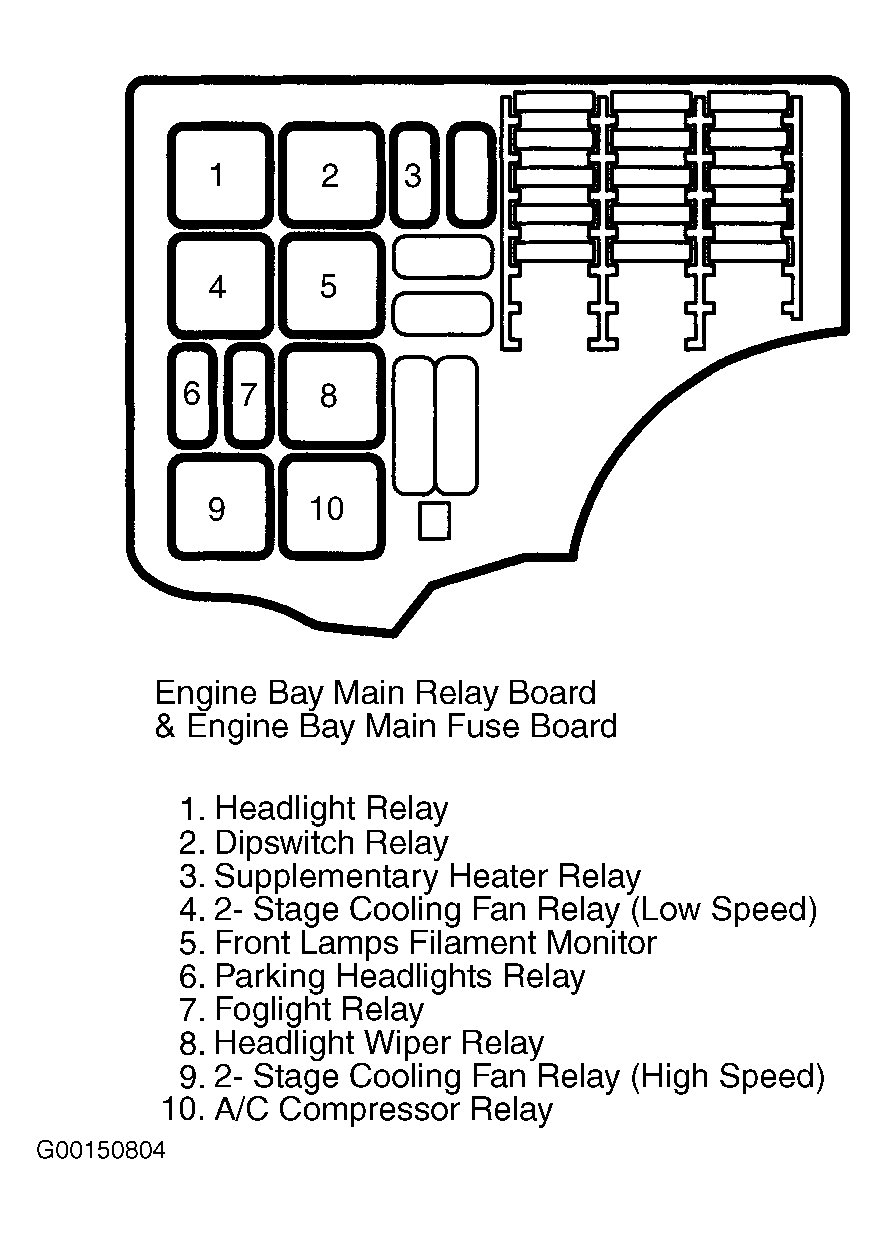

Fig 1: Engine Bay Main Relay Board & Engine Bay Main Fuse Board

Courtesy of SAAB-SCANIA OF AMERICA, INC.

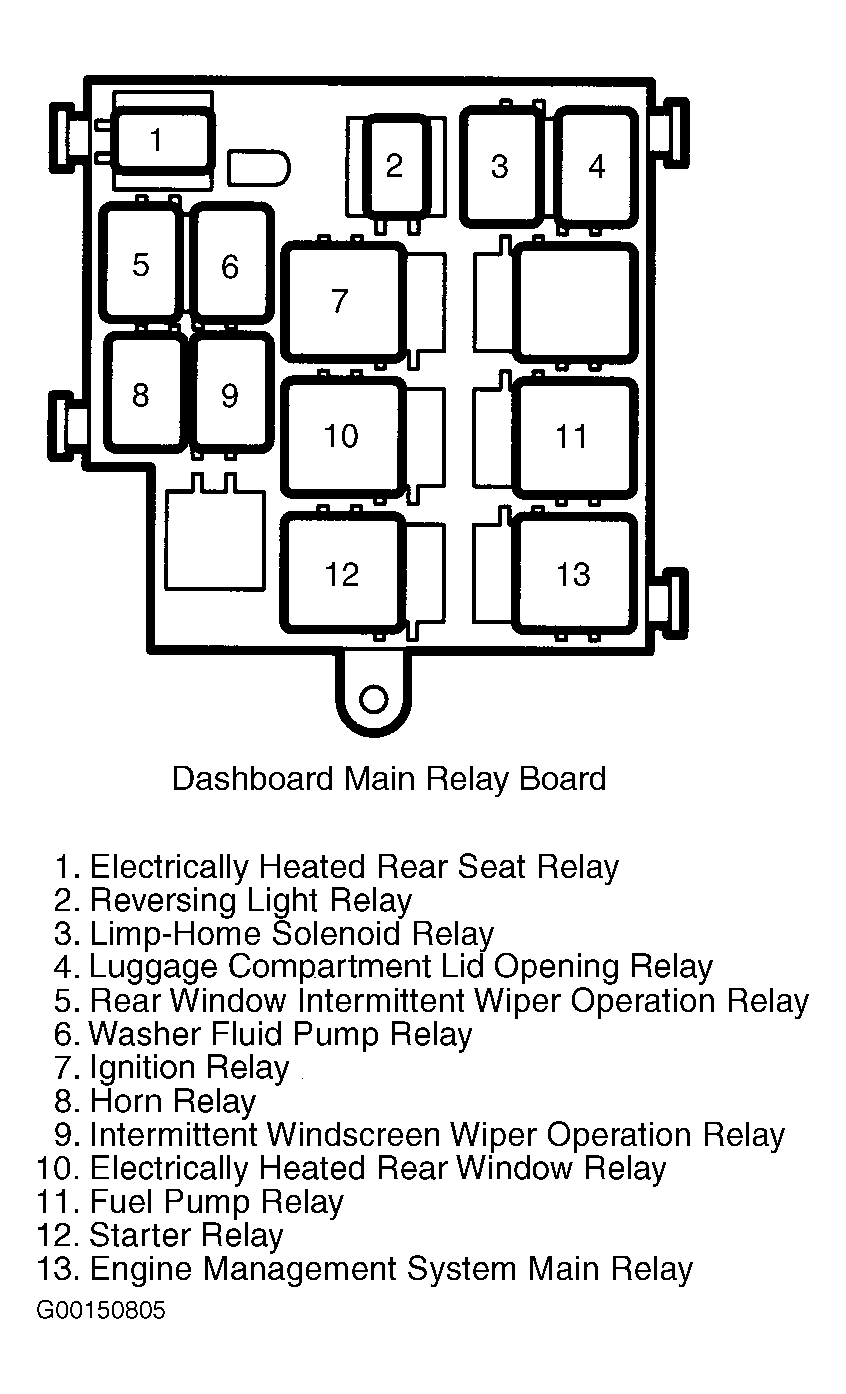

Fig 2: Dashboard Main Relay Board

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 3: Vehicle Overview

Courtesy of SAAB-SCANIA OF AMERICA, INC.
