Diagnostic procedure

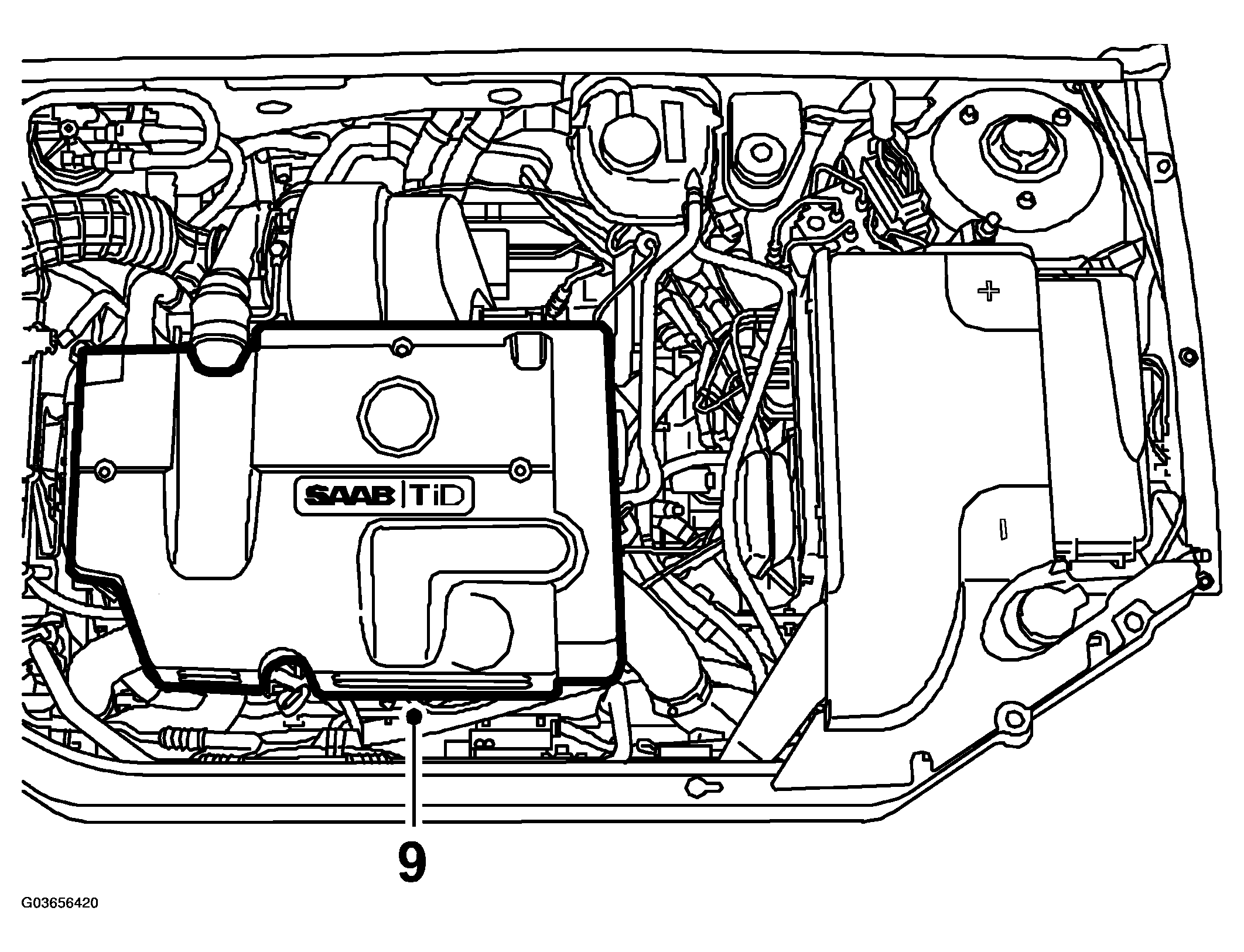

- Remove the upper engine cover.

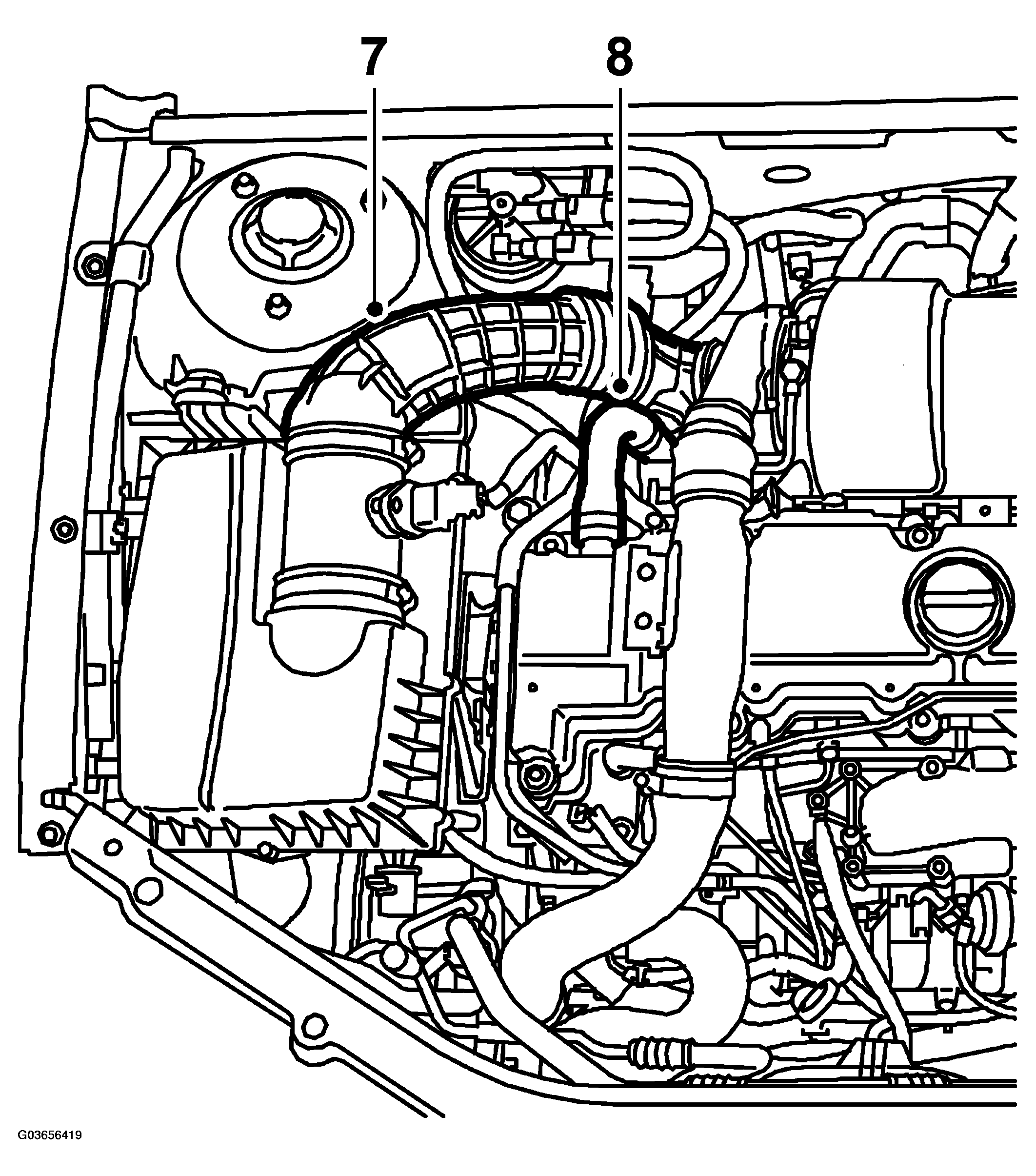

- Detach the crankcase ventilation hose clamp at the rear section of the camshaft cover using 30 07 739 HOSE PINCH-OFF PLIERS and block the hose with a suitable plug, "O SLASH" 25mm.
IMPORTANT: Do not plug the hole in the camshaft cover. The air that leaks past the pistons down in the crankshaft during test pressurizing must be evacuated through this hole.
- Undo the intake hose by the mass air flow sensor. Fit the plug from kit 83 95 659 in the hose and then connect the pressure regulator to an external compressed air outlet.IMPORTANT: Close the pressure regulator before connecting it to the air pressure outlet.
- Connect Tech 2, set the ignition key to the "ON" position and select "Read values" for the engine type in question. Scroll on through the list until "Charge pressure sensor" in "V" can be seen.IMPORTANT: When pressure increases, DTCs P0106 and P1106 will be generated due to the difference between boost pressure and atmospheric pressure. When the DTCs are generated "Boost pressure" will indicate 101 kPa, which is the default value. Boost pressure must therefore be read off directly from the voltage signal.
- Read off the voltage from the charge pressure sensor using Tech 2 and pressurize the intake system by carefully turning the pressure regulator until a maximum of 2.5V is reached.

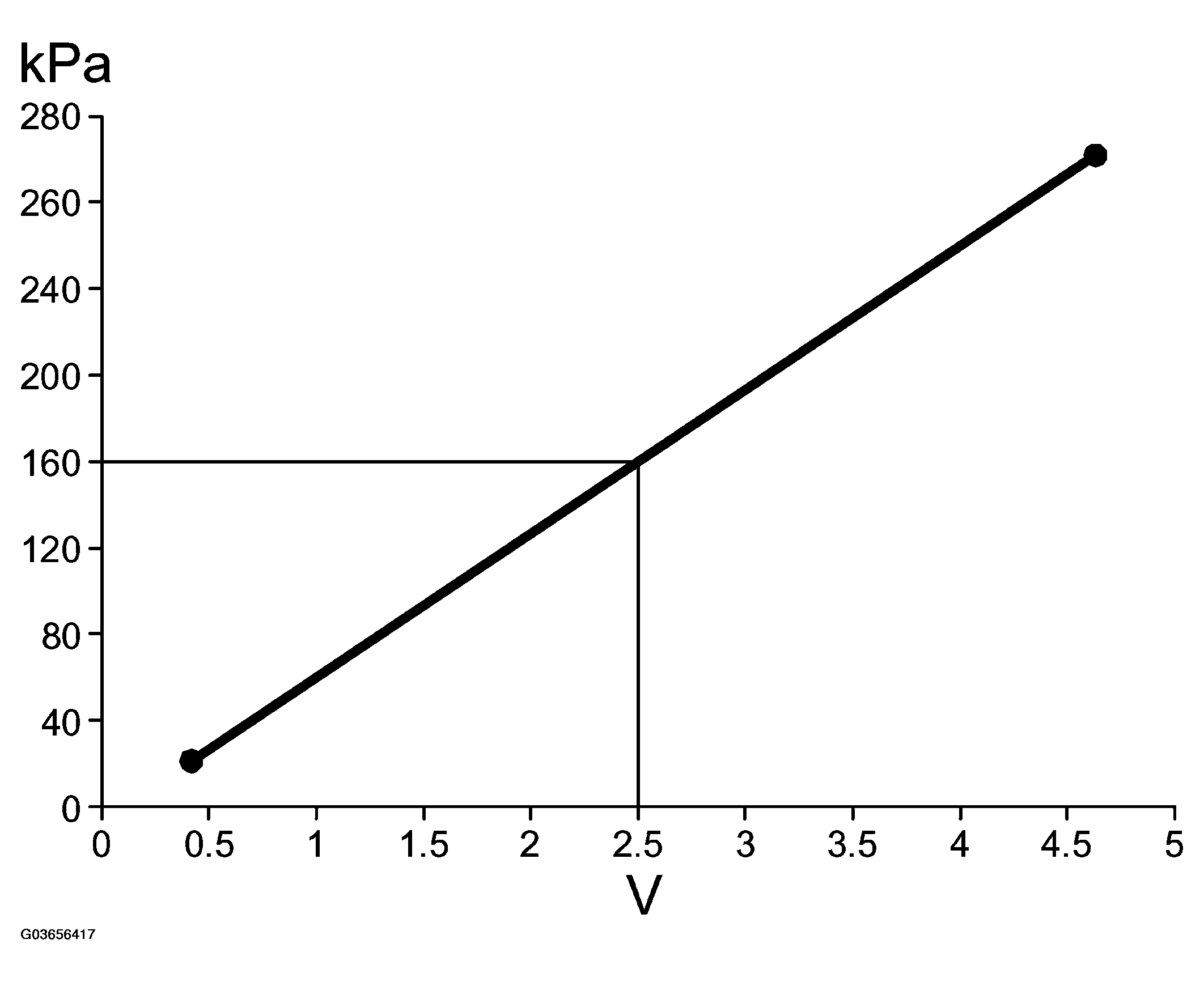

1.6 V corresponds to approx. 100 kPa (atmospheric pressure)
2.5 V corresponds to approx. 160 kPa (60 kPa overpressure)
- The whole intake system is pressurized in this way and leaks can be located using leakage spray or soapy water which foams around the leak. Check all components, hoses and connections and rectify any leaks.

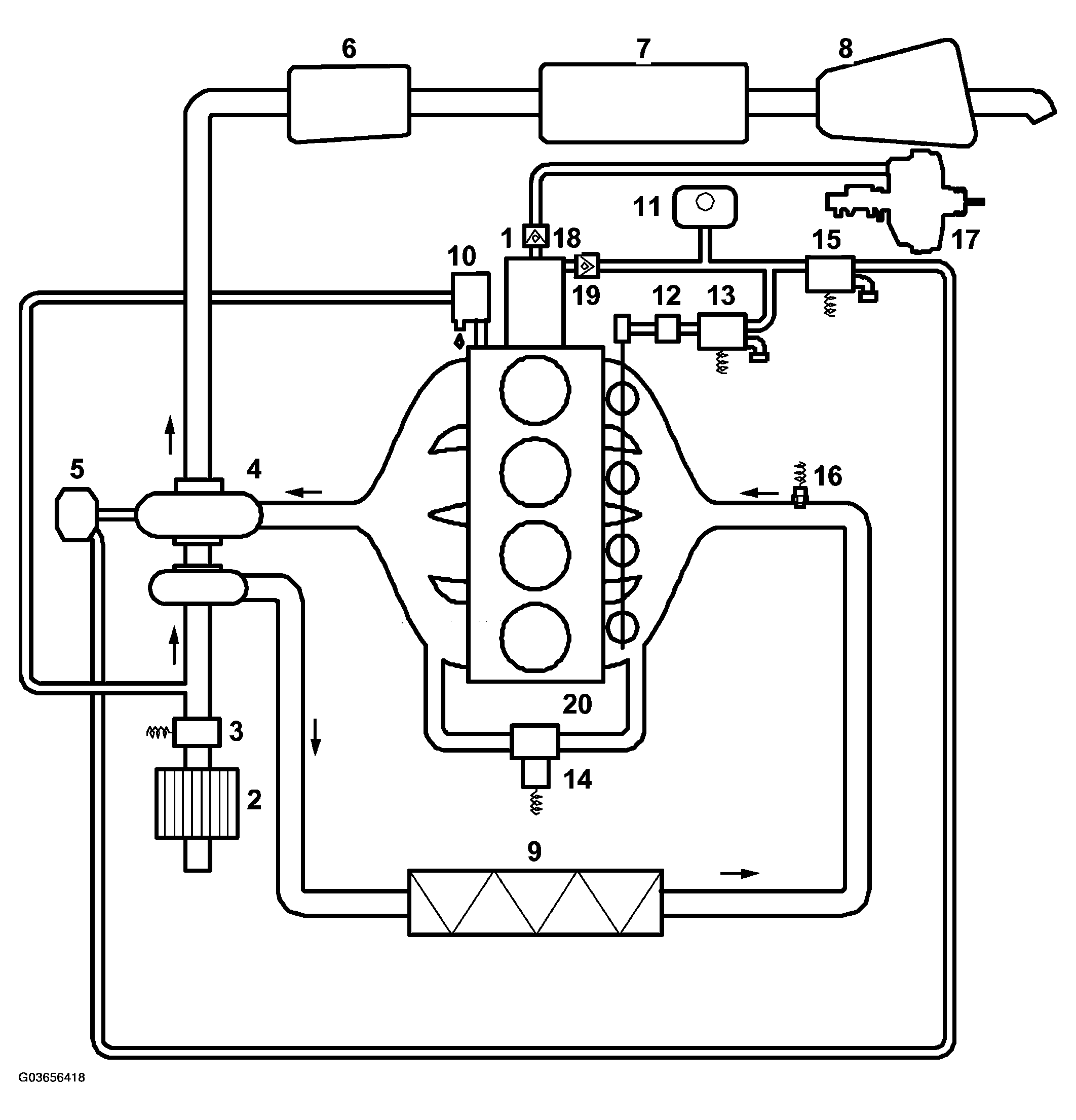

- 6.1. Resonator
- 6.2. Filter element
- 6.3. Mass air flow sensor
- 6.4. Turbocharger
- 6.5. Wastegate
- 6.6. Three way catalytic converter
- 6.7. Middle silencer
- 6.8. Rear silencer
- 6.9. Charge air cooler
- 6.10. Oil trap for crankcase ventilation (integrated in engine)
- 6.11. Vacuum pump
- 6.12. Swirl throttle regulator
- 6.13. Solenoid valve, swirl throttle
- 6.14. EGR valve
- 6.15. Charge air control valve
- 6.16. Pressure sensor
- 6.17. Brake servo
- 6.18. Check valve
- 6.19. Check valve
- 6.20. MotorIMPORTANT: Only large leaks affect the function of the engine management system. When leakage spray or soap water is used, even small leaks will be detected. Several small leaks can be grouped together and viewed as one large leak.
Individual tiny leaks need not be remedied.
- Remove the plug from the intake hose. Connect the hose to the mass air flow sensor.
- Remove the plug from the crankcase ventilation hose. Connect the hose to the camshaft cover.
- Fit the upper engine cover.
- Read the control module software version using Tech 2. If there is a later software version from the manufacturer then this must be programmed into the control module.
- If the problems are not resolved then complete the following checklist and contact the importer's technical support. Have the checklist ready.
- Disconnect Tech 2
