To remove

  1. Undo the hose clip on the turbocharger delivery pipe and the vacuum hose to the valve.

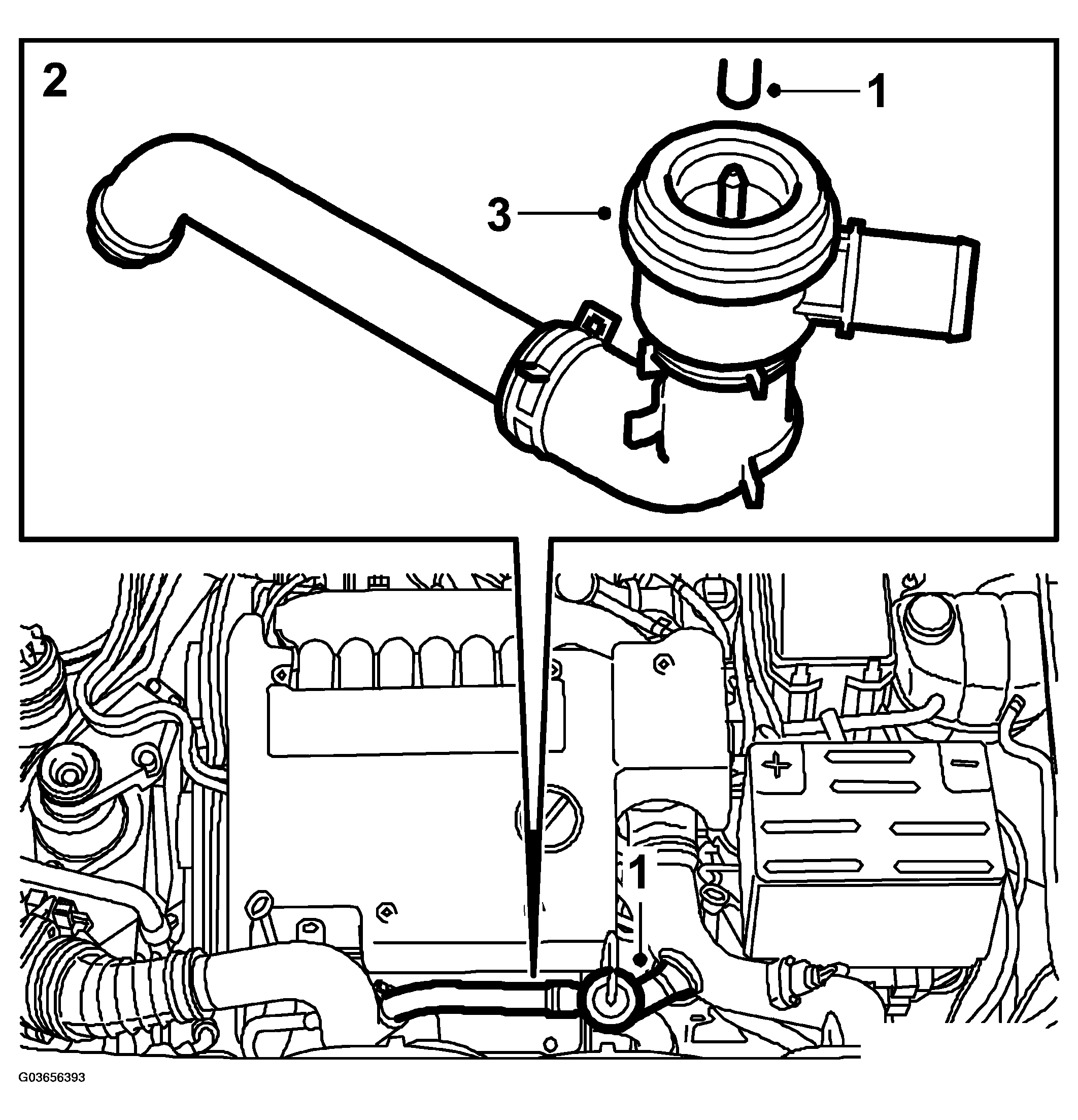

    Fig 1: Illustration For Steps 1-3
    G03656393Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the bypass pipe with valve.
  3. Remove the bypass valve.
