To fit

  1. Fit the bypass valve to the bypass pipe.

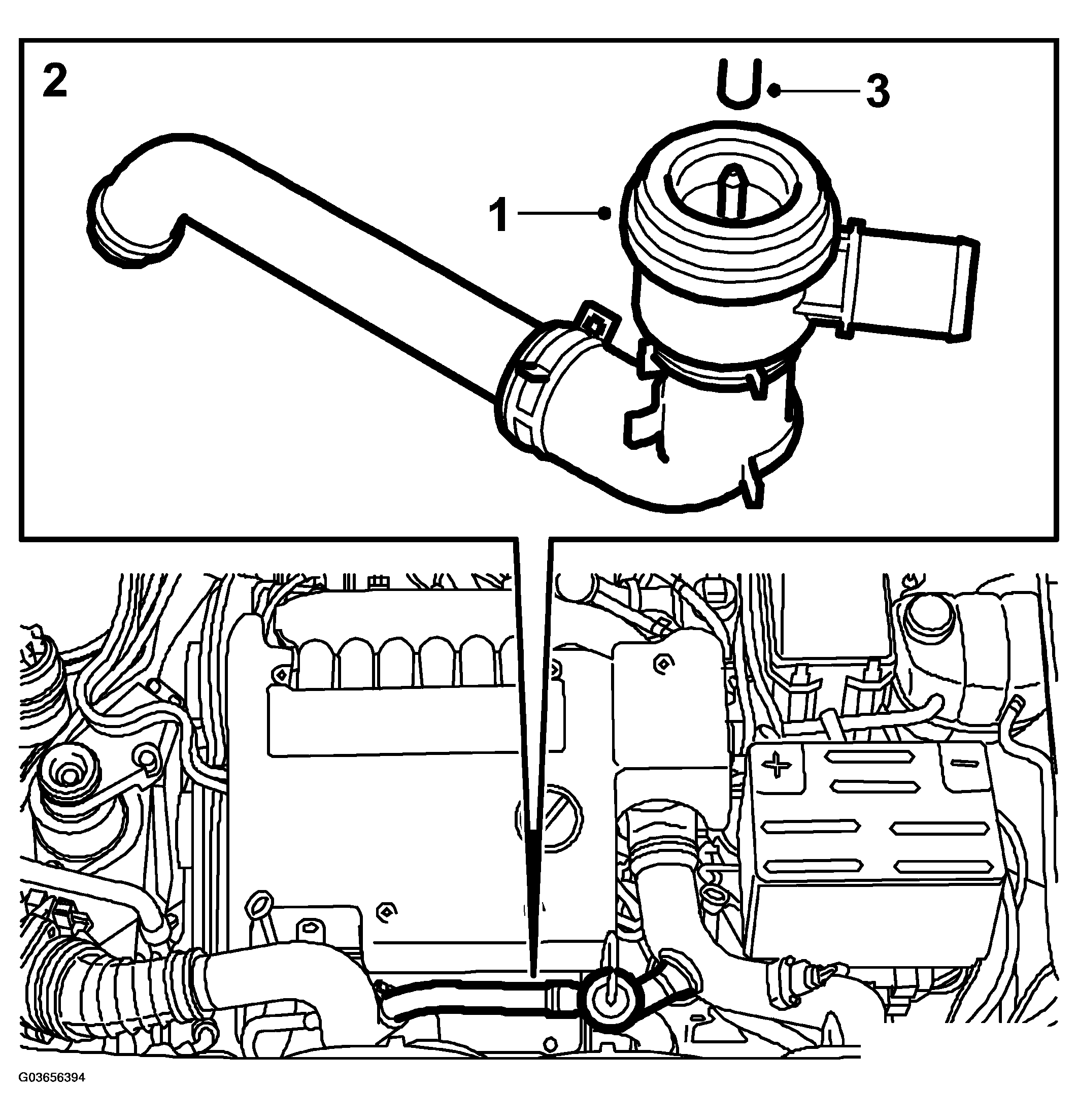

    Fig 1: Illustration For Steps 1-3
    G03656394Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the bypass pipe with valve to the turbo delivery pipe.
  3. Fit the vacuum hose to the bypass valve.
