To remove

  1. Remove the engine cover.

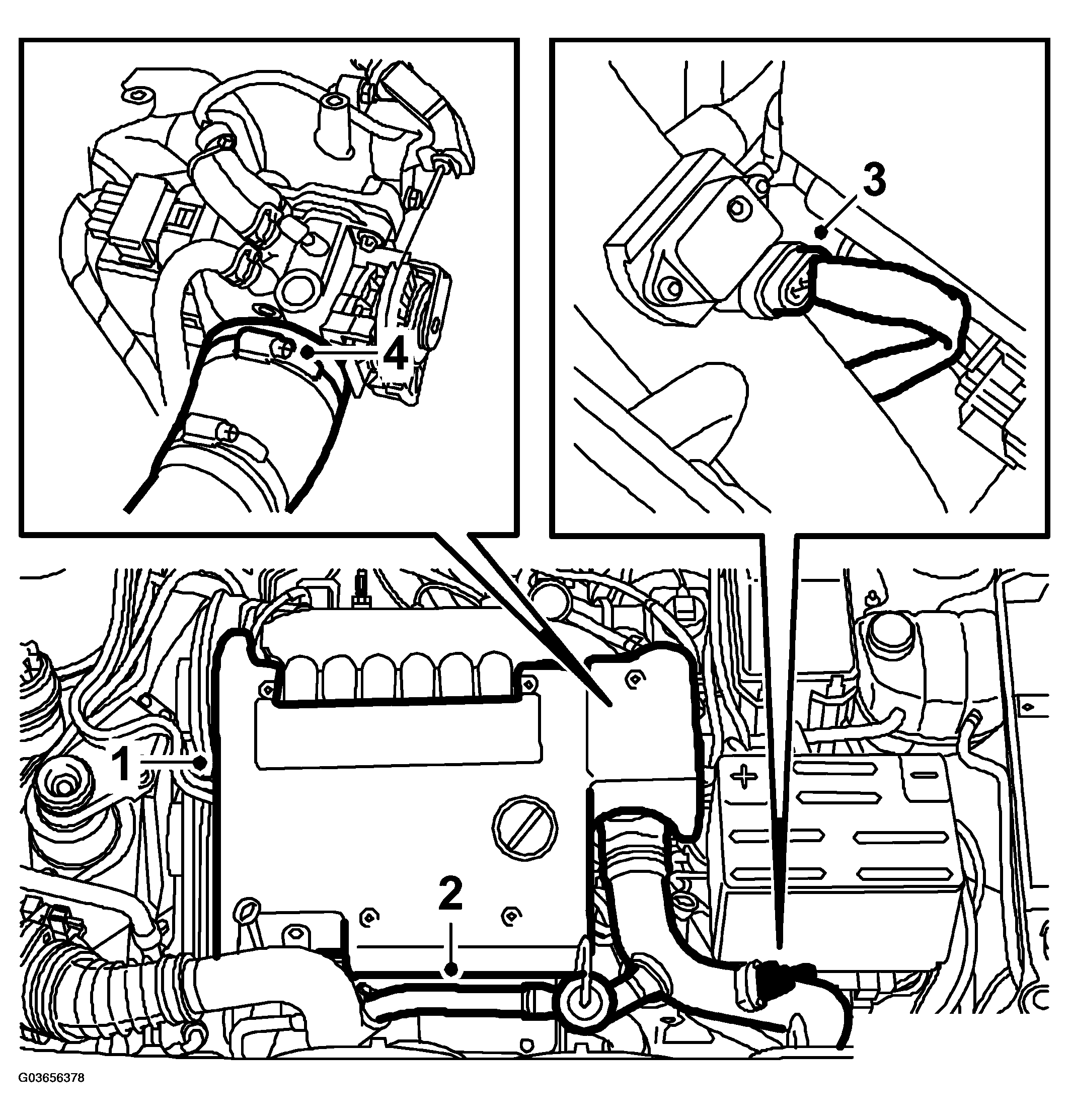

    Fig 1: Illustration For Steps 2, 3
    G03656378Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the bypass pipe with valve, keeping the O-ring from the connection to the turbocharger inlet pipe.
  3. Unplug the connector from the temperature/pressure sensor on the charge air pipe.
  4. Detach the charge air pipe from the throttle body.
  5. Raise the car.
  6. Detach the charge air pipe from the charge air cooler leaving the clip to hang on the cooler.

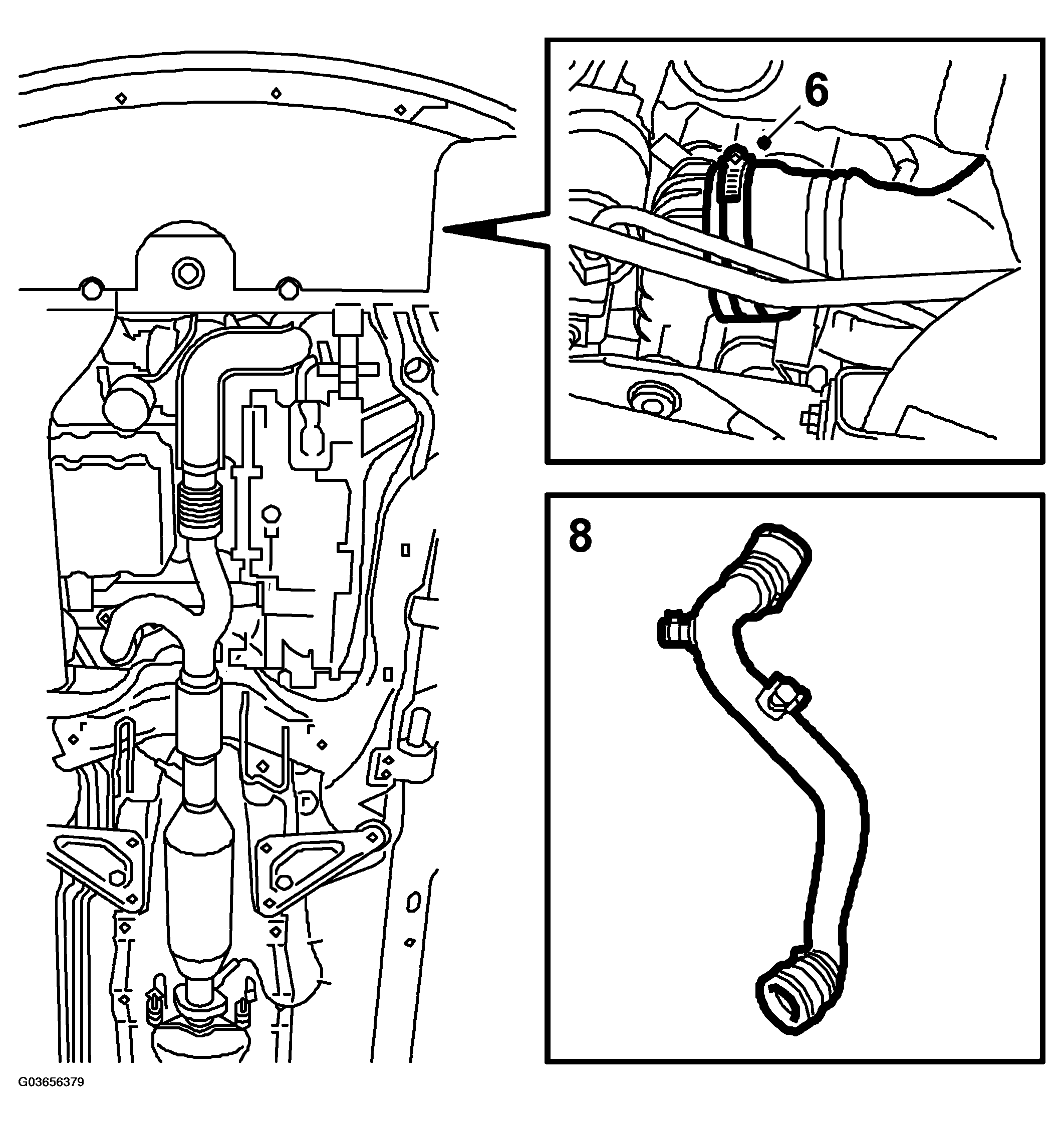

    Fig 2: Illustration For Steps 6, 8
    G03656379Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Lower the car to the floor.
  8. Remove the charge air pipe.
