To fit

  1. Fit the charge air pipe.

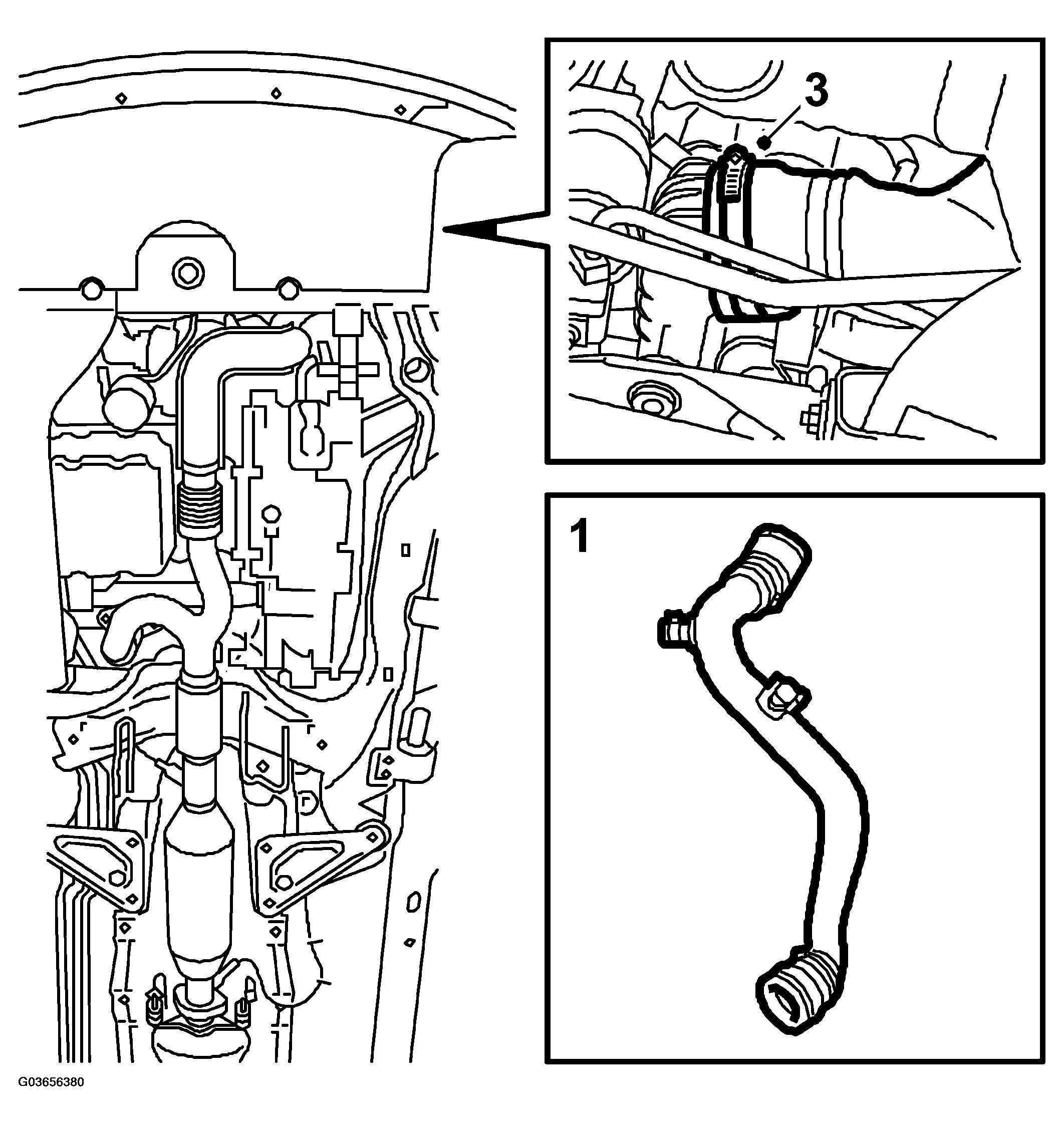

    Fig 1: Illustration For Steps 1, 3
    G03656380Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Raise the car.
  3. Fit the charge air pipe to the charge air cooler with the clip.
  4. Lower the car to the floor.
  5. Connect the charge air pipe to the throttle body.

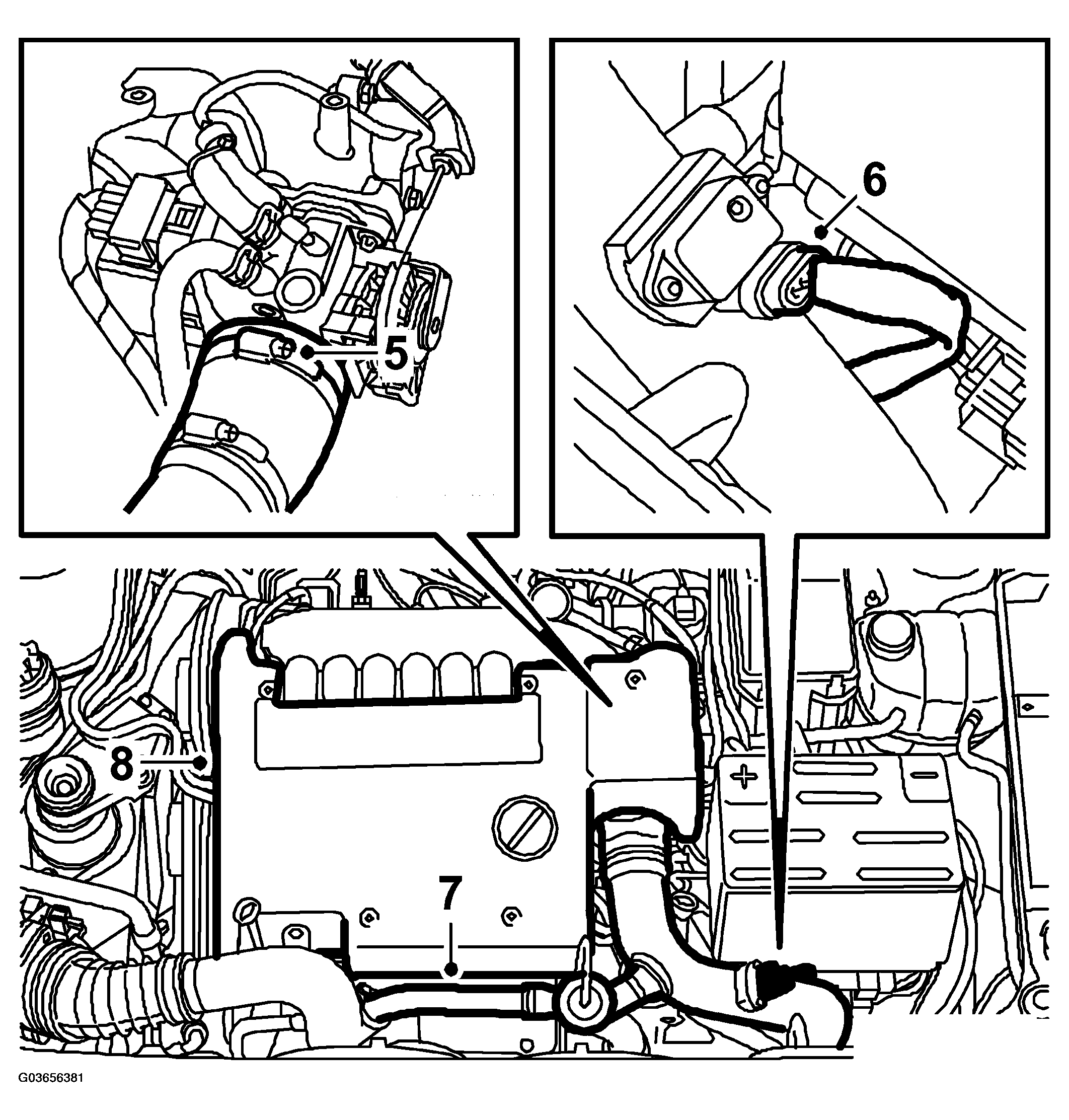

    Fig 2: Illustration For Steps 5-8
    G03656381Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Plug in the connector for the temperature/pressure sensor on the charge air pipe.
  7. Fit the bypass pipe with valve using a new O-ring for the connection to the turbocharger inlet pipe.
  8. Fit the engine cover.
