Steering wheel controls (switches)

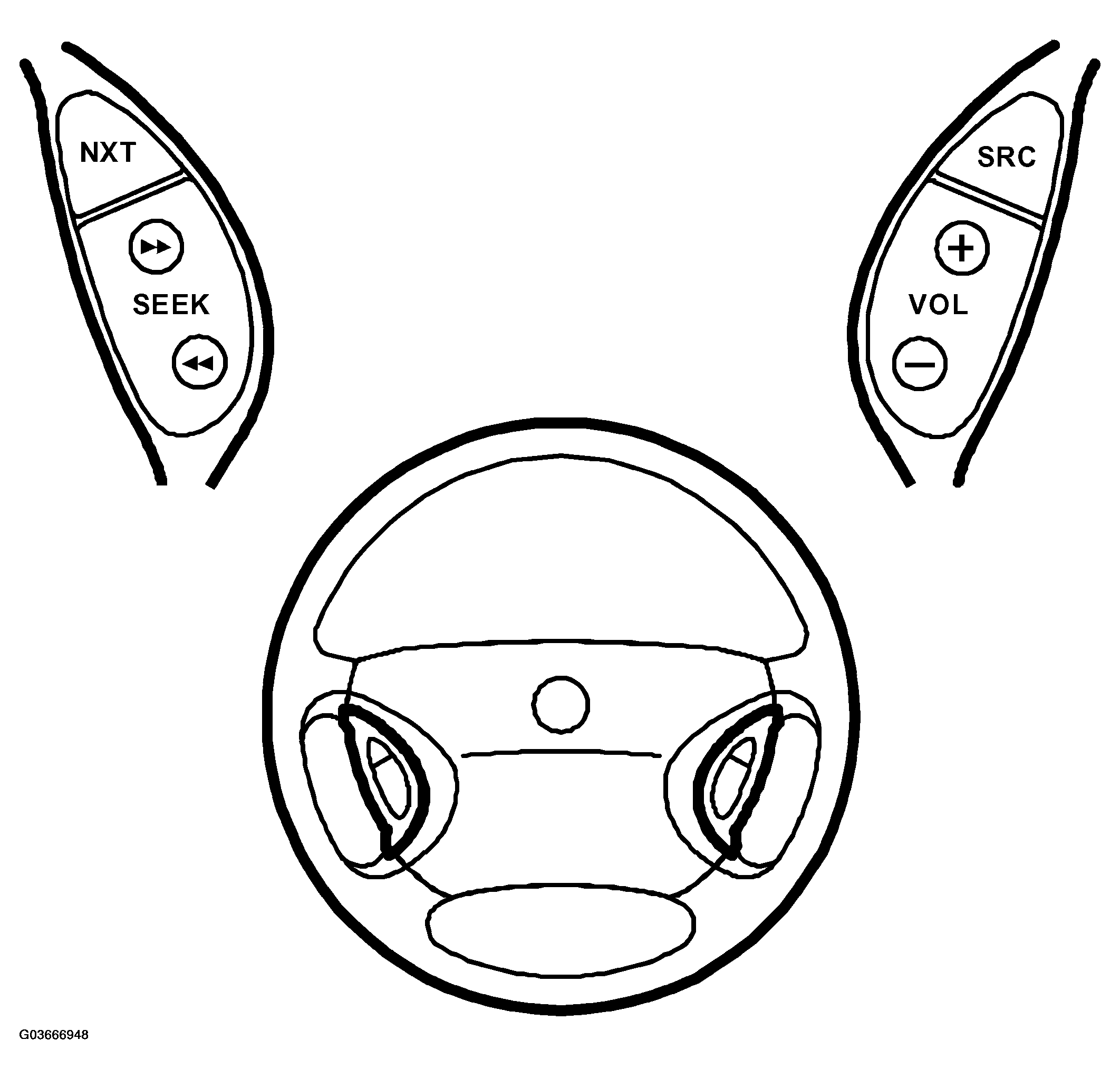

Fig 1: Identifying Steering Wheel Controls (Switches)
G03666948Courtesy of SAAB-SCANIA OF AMERICA, INC.
TECHNICAL DATA

Power supply V 5
Horn ohm 0
VOL - ohm 160
VOL + ohm 242
SRC ohm 347
SEEK ohm 494
<< SEEK ohm 709
NXT ohm 1041
Normal ohm 2511

Tolerance 1%
