ARRIVAL (arrival time): Notes

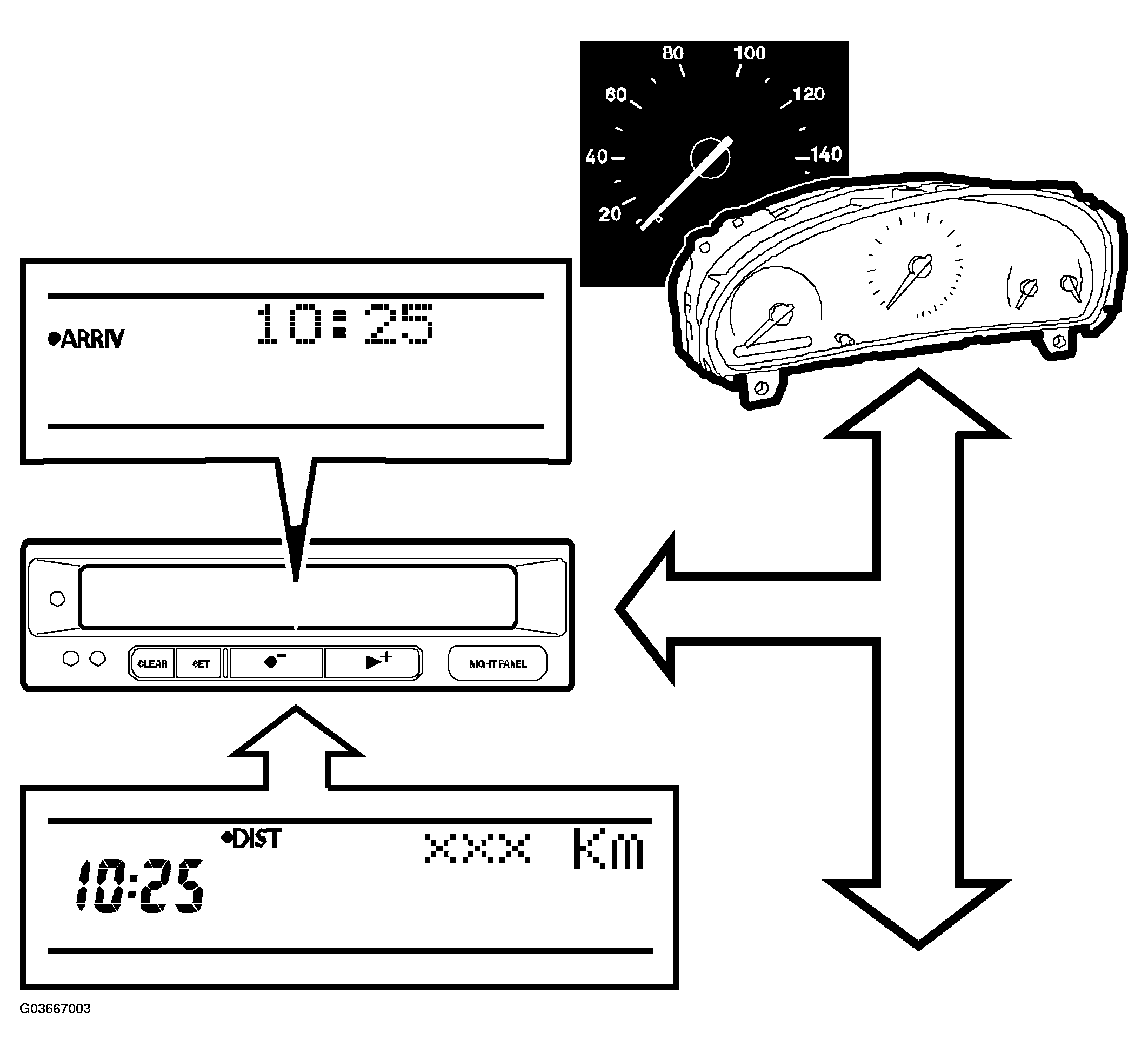

Fig 1: Identifying Trip Computer Functions, SID 2 Arrival (Arrival Time) Display

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The arrival time is calculated from information on:

• Current time (internal SID function)
• Programmed value in DIST.
• Speed, unit km/h, mph (bus information from MIU).

The display range is from the present time up to 23 hours and 59 minutes ahead, updated every second.

When DIST is 0, the current time is shown in the SID display.

Resetting with CLEAR does not affect a programmed/calculated value for arrival time.
