SID 2

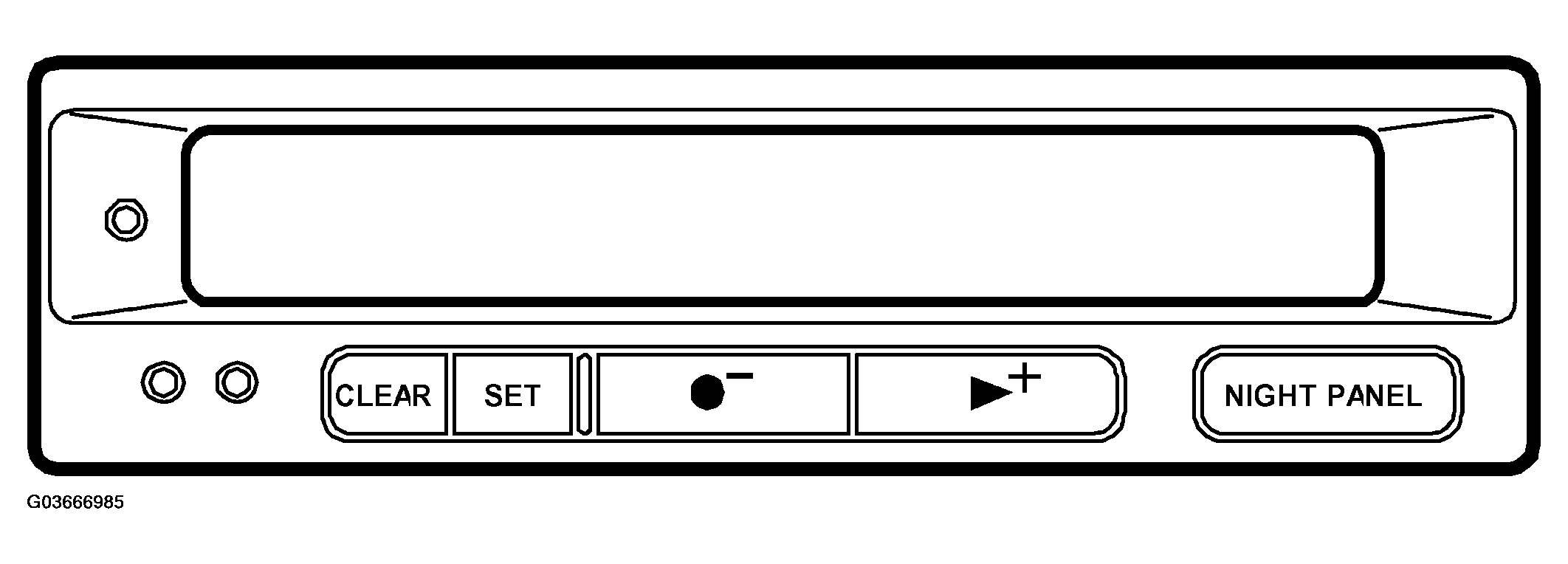

Fig 1: Identifying Function Keys SID 2

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The following function keys are used on SID 2 :

TECHNICAL DATA

Key	Description
O O	To increase/reduce clock setting, enter RDS time.
CLEAR	To clear the display message, zero the memory of the trip computer function and delete any service messages.
SET	To program trip computer functions.
Dot(-)	Scroll "down" and "reduce".
Arrow(+)	Scroll "up" and "increase".
Night panel	Activate/deactivate Night Panel function.

The status of the function keys is sent as bus information.
