Control module power supply: Notes

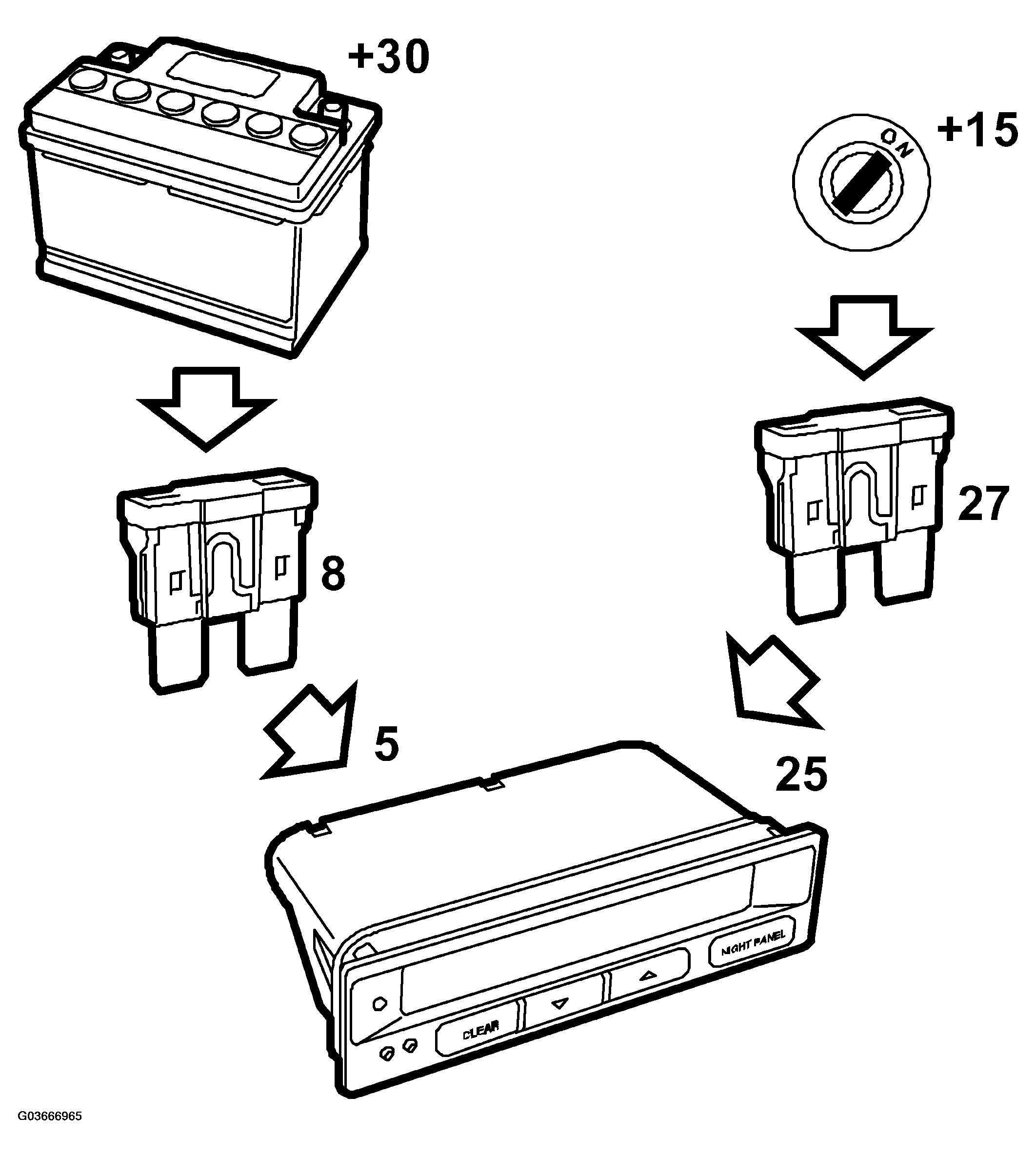

Fig 1: Identifying Control Module Power Supply Components
G03666965Courtesy of SAAB-SCANIA OF AMERICA, INC.

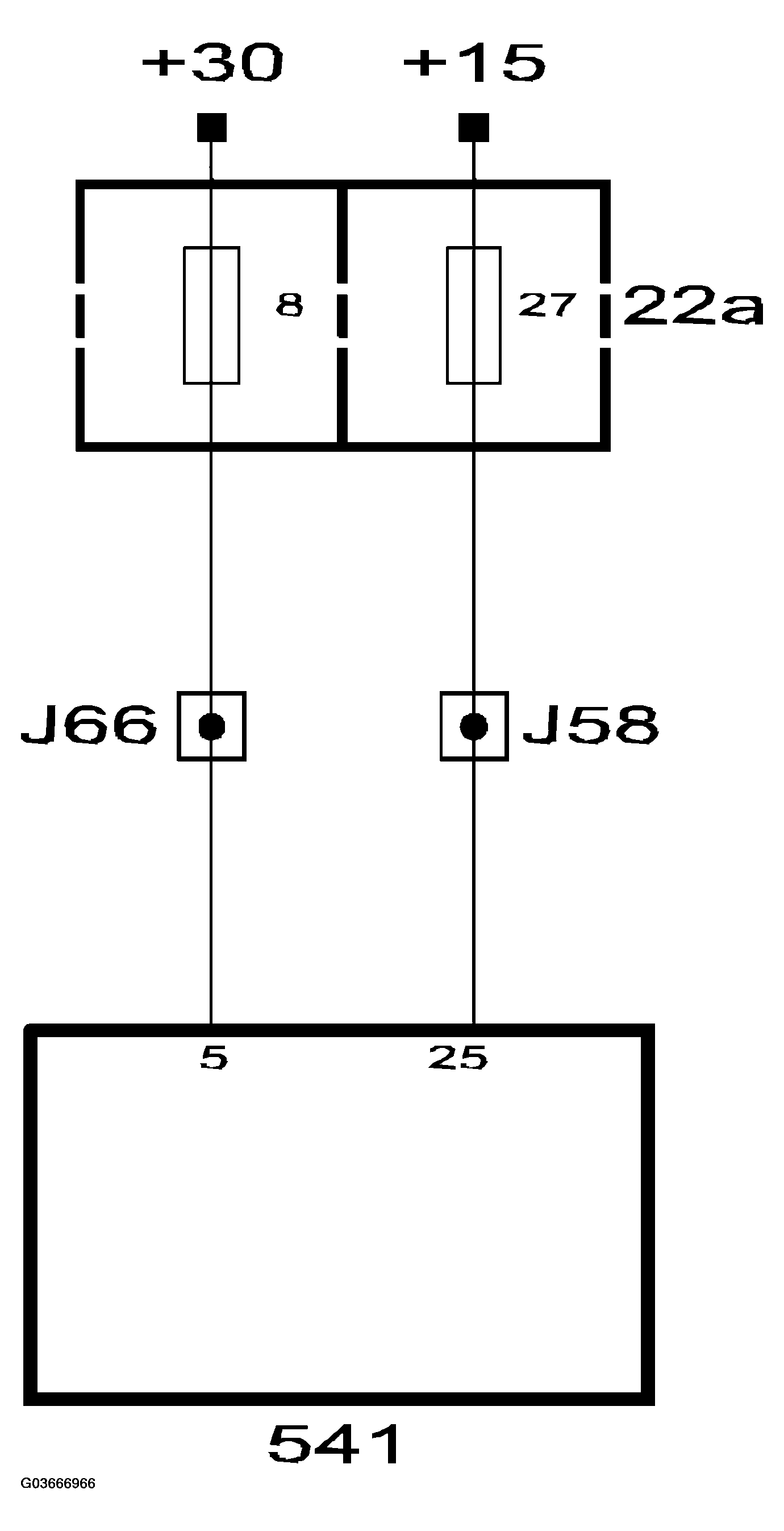

Fig 2: Control Module Power Supply Circuit Diagram
G03666966Courtesy of SAAB-SCANIA OF AMERICA, INC.
