Technical Data: Rheostat

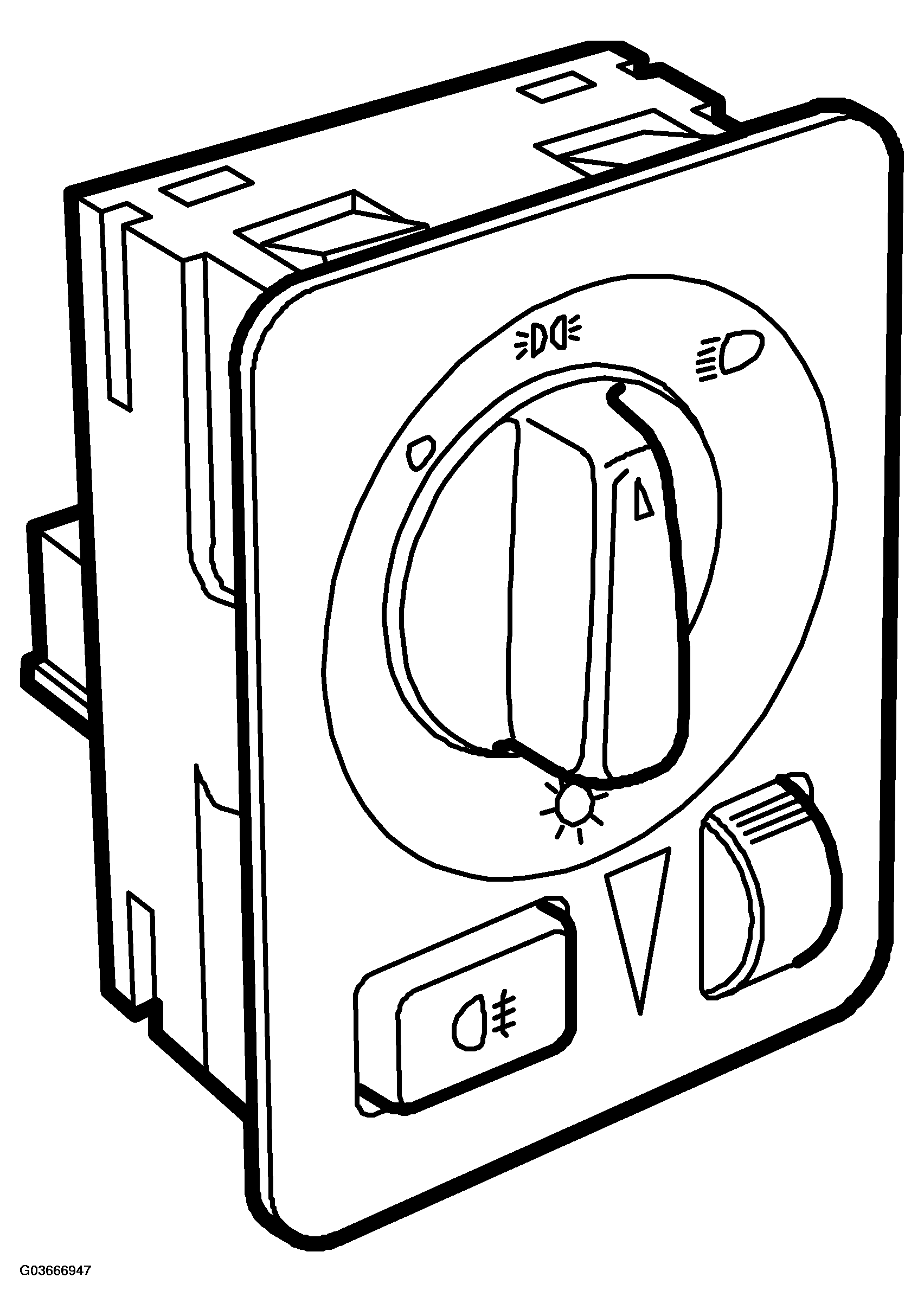

Fig 1: Identifying Rheostat

Courtesy of SAAB-SCANIA OF AMERICA, INC.

TECHNICAL DATA

Location		Integrated into the main lights switch.
Power supply	V	5 (from SID)
Resistance (Rheostat potentiometer)	min, ohm max, ohm	< 5.5 1000 +/- 25%
