Horn relay
Horn relay

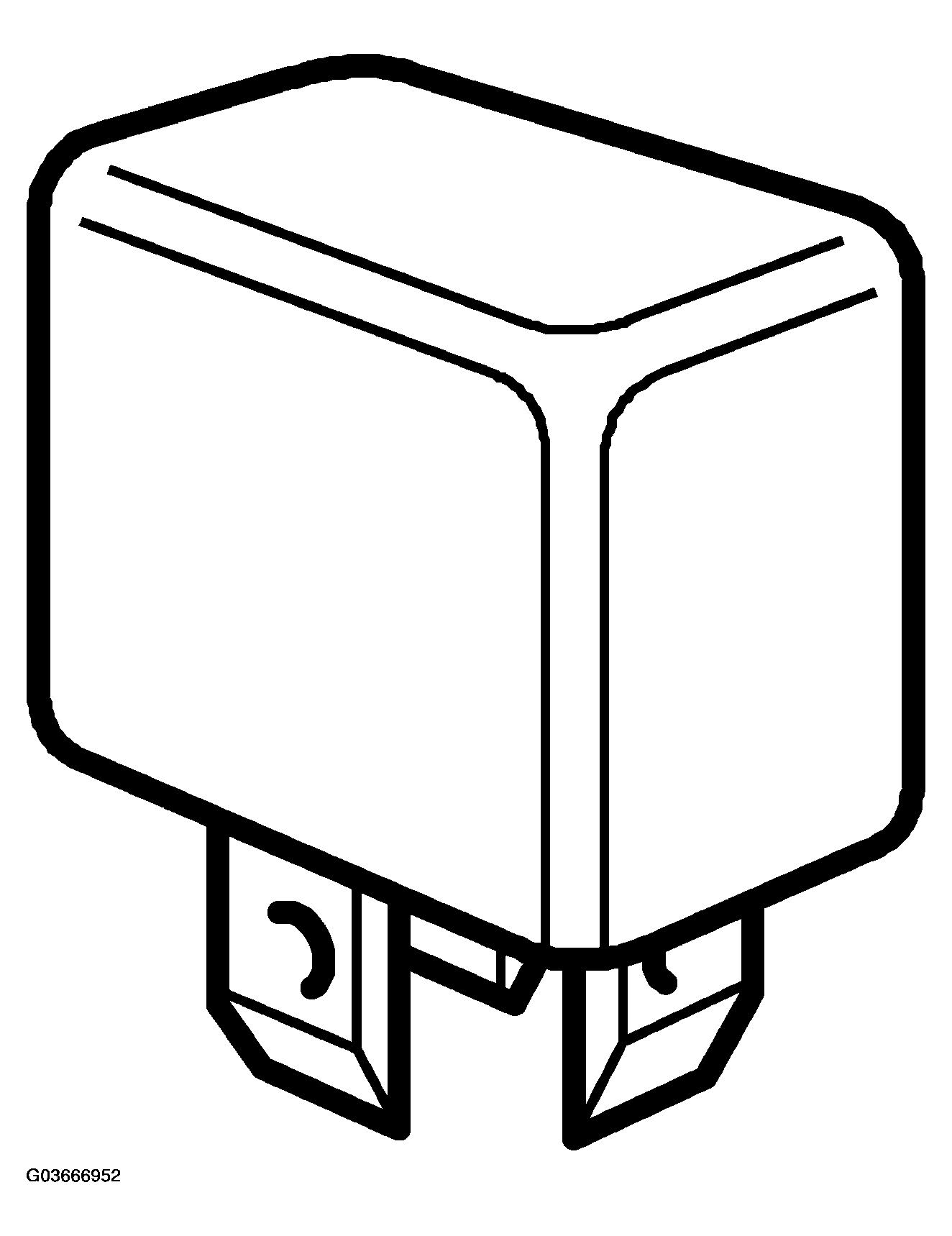

Fig 1: Identifying Horn Relay
Courtesy of SAAB-SCANIA OF AMERICA, INC.
TECHNICAL DATA
Location
Main relay board in the engine bay.
Resistance of winding
ohm
75 10%
Nominal operating current
V
7 2
