Control module

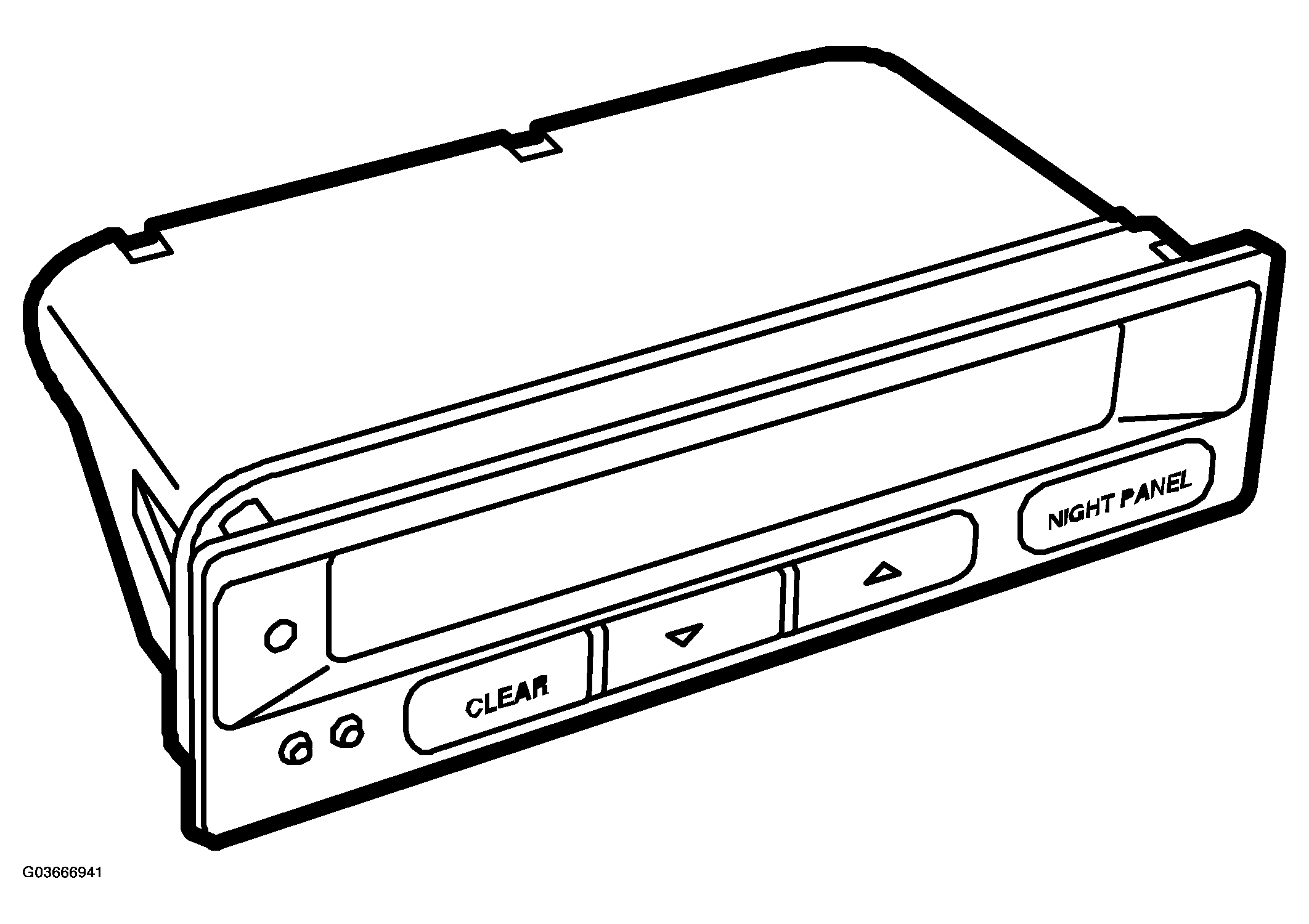

Fig 1: Identifying Control Module

Courtesy of SAAB-SCANIA OF AMERICA, INC.

TECHNICAL DATA

Location		In the center of the dashboard
Number of pins		25
Power supply (+30 circuit)	pin No.	5
Power supply (+15 circuit)	pin No.	25
Ground	pin No.	13
Instrument bus, I-BUS (+)	pin No.	12
Instrument bus, I-BUS (-)	pin No.	24
