DTC B2371: Steering wheel controls. Open circuit/Faulty: Notes

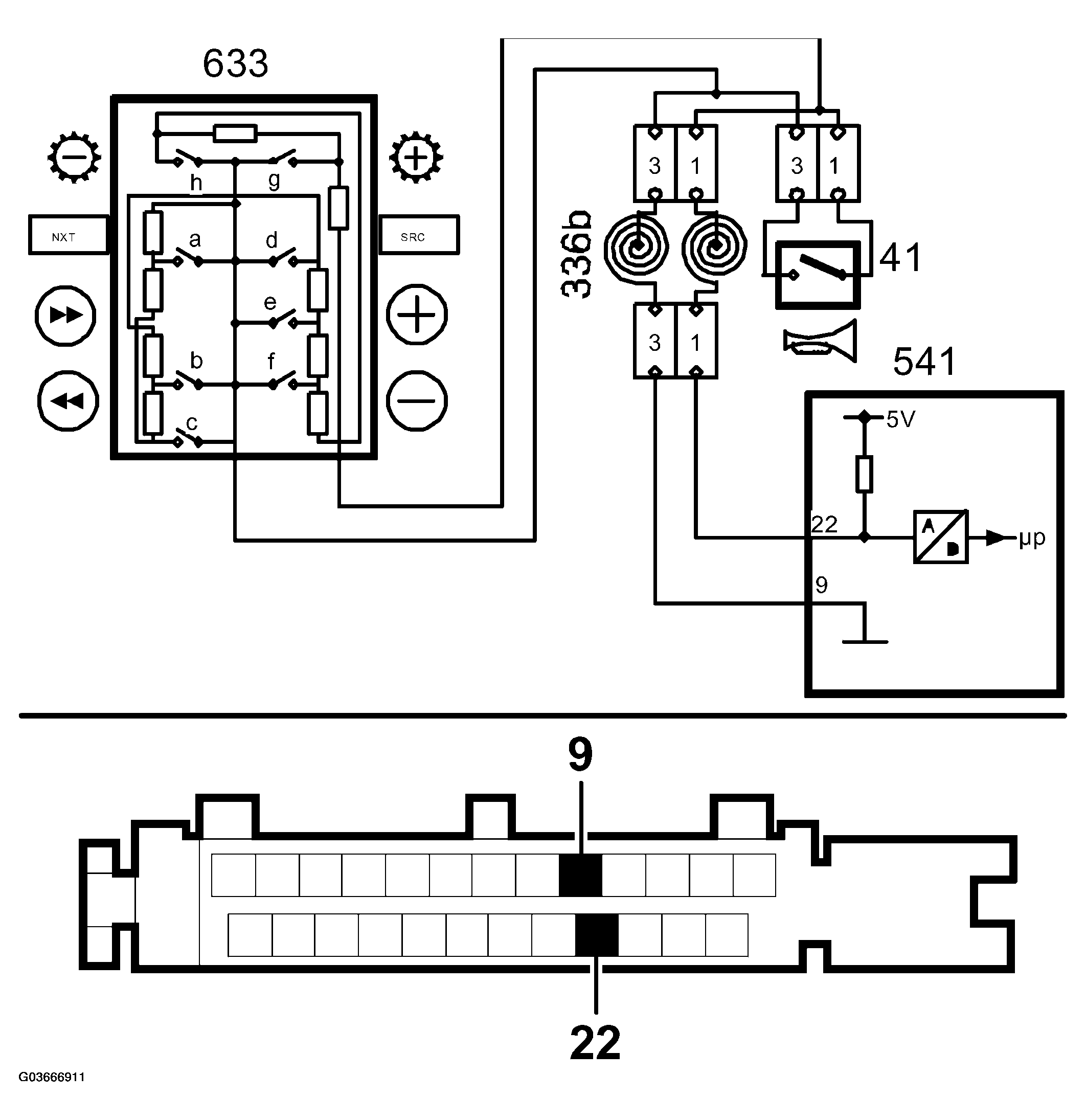

Fig 1: Steering Wheel Controls Open Circuit/Faulty Fault Diagnosis Circuit Diagram

G03666911

Courtesy of SAAB-SCANIA OF AMERICA, INC.
