DTC B2366: Parking heater relay. Short circuit B+: Notes

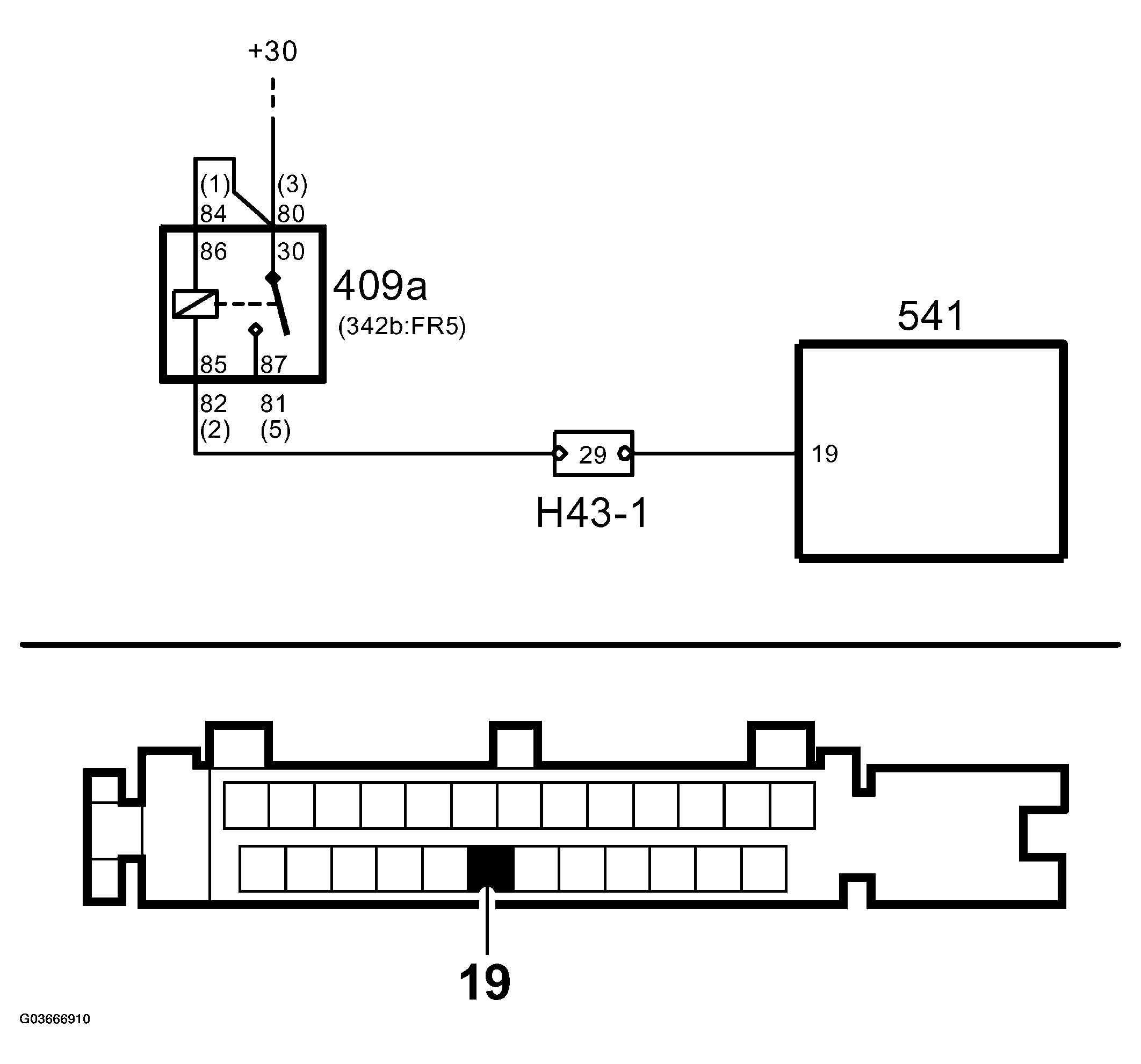

Fig 1: Parking Heater Relay Short Circuit B+ Fault Diagnosis Circuit Diagram

G03666910

Courtesy of SAAB-SCANIA OF AMERICA, INC.
