To remove

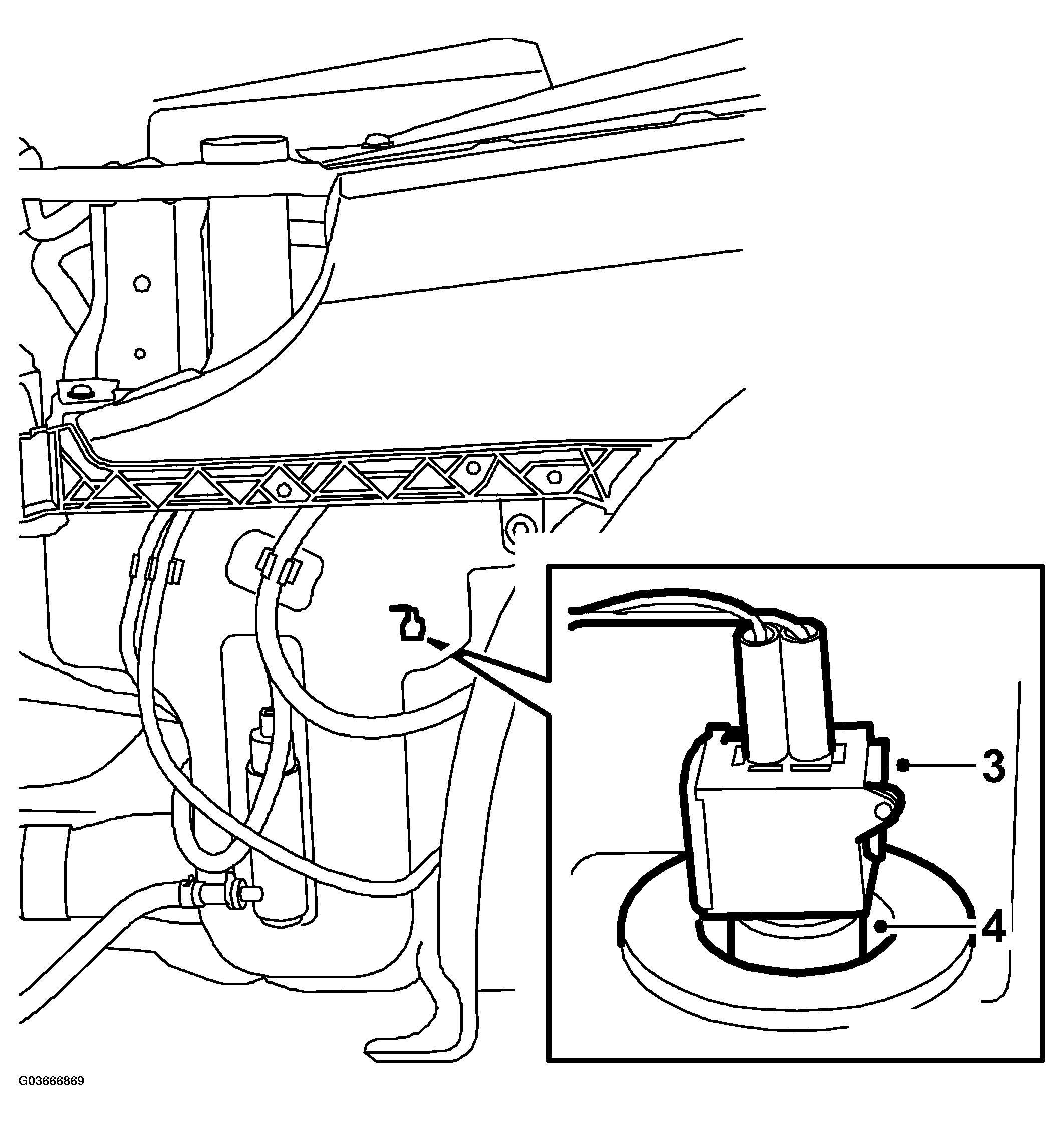

Fig 1: Illustration For Step 3
G03666869Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Empty the washer fluid reservoir.
  2. Raise the car.
  3. Unplug the level sensor connector.
  4. Withdraw the level sensor from the washer fluid reservoir.
