Home >> Saab >> 2003 >> 9-5 Arc, 4D Sedan >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> SAAB Information Display (SID) >> Adjustment - Replacement >> Rheostat >> To remove

To remove

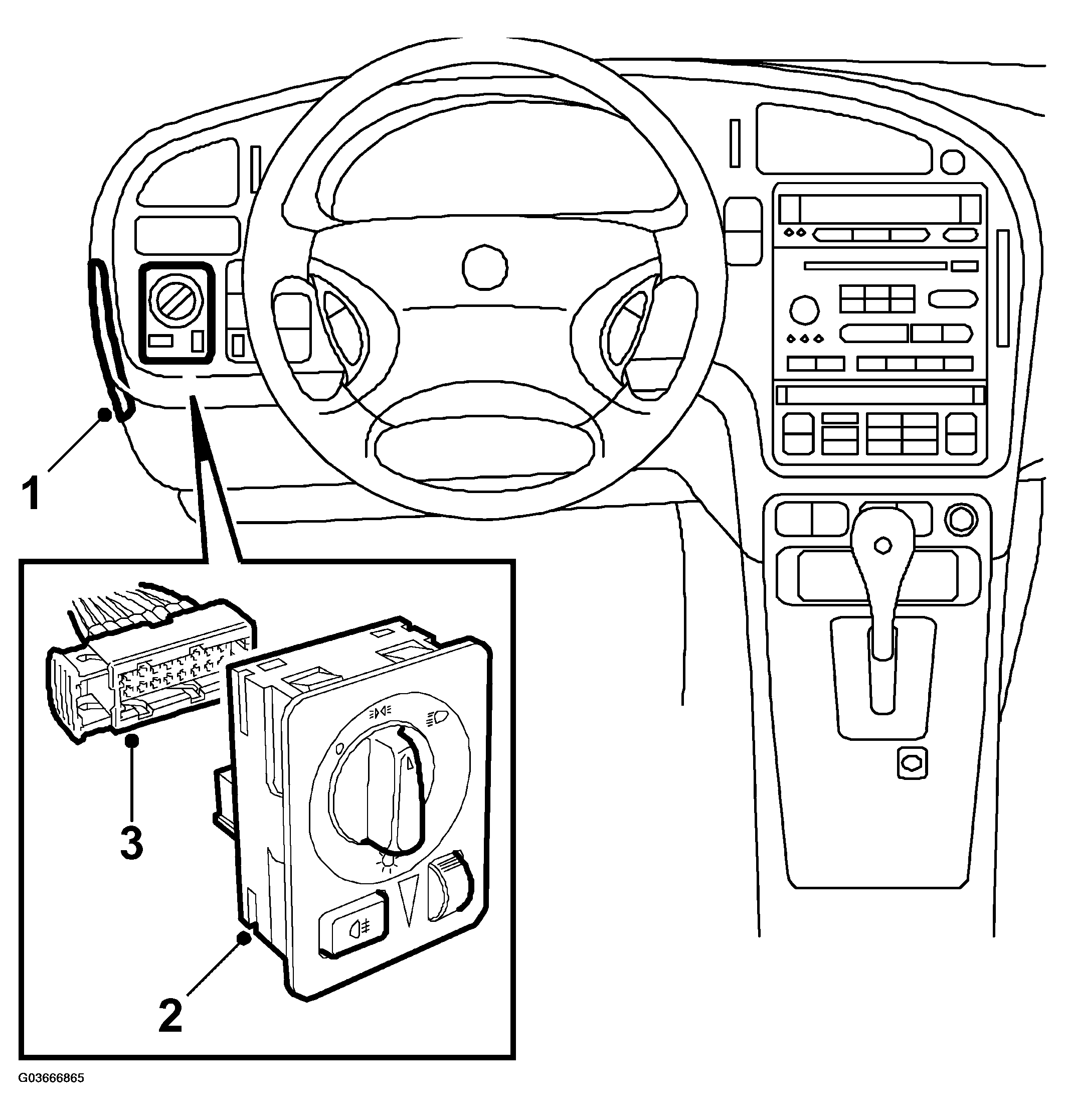

Fig 1: Illustration For Step 1 To 3
G03666865Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Open the fuse cover.
  2. Press out the lights switch.
  3. Unplug the connector from the lights switch.
