Cruise indicator lamp: Diagnostics

The function has its own diagnostics in the sending system.

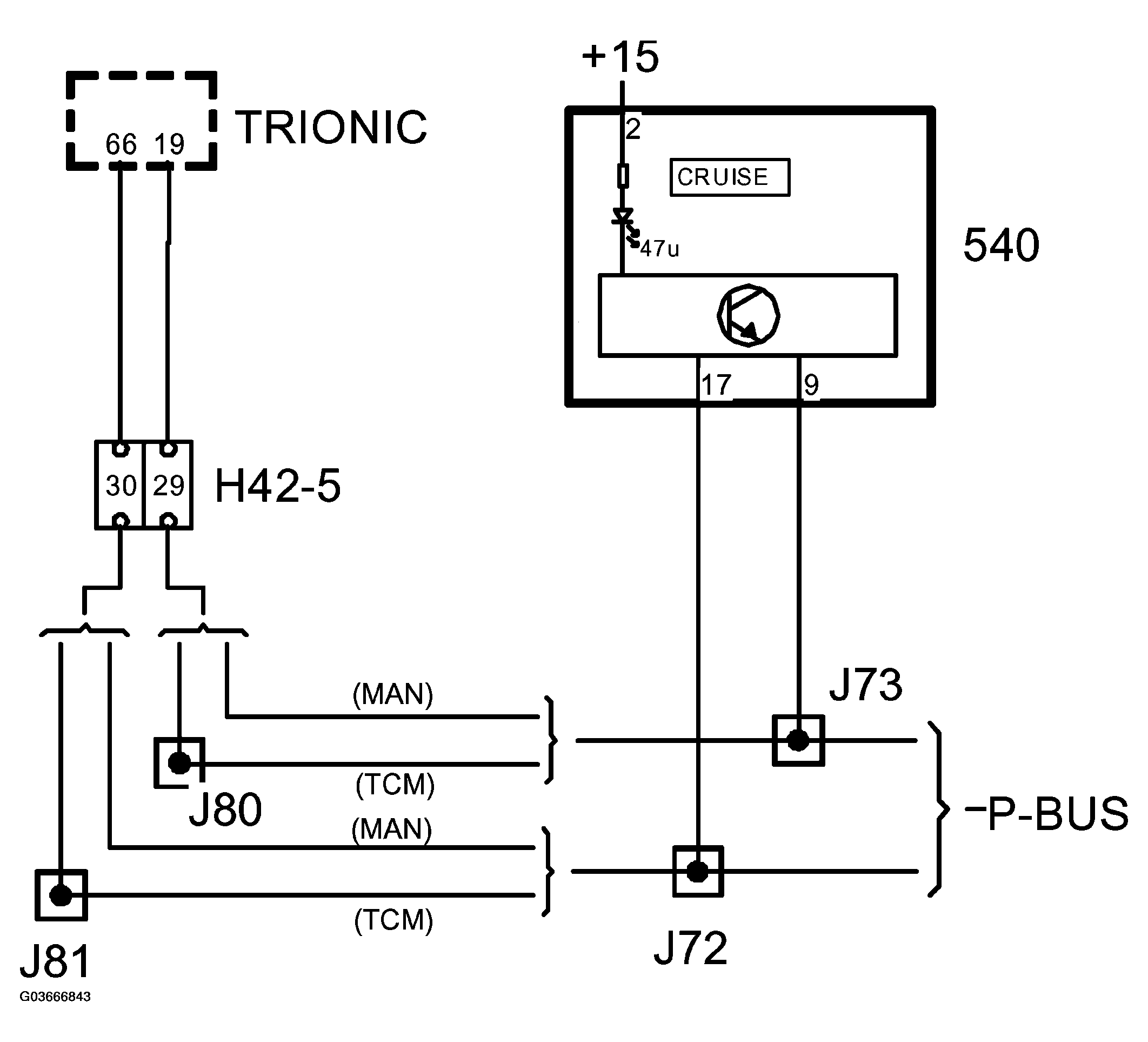

Fig 1: Identifying Cruise Indicator Lamp Communication - Circuit Diagram (1 Of 2)
G03666843Courtesy of SAAB-SCANIA OF AMERICA, INC.

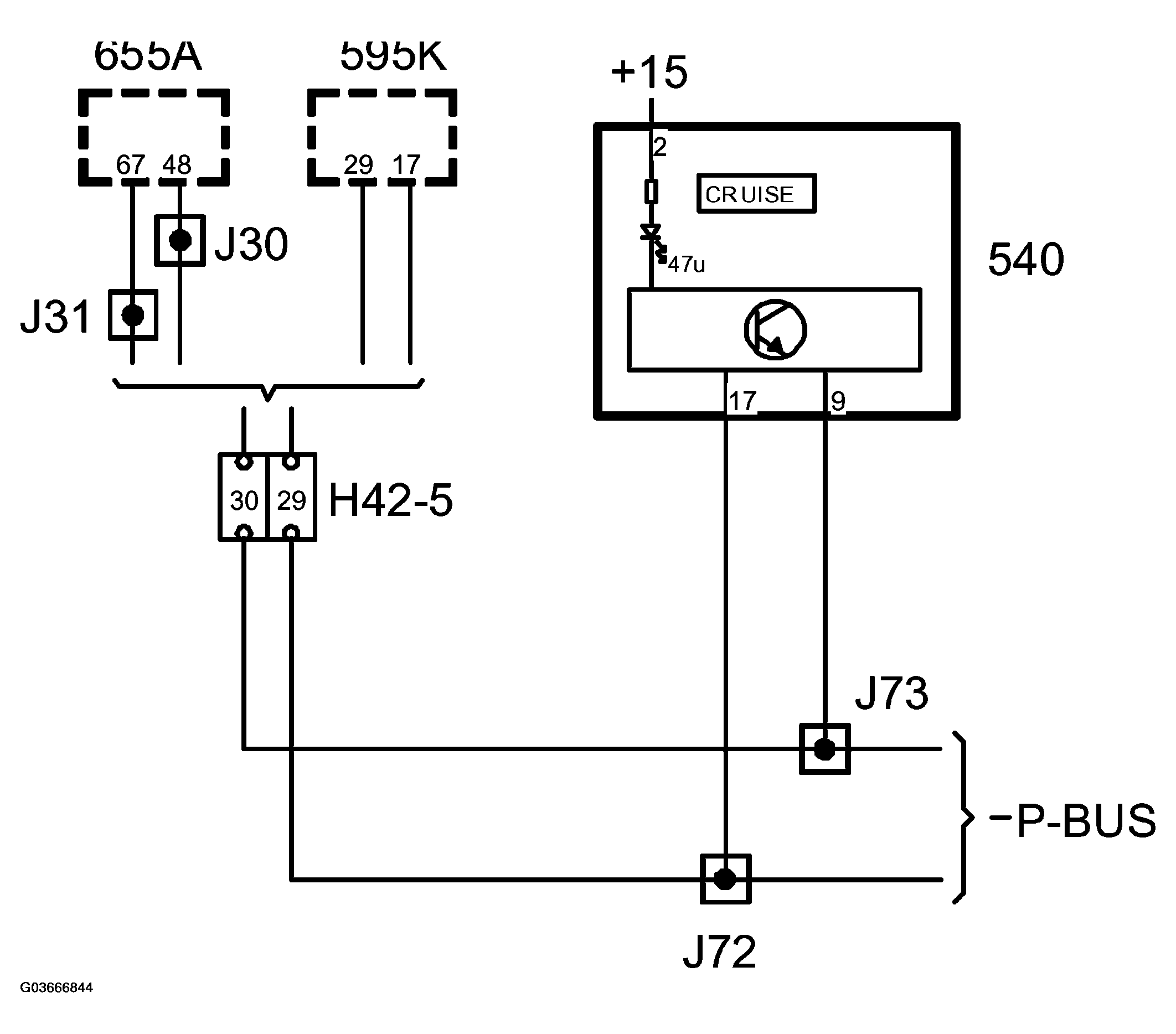

Fig 2: Identifying Cruise Indicator Lamp Communication - Circuit Diagram (2 Of 2)
G03666844Courtesy of SAAB-SCANIA OF AMERICA, INC.
