System overview

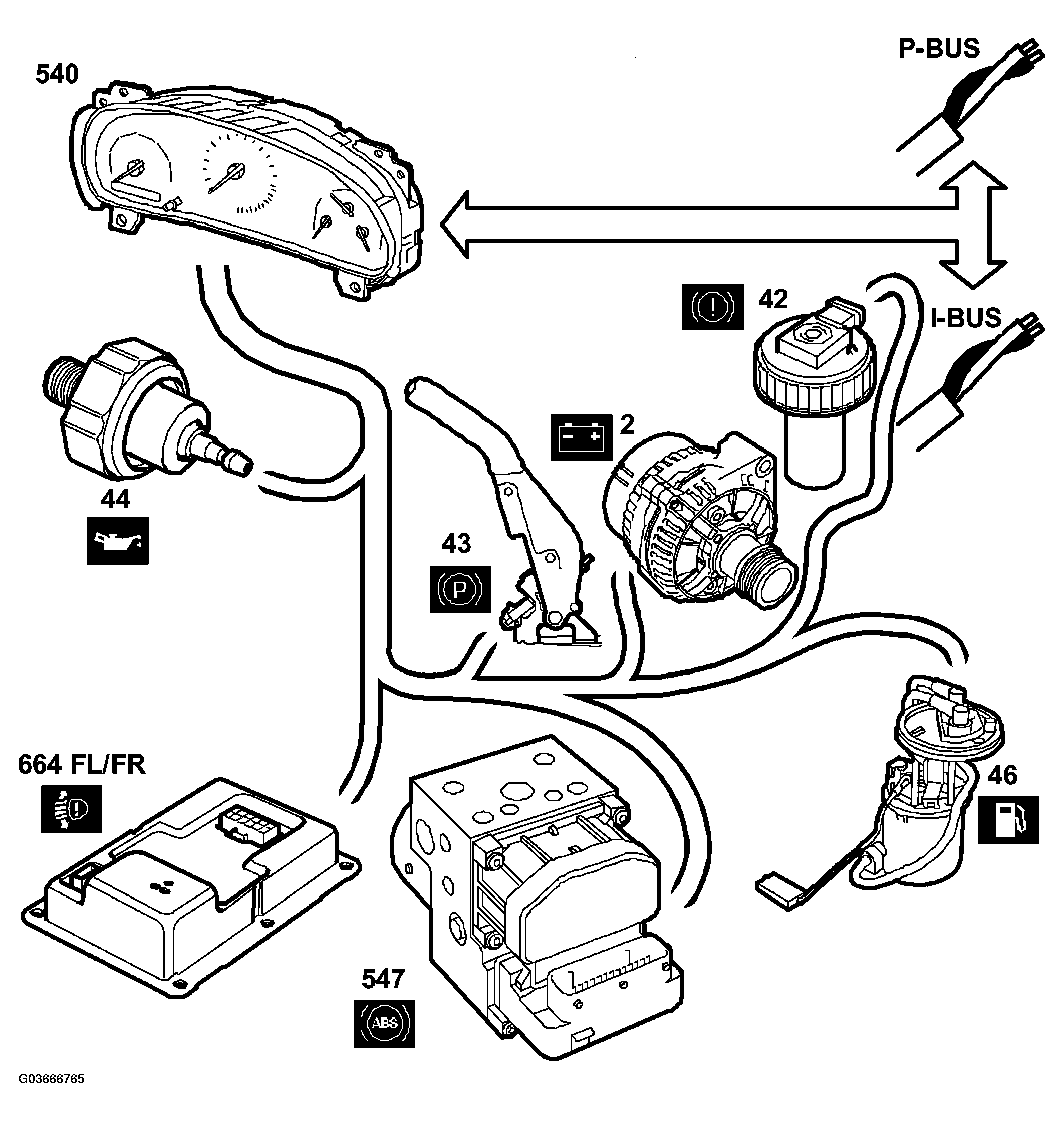

Fig 1: Identifying System Overview - Instrument Panel

G03666765

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Main instrument unit (540)
Engine oil pressure sensor (44)
Switch, handbrake (43)
Generator (2)
Level switch, brake fluid (42)
Level sensor, fuel (46)
Control module, ABS (547)
Control module, AHL (Automatic Headlamp Levelling) (664 FL/FR)
