Main components

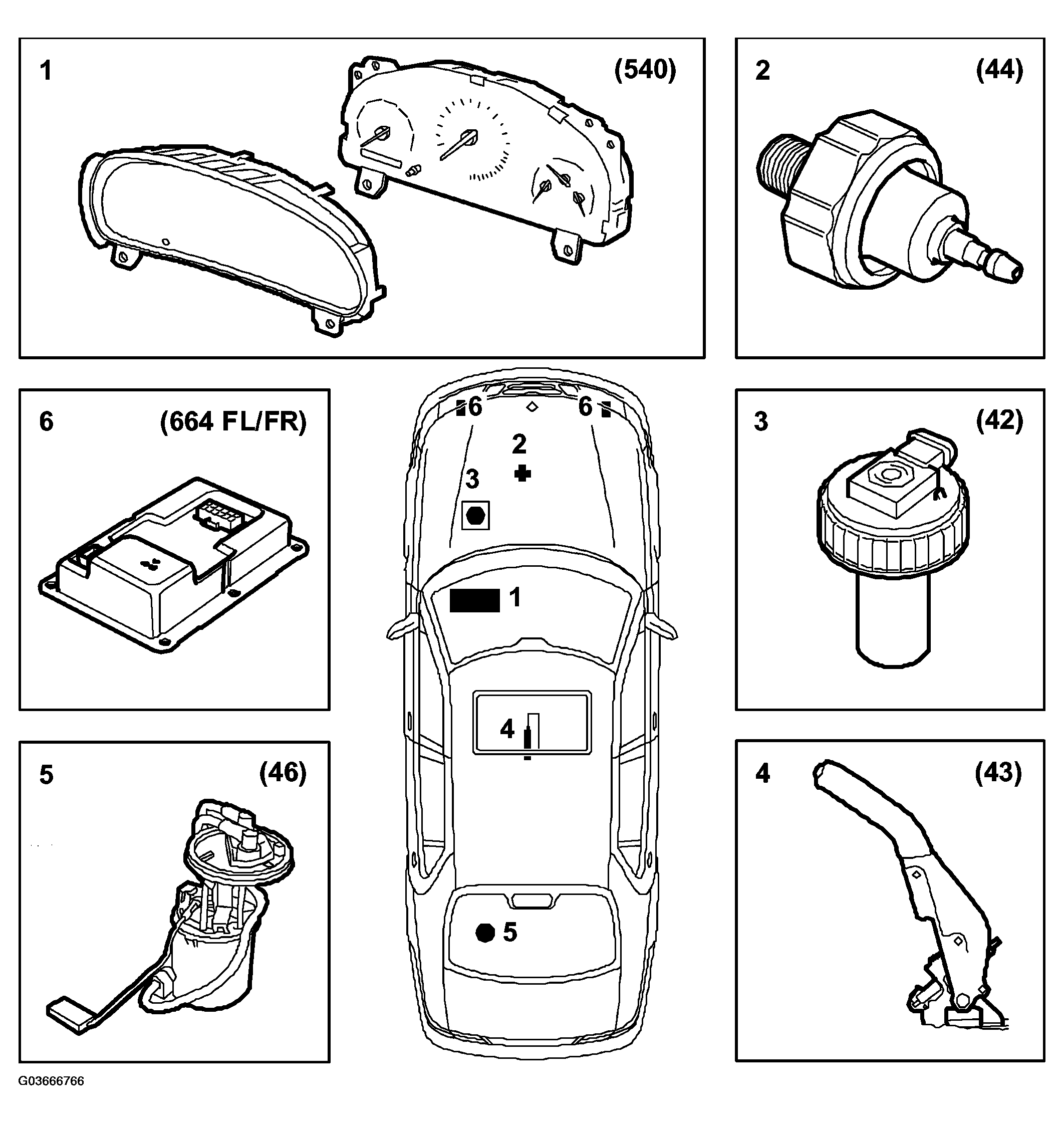

Fig 1: Illustration For Step 1-6
G03666766Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Main instrument unit (540)
  2. Engine oil pressure sensor (44)
  3. Brake fluid level sensor (42)
  4. Handbrake switch (43)
  5. Fuel level sensor (46)
  6. Control module, AHL (Automatic Headlamp Levelling) (664 FL/FR)
