Technical Description: Ground: Notes

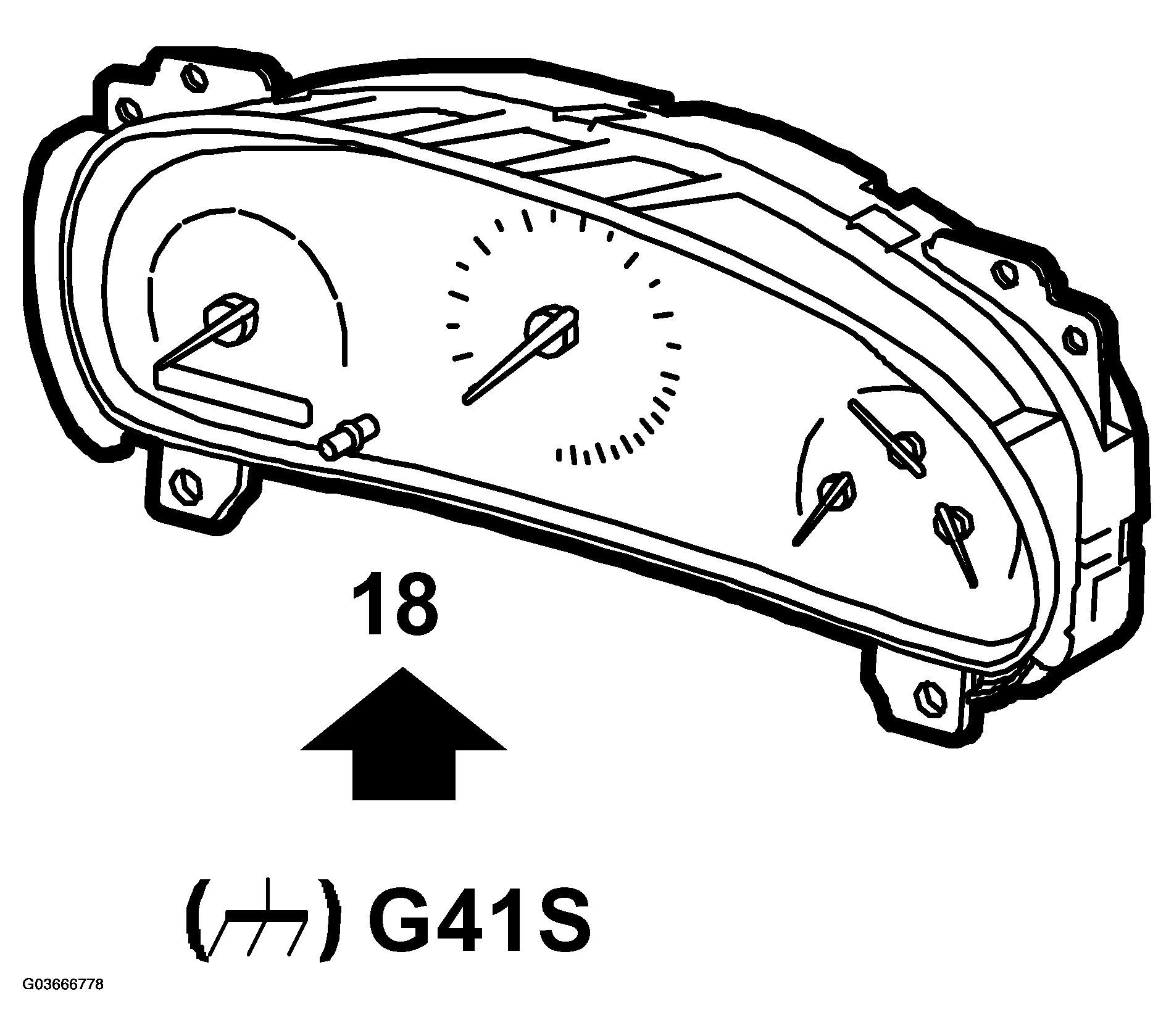

Fig 1: Identifying Main Instrument Unit Ground Point
G03666778Courtesy of SAAB-SCANIA OF AMERICA, INC.

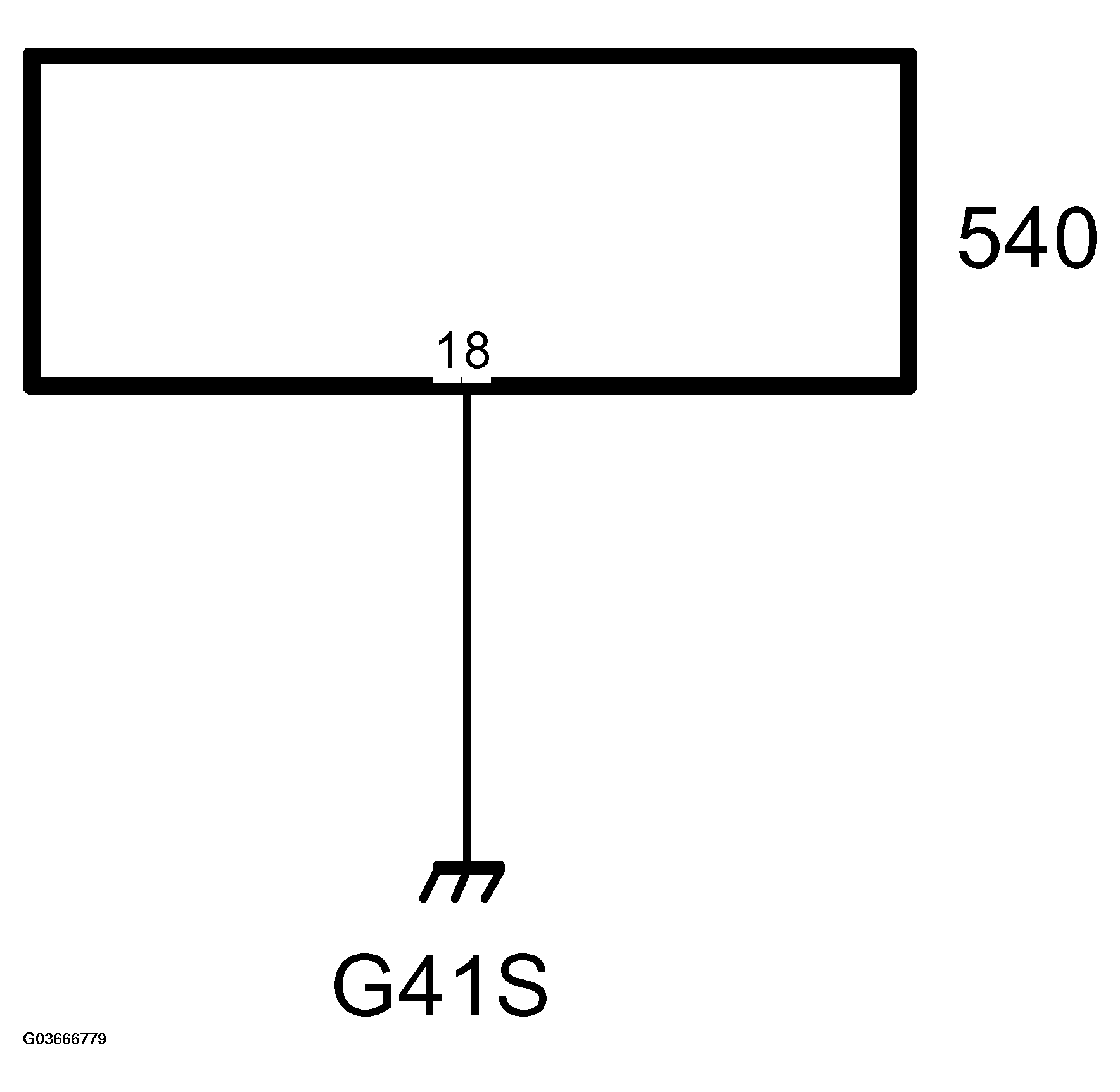

Fig 2: Main Instrument Unit Ground Point - Circuit Diagram
G03666779Courtesy of SAAB-SCANIA OF AMERICA, INC.

The main instrument unit is grounded through pin 18 to ground point G41S.
