Coolant temperature: Diagnostics

The function has its own diagnostics in the sending system.

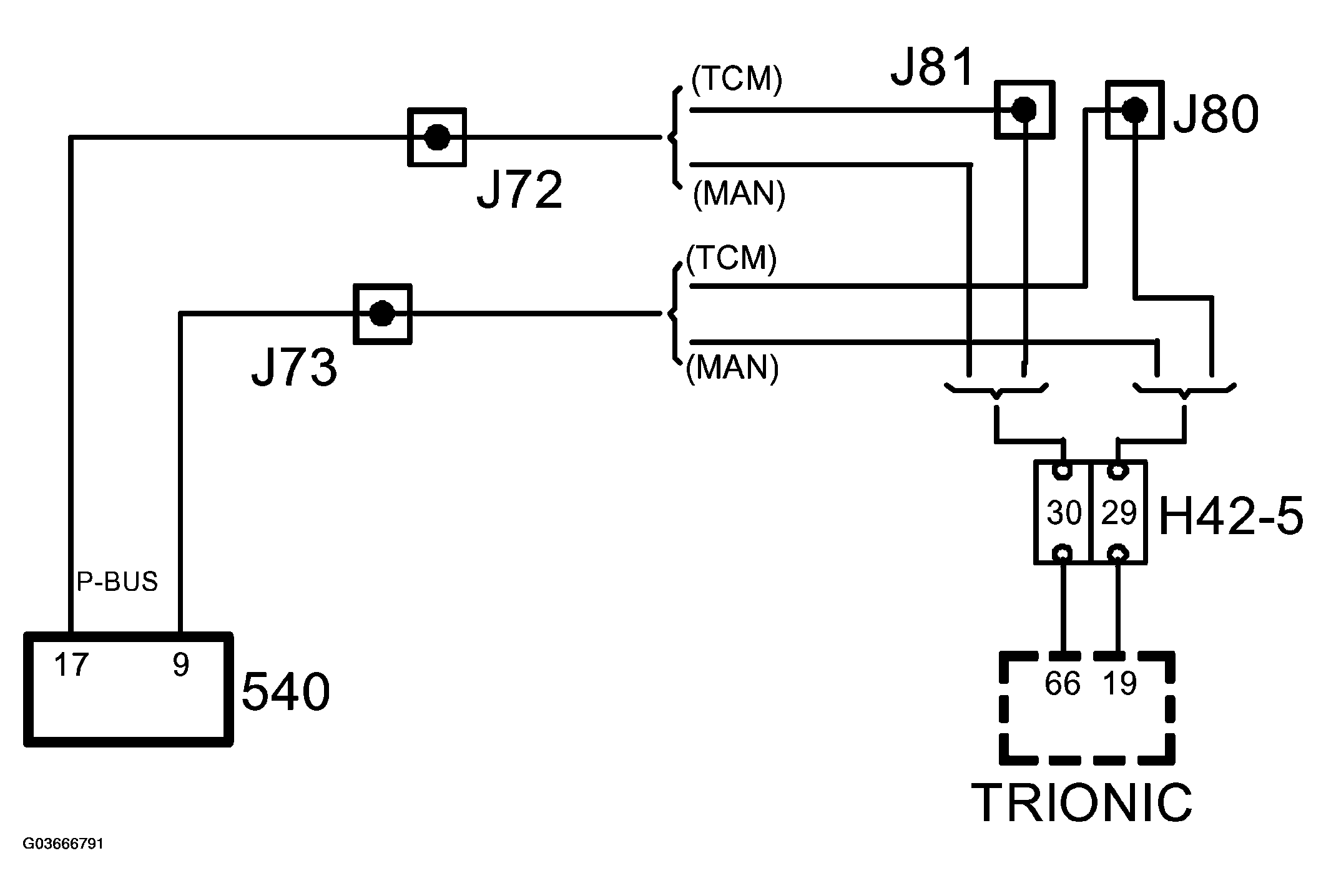

Fig 1: Coolant Temperature Communication - Circuit Diagram (1 Of 2)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 2: Coolant Temperature Communication - Circuit Diagram (2 Of 2)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
