Control module outputs, bus

Cars with petrol engine

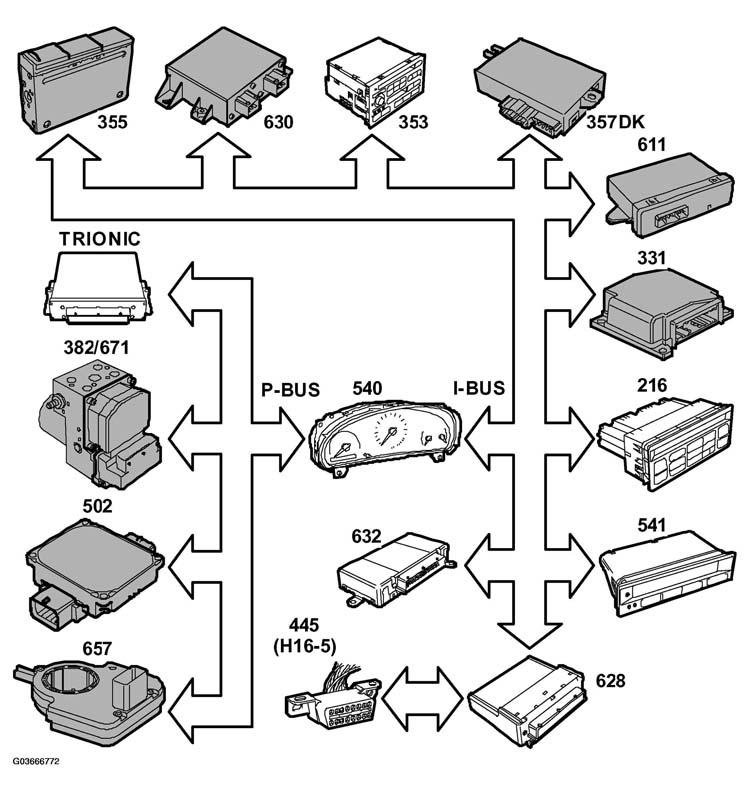

Fig 1: Identifying Bus Control Module Outputs Functional Diagram - Cars With Petrol Engine

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Cars with V6 diesel engine

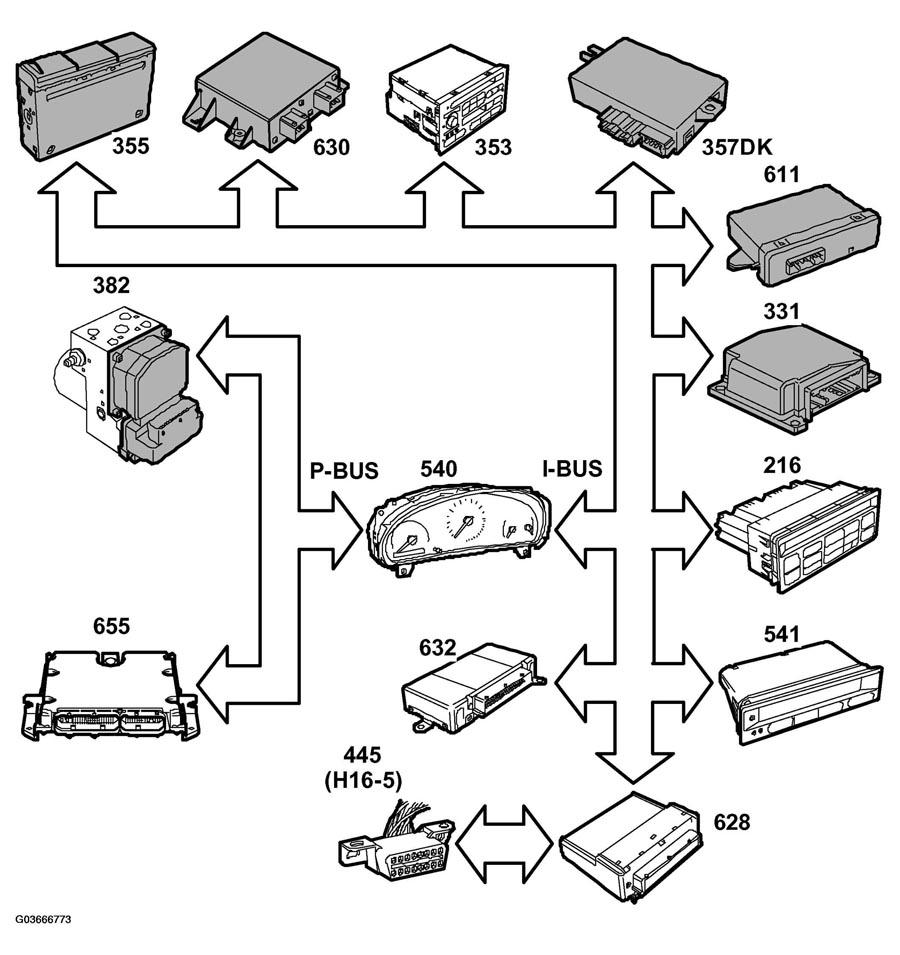

Fig 2: Identifying Bus Control Module Outputs Functional Diagram - Cars With V6 Diesel Engine

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Cars with 4-cyl diesel engine

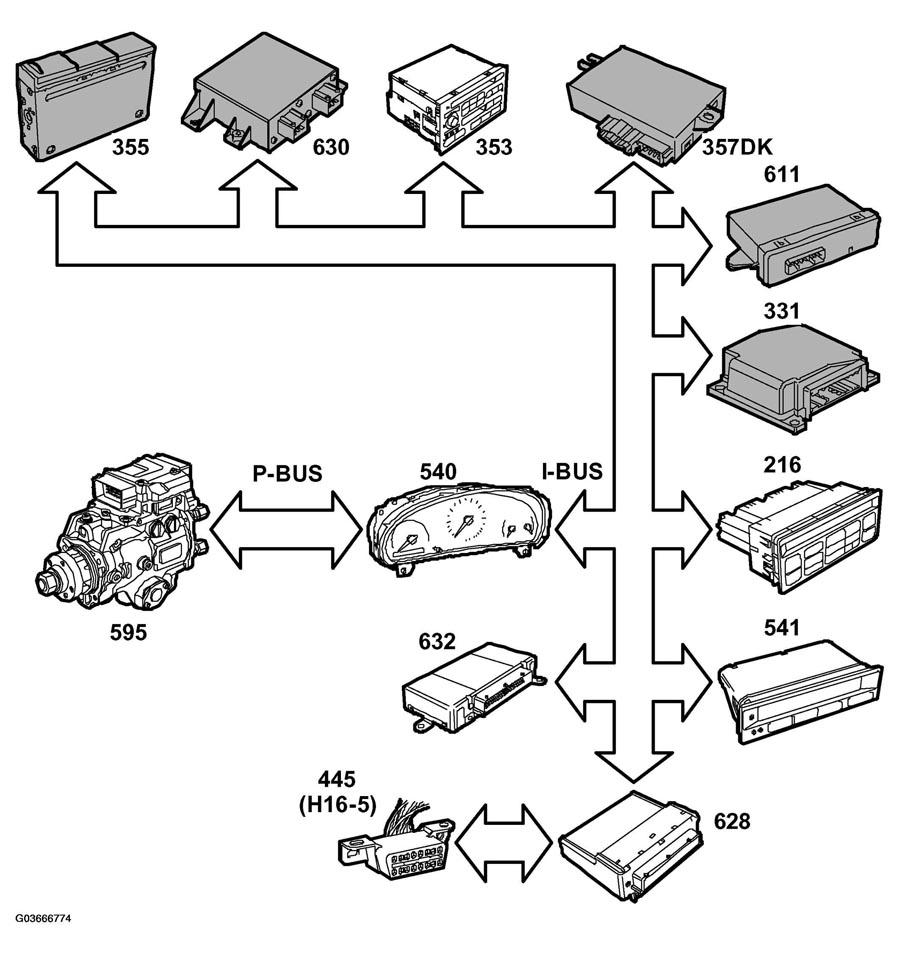

Fig 3: Identifying Bus Control Module Outputs Functional Diagram - Cars With 4-Cyl Diesel Engine

Courtesy of SAAB-SCANIA OF AMERICA, INC.

• Vehicle speed DTC B1705: VEHICLE SPEED SIGNAL FAULTY .
• Odometer reading used by SID (541) SPEEDOMETER WITH ODOMETER AND TRIPMETER. .
• Fuel level used by SID (541), ECM FUEL LEVEL SENSOR .
• Acoustic signal central warning lamp used by SID (541) SYSTEM WIRING DIAGRAMS .
• Diagnostic communication (445)
• Identification number used by TWICE (632) SYSTEM WIRING DIAGRAMS .
