Control module inputs, bus

Cars with petrol engine

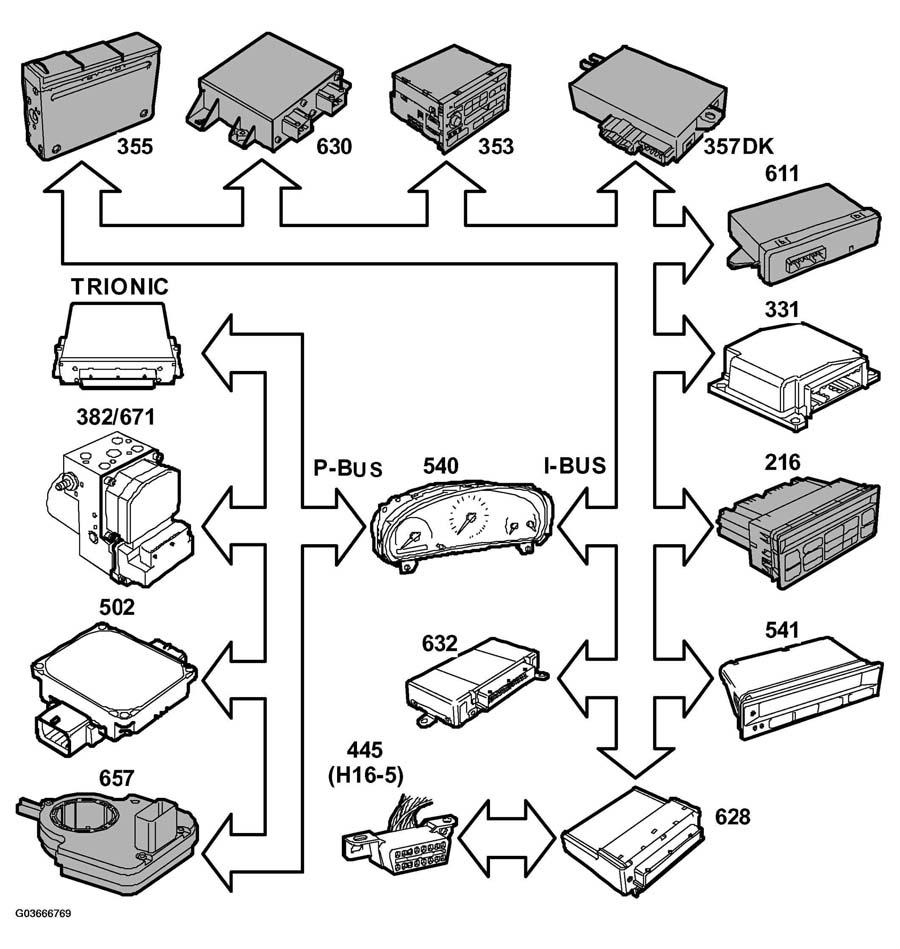

Fig 1: Identifying Bus Control Module Inputs Functional Diagram - Cars With Petrol Engine
G03666769Courtesy of SAAB-SCANIA OF AMERICA, INC.

Cars with V6 diesel engine

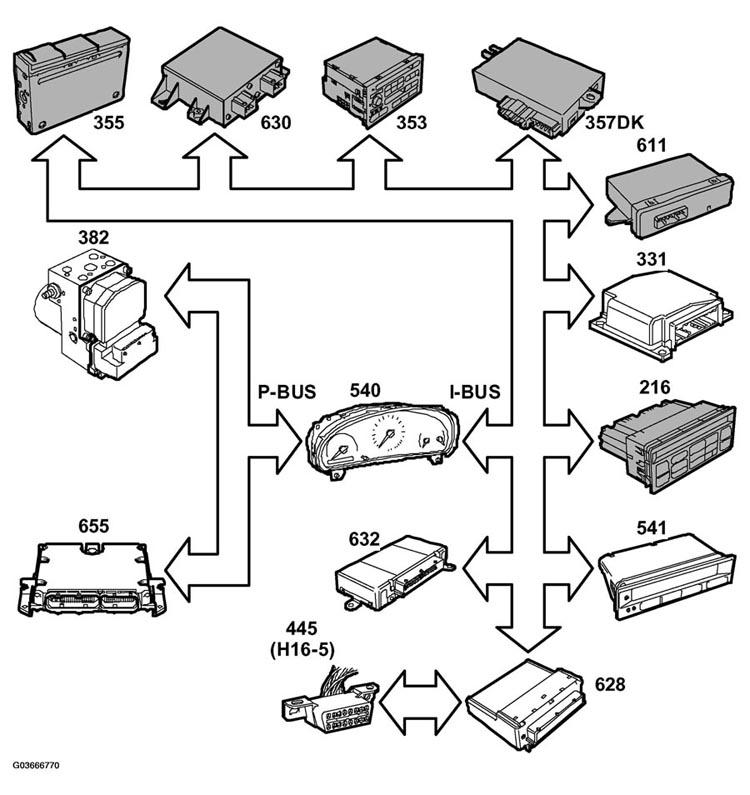

Fig 2: Bus Control Module Inputs Functional Diagram - Cars With V6 Diesel Engine
G03666770Courtesy of SAAB-SCANIA OF AMERICA, INC.

Cars with 4-cyl diesel engine

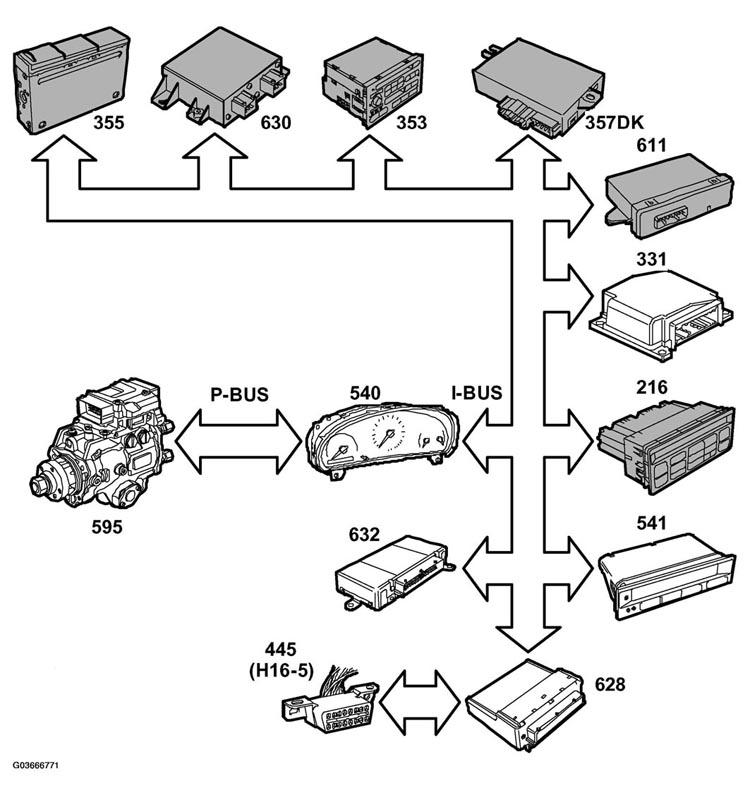

Fig 3: Identifying Bus Control Module Inputs Functional Diagram - Cars With 4-Cyl Diesel Engine
G03666771Courtesy of SAAB-SCANIA OF AMERICA, INC.
