Fuel level sensor, V6 diesel

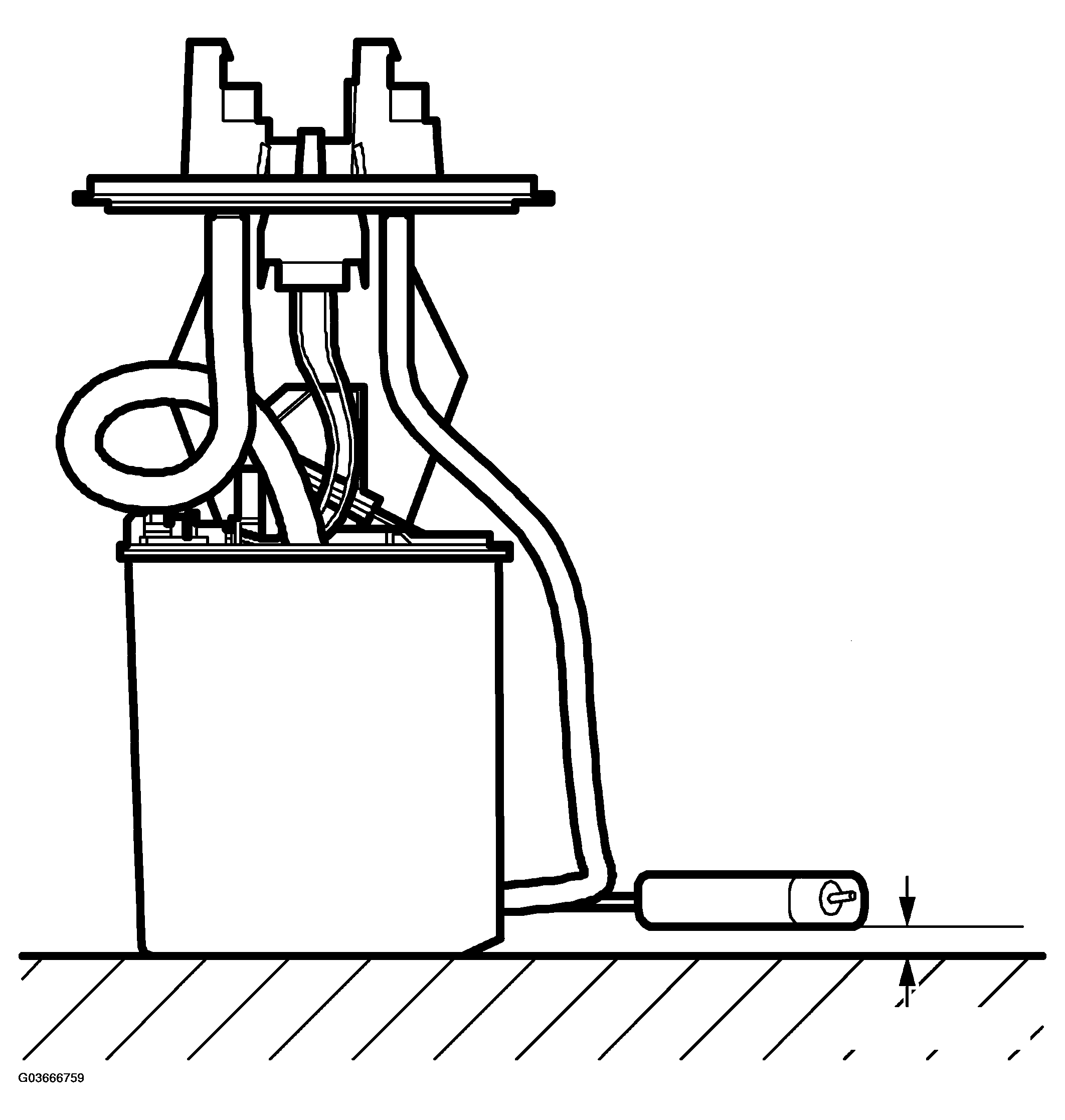

Fig 1: Identifying Fuel Level Sensor - V6 Diesel
G03666759Courtesy of SAAB-SCANIA OF AMERICA, INC.
IDENTIFYING FUEL LEVEL SENSOR REFERENCE - V6 DIESEL

Resistance, empty tank Ohms 60+/-2.6
Resistance, full tank Ohms 390+/-6.0
