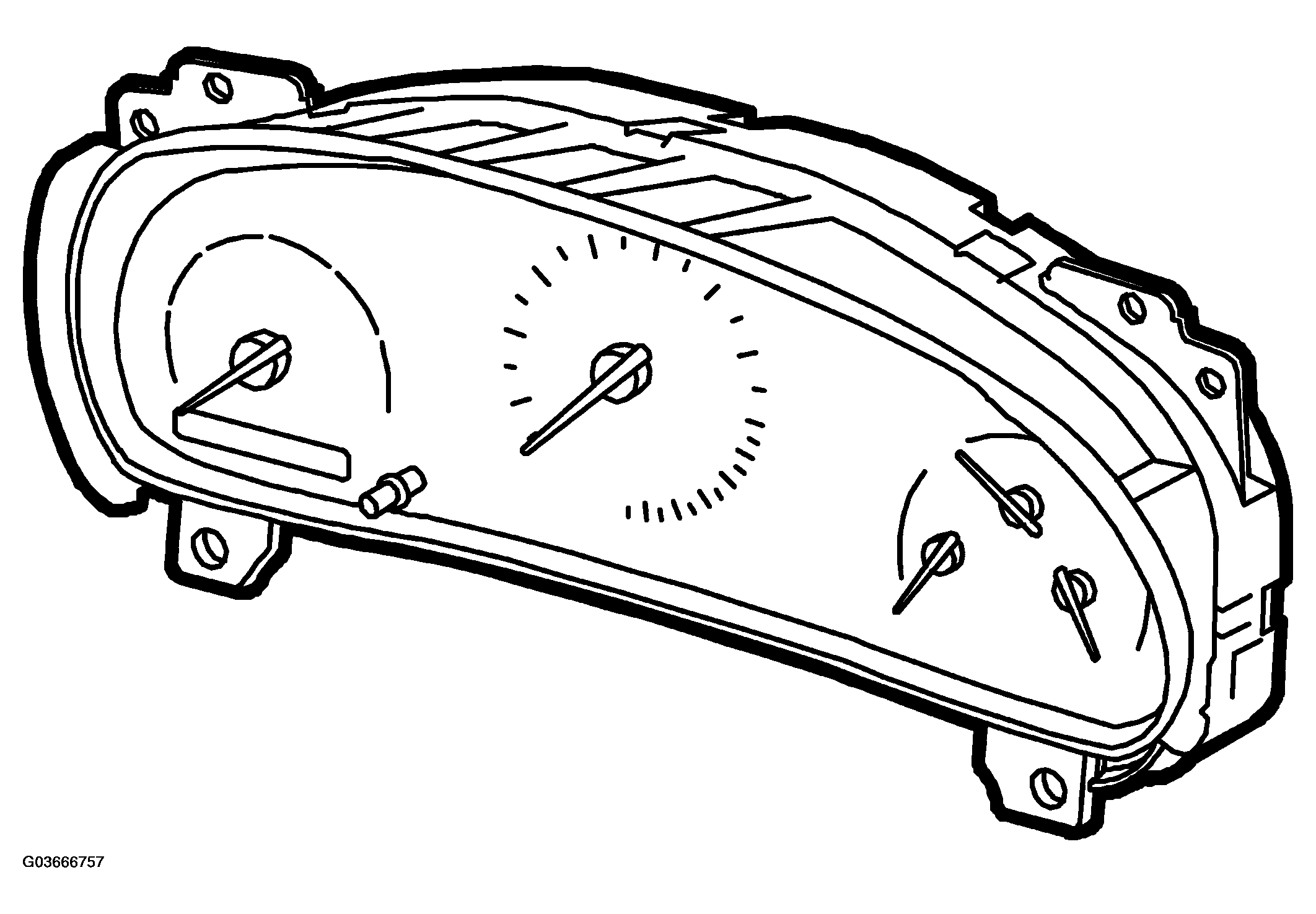

Control module, main instrument unit
Courtesy of SAAB-SCANIA OF AMERICA, INC. MAIN INSTRUMENT UNIT CONTROL MODULE REFERENCE
| Number of pins |
|
|
22 |
| Power supply (+30 circuit) |
|
Pin No. |
1 |
| Power supply (+15 circuit) |
|
Pin No. |
2 |
| Signal ground |
|
Pin No. |
18 |
| I bus |
+ |
Pin No. |
8 |
| |
- |
Pin No. |
16 |
| P-bus |
+ |
Pin No. |
17 |
| |
- |
Pin No. |
9 |
