Home >> Saab >> 2003 >> 9-5 Arc, 4D Sedan >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Main Instrument Panel, Petrol >> Component Location >> Grounding point G42 >> Notes

Grounding point G42: Notes

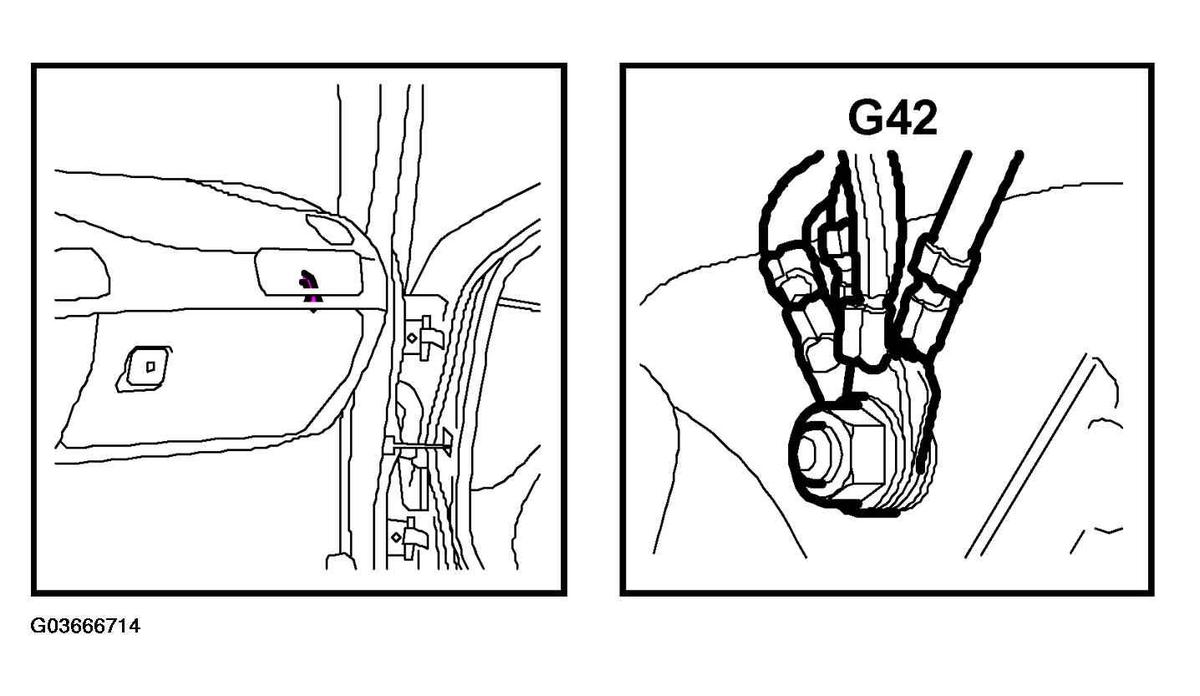

Fig 1: Identifying Grounding Point G42
G03666714Courtesy of SAAB-SCANIA OF AMERICA, INC.

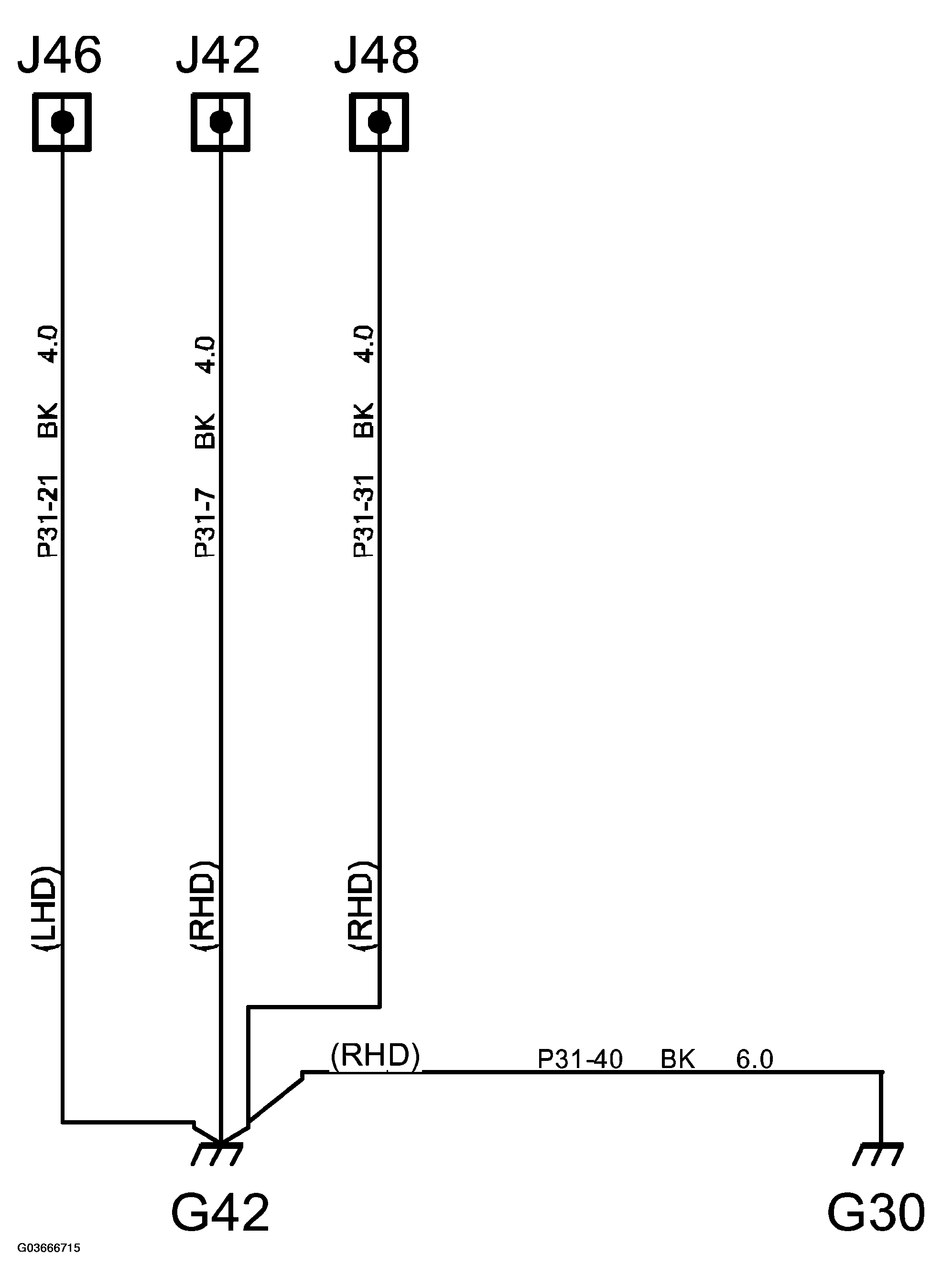

Fig 2: Identifying Grounding Point G42 - Circuit Diagram
G03666715Courtesy of SAAB-SCANIA OF AMERICA, INC.
