Grounding point G41S: Notes

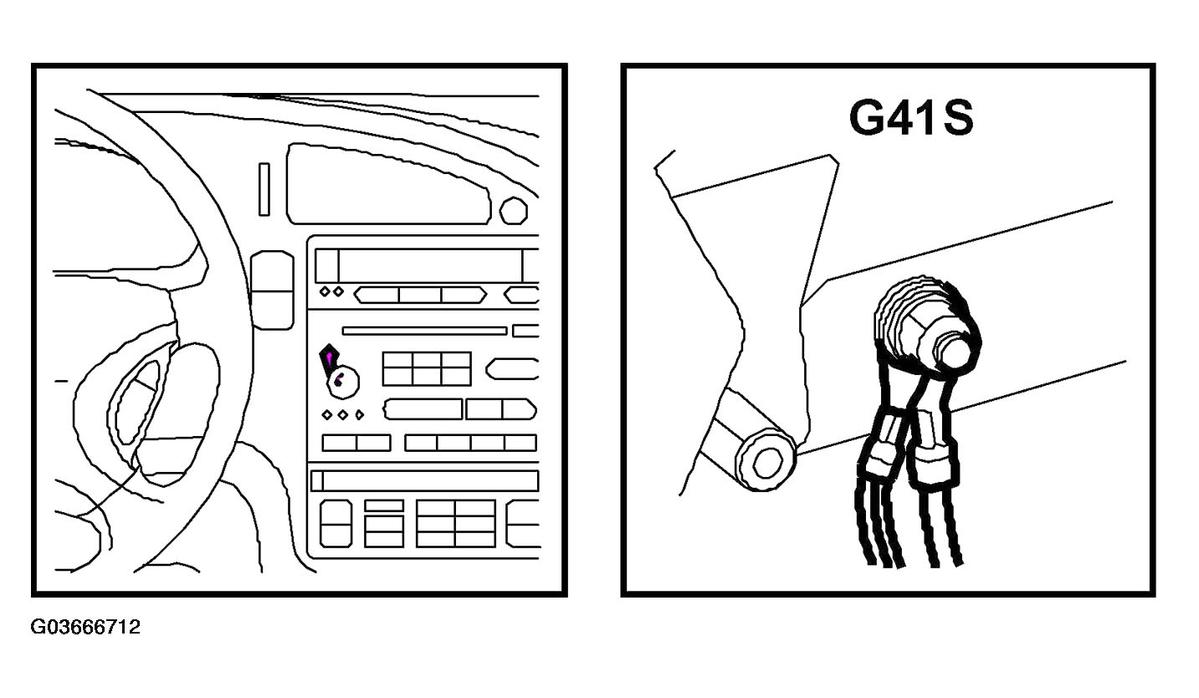

Fig 1: Identifying Grounding Point G41S
G03666712Courtesy of SAAB-SCANIA OF AMERICA, INC.

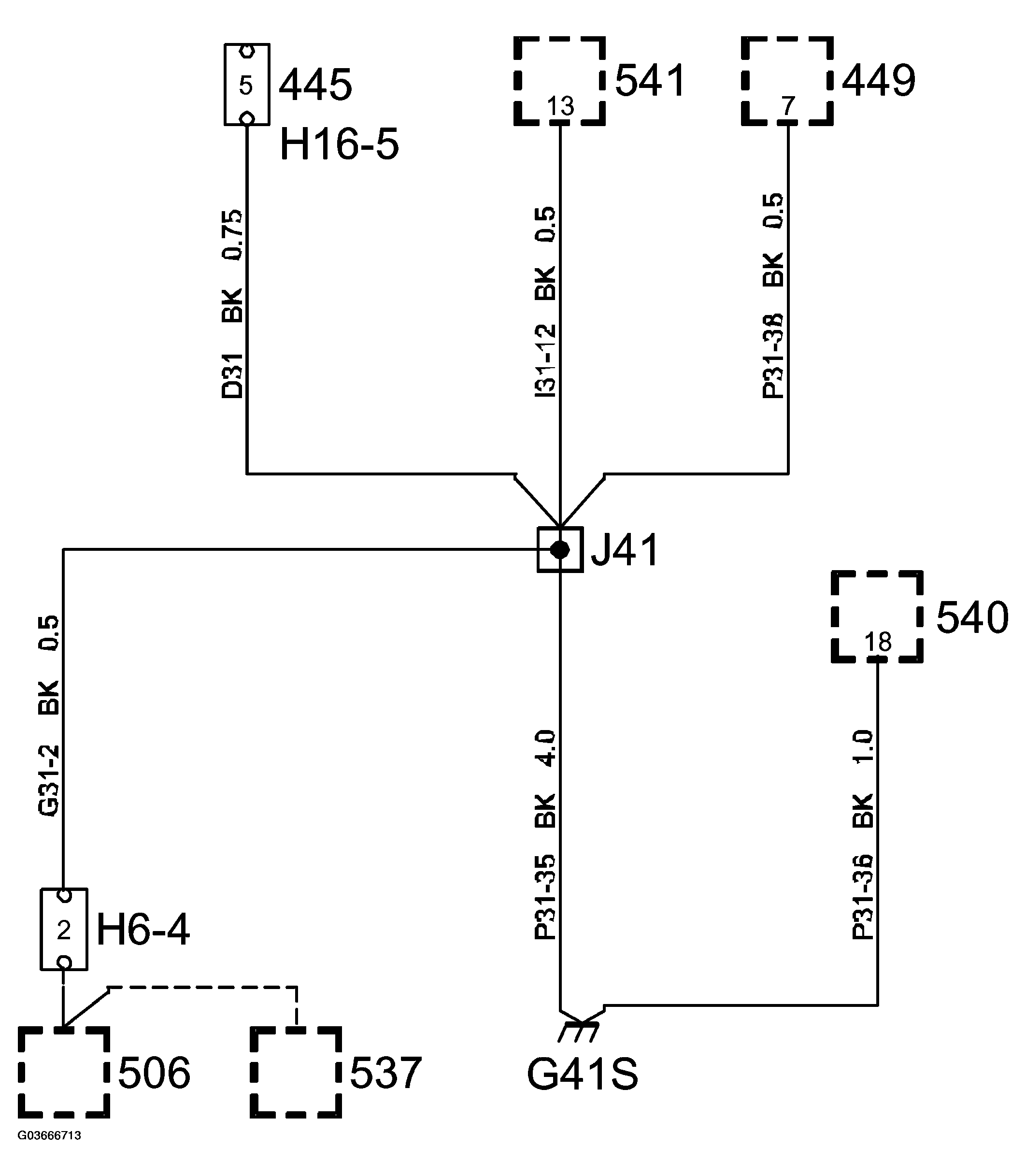

Fig 2: Identifying Grounding Point G41S - Circuit Diagram
G03666713Courtesy of SAAB-SCANIA OF AMERICA, INC.
