To remove

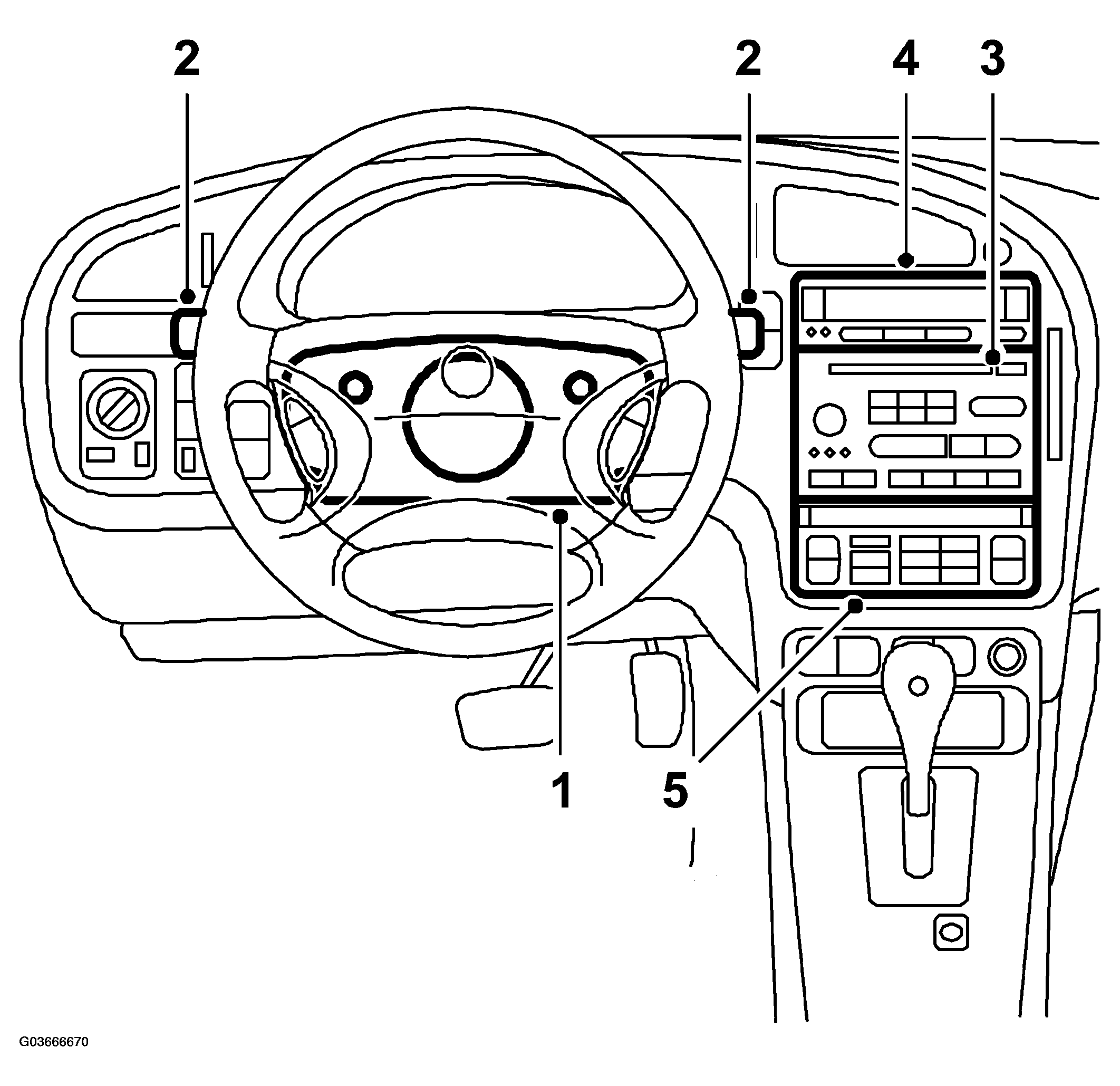

Fig 1: Illustration For Step 1-5
G03666670Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove upper and lower steering column cowls, 3 screws.
  2. Remove the direction indicator and windscreen wiper switch.
  3. Remove the radio.
  4. Remove the SID unit.
  5. Remove the ACC/heating and ventilation unit (not the seat heating unit).
  6. Remove the switches to the right of the steering wheel.

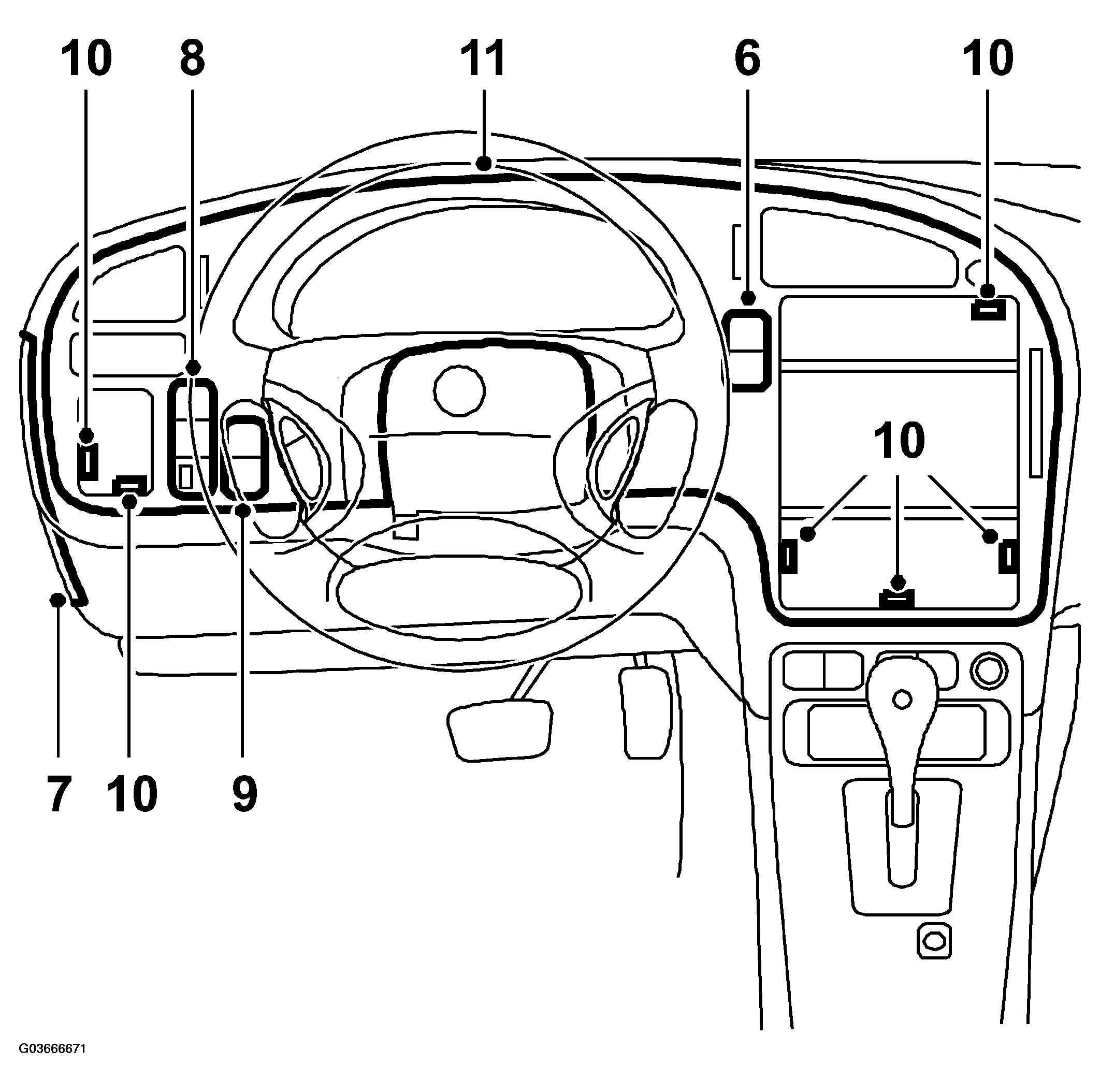

    Fig 2: Illustration For Step 6-11
    G03666671Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Remove the fuse cover.
  8. Unplug the light switch and press out the unit. Unplug the three switch connectors to the left of steering wheel, making a note of their order (black, green and orange).
  9. Remove the two button blanks.
  10. Remove the instrument panel screws and clips.
  11. Remove the instrument panel.
  12. Remove the screws securing the main instrument unit.

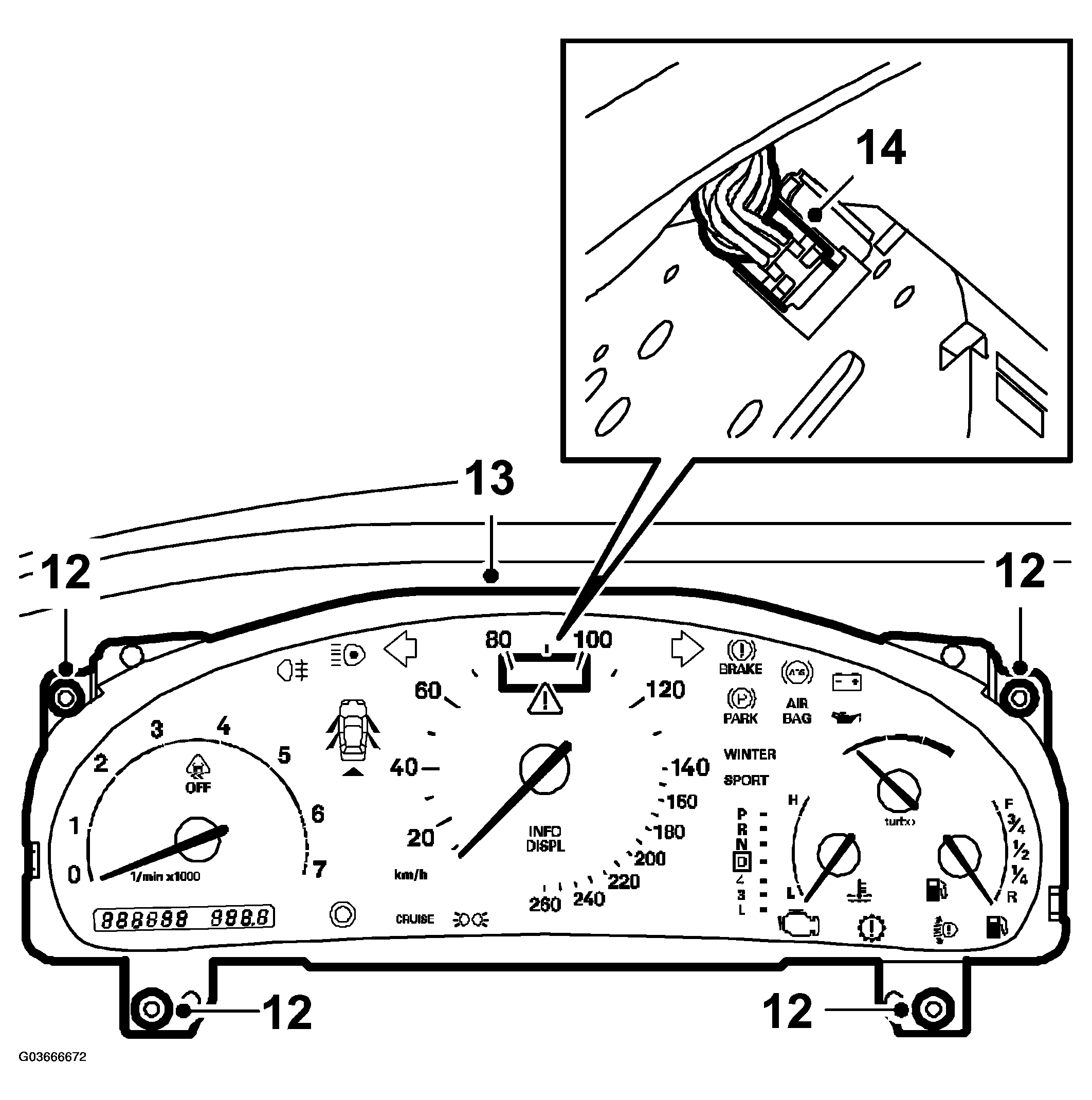

    Fig 3: Illustration For Step 12-14
    G03666672Courtesy of SAAB-SCANIA OF AMERICA, INC.
  13. Tip the main instrument unit backward.
  14. Unplug the connector.
  15. Lift out the main instrument unit.
