Adjusting the fuel gauge/sensor: Notes

There are two different ways of adjusting the sensor/gauge, depending on the fault symptoms: whether the reading error is "equally large" from full tank to empty tank or whether the reading error occurs only at a certain level. Adjustment of the fuel level sensor offset or, alternatively, the fuel gauge reading, is possible.

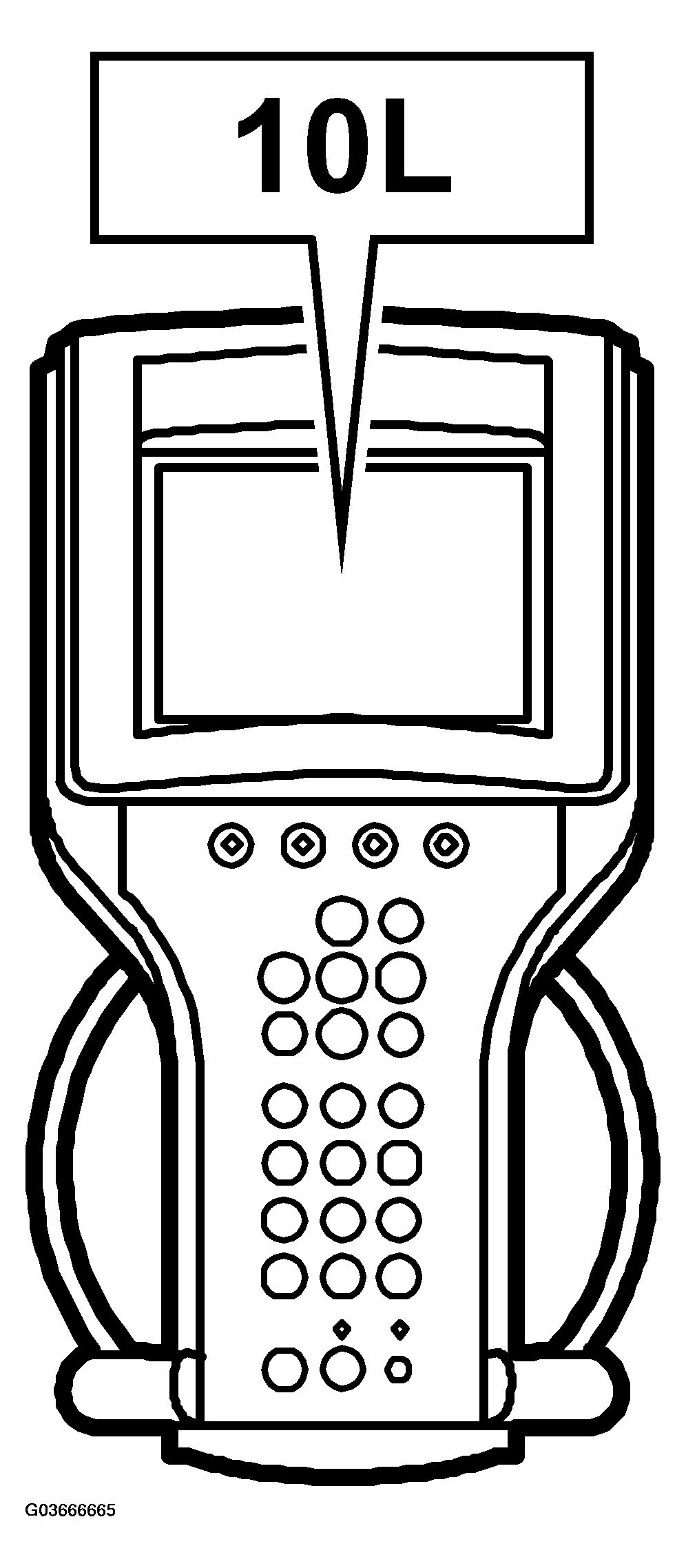

Fig 1: Identifying Reading In Scan Tool

Courtesy of SAAB-SCANIA OF AMERICA, INC.

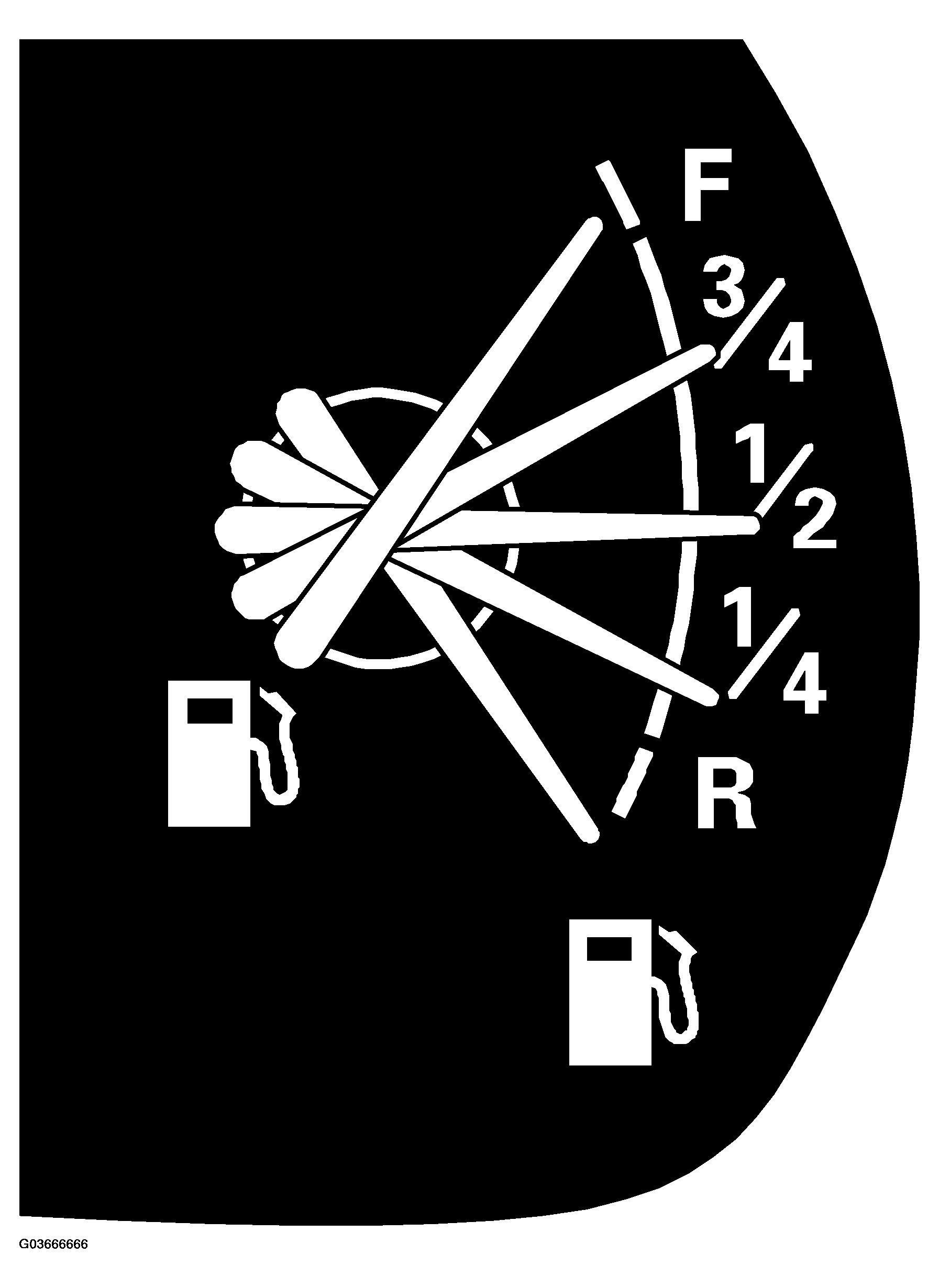

Fig 2: Identifying Fuel Gauge

Courtesy of SAAB-SCANIA OF AMERICA, INC.
