Adjusting Fuel Consumption display on SID

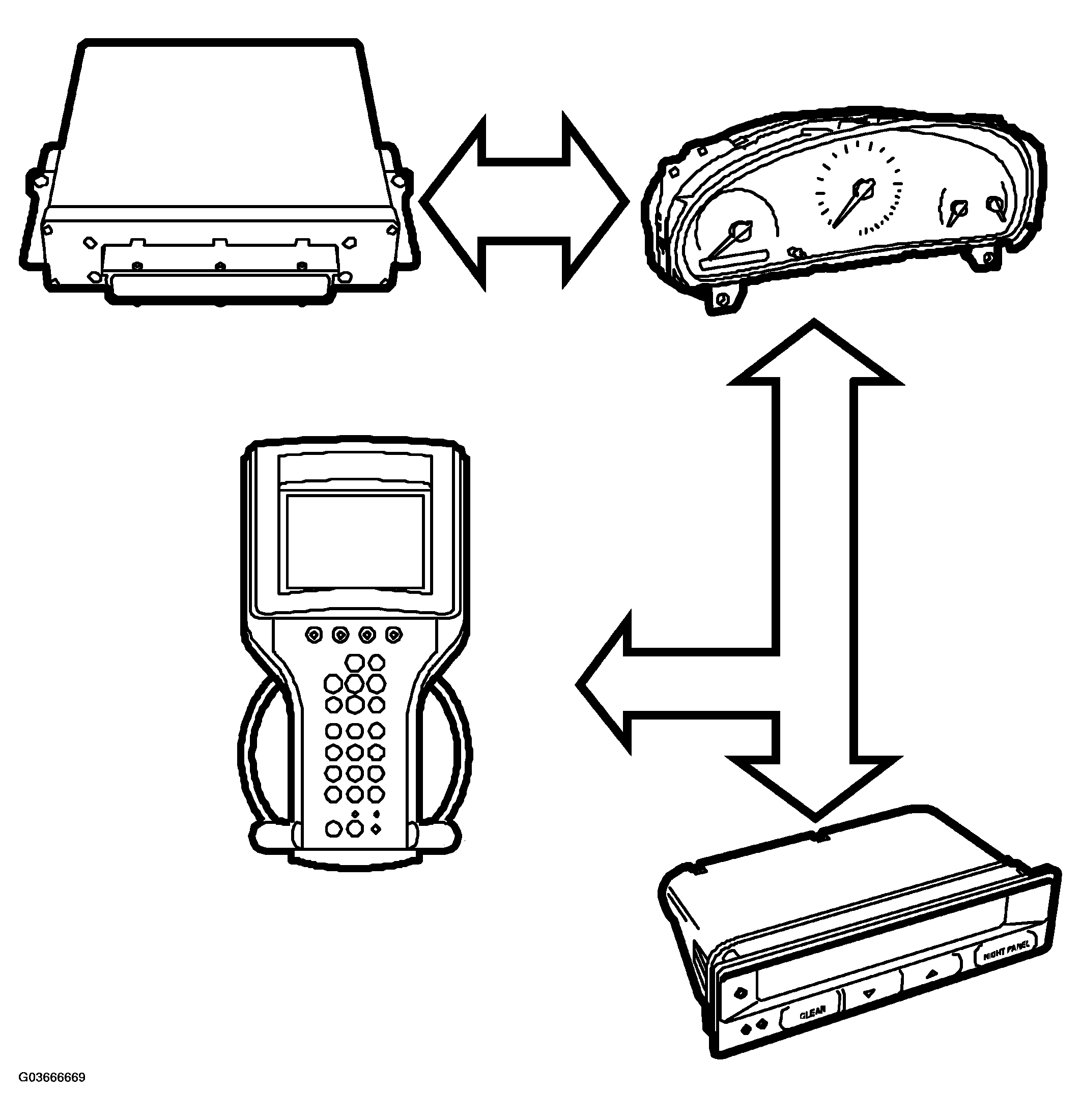

Fig 1: Identifying Fuel Consumption Functional Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The fuel consumption value comes on the bus from Trionic. The main instrument unit reads this value and sends it out on the I bus. With this adjustment command, whatever is sent out on the bus can be modified as the main instrument unit adjusts the value with respect to this parameter. The value is adjusted in % and is always 0% on delivery ex works.
