System overview

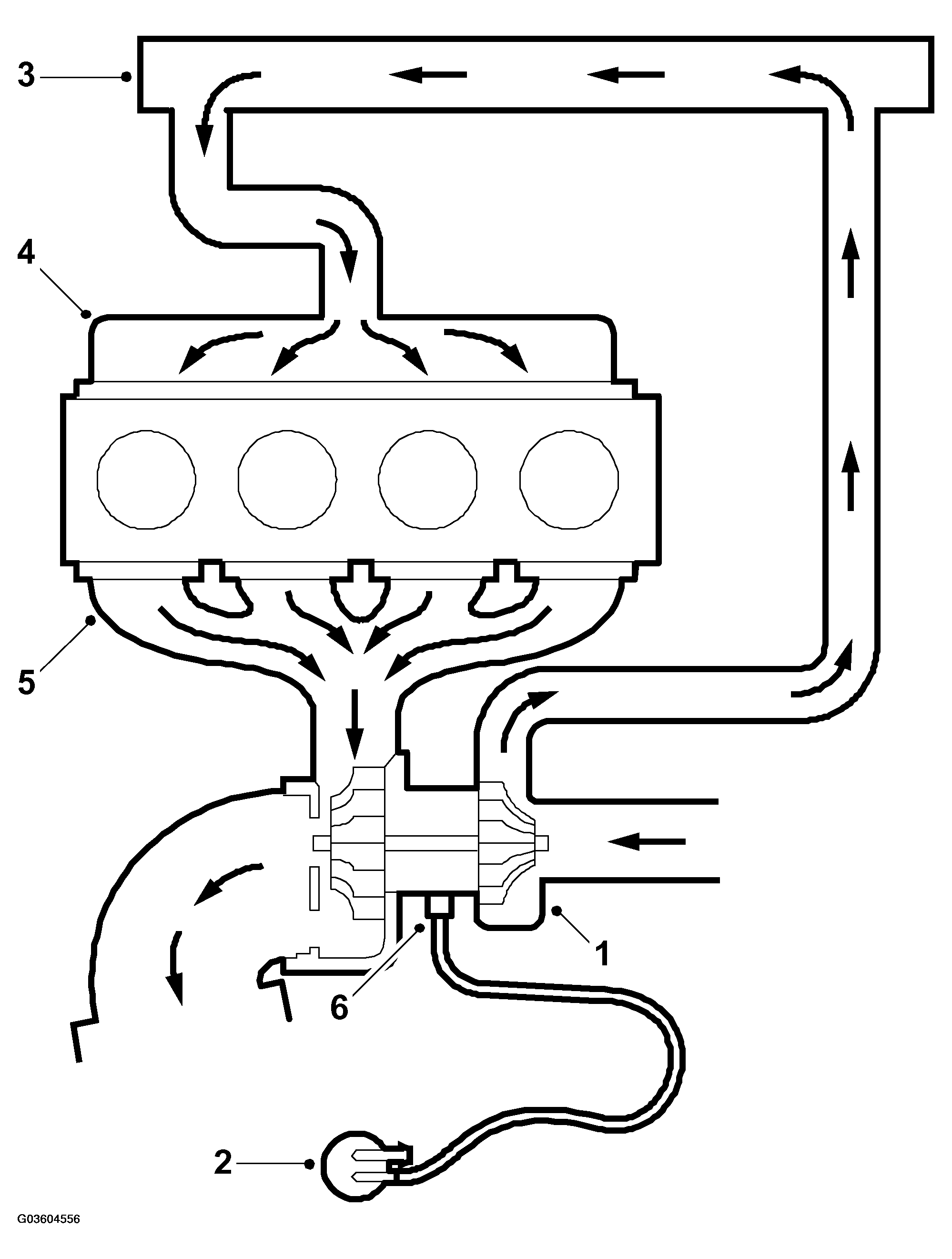

Fig 1: Identifying Turbocharger System Overview
G03604556Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Turbo unit
  2. Solenoid valve
  3. Intercooler
  4. Intake manifold
  5. Exhaust manifold
  6. Control valve
