Main components

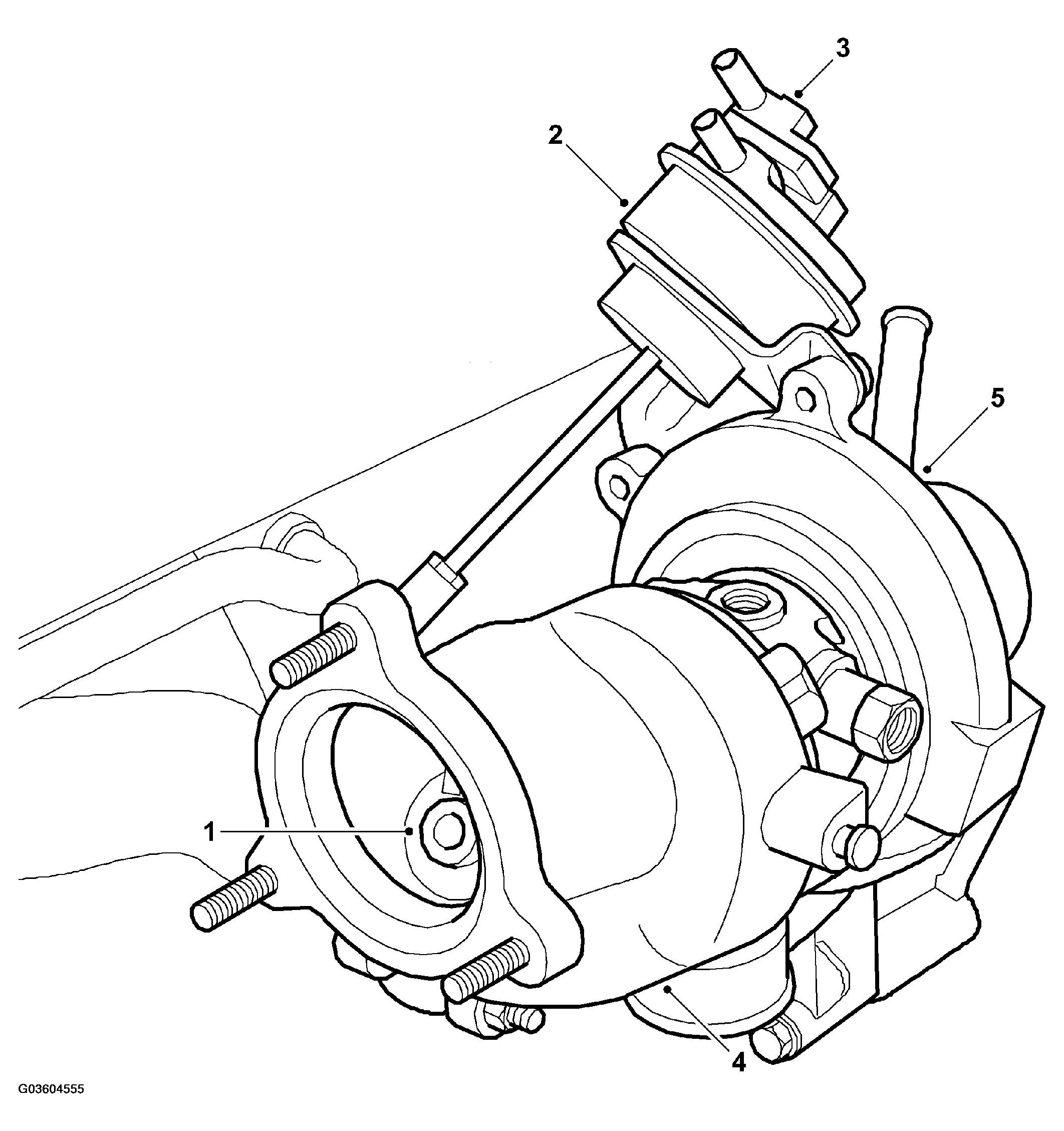

Fig 1: Identifying Turbocharger System Main Components
G03604555Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Wastegate valve
  2. Diaphragm box
  3. Solenoid valve
  4. Turbine housing
  5. Compressor housing
