Wastegate valve: Notes

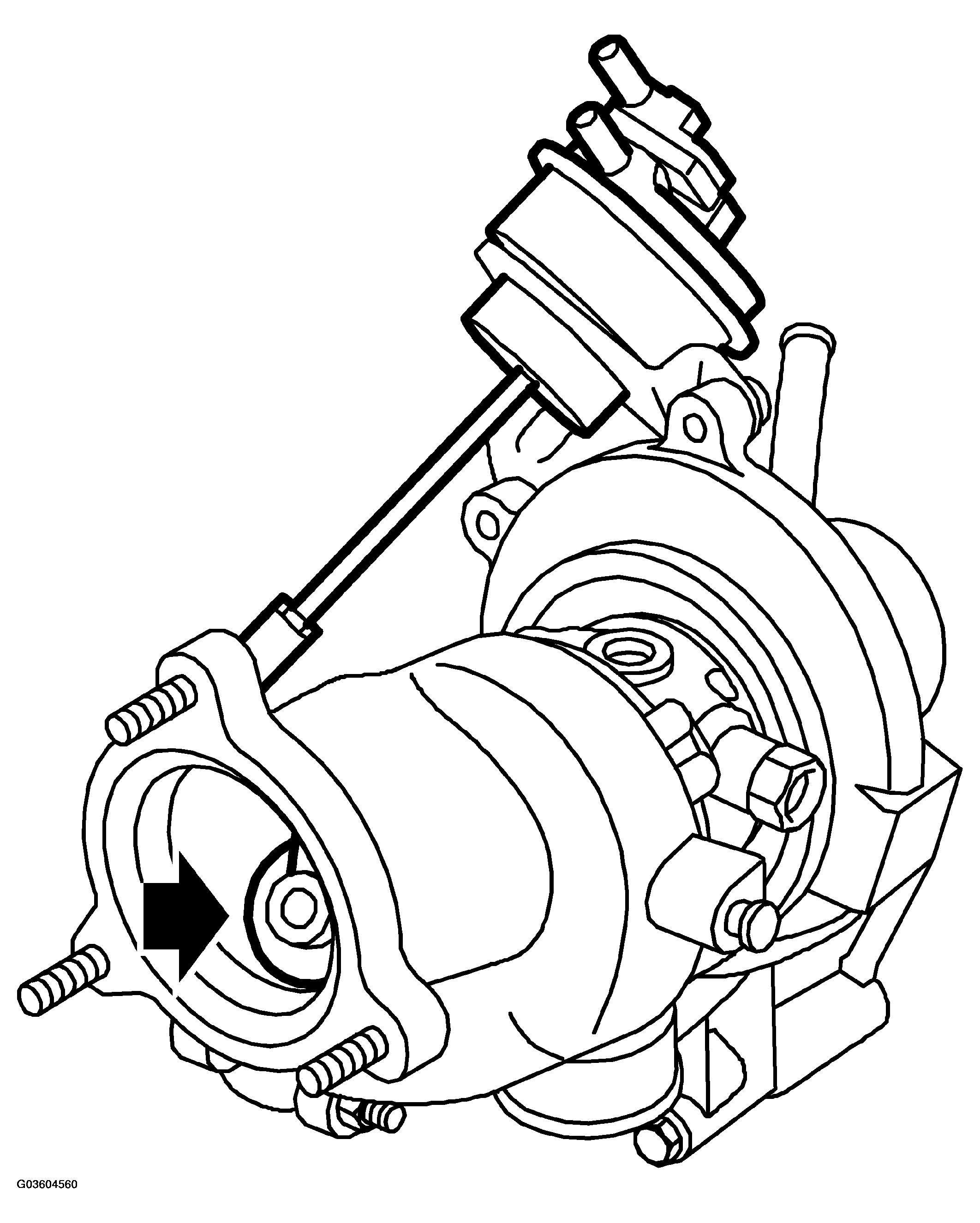

Fig 1: Identifying Wastegate Valve
G03604560Courtesy of SAAB-SCANIA OF AMERICA, INC.

The wastegate valve is a clack valve that opens and closes a bypass passage beside the turbine wheel. The valve is controlled by a diaphragm box on the compressor housing.
