Turbo control at low loads

At low loads, the wastegate valve is closed. All the exhaust gas then passes through the turbine.

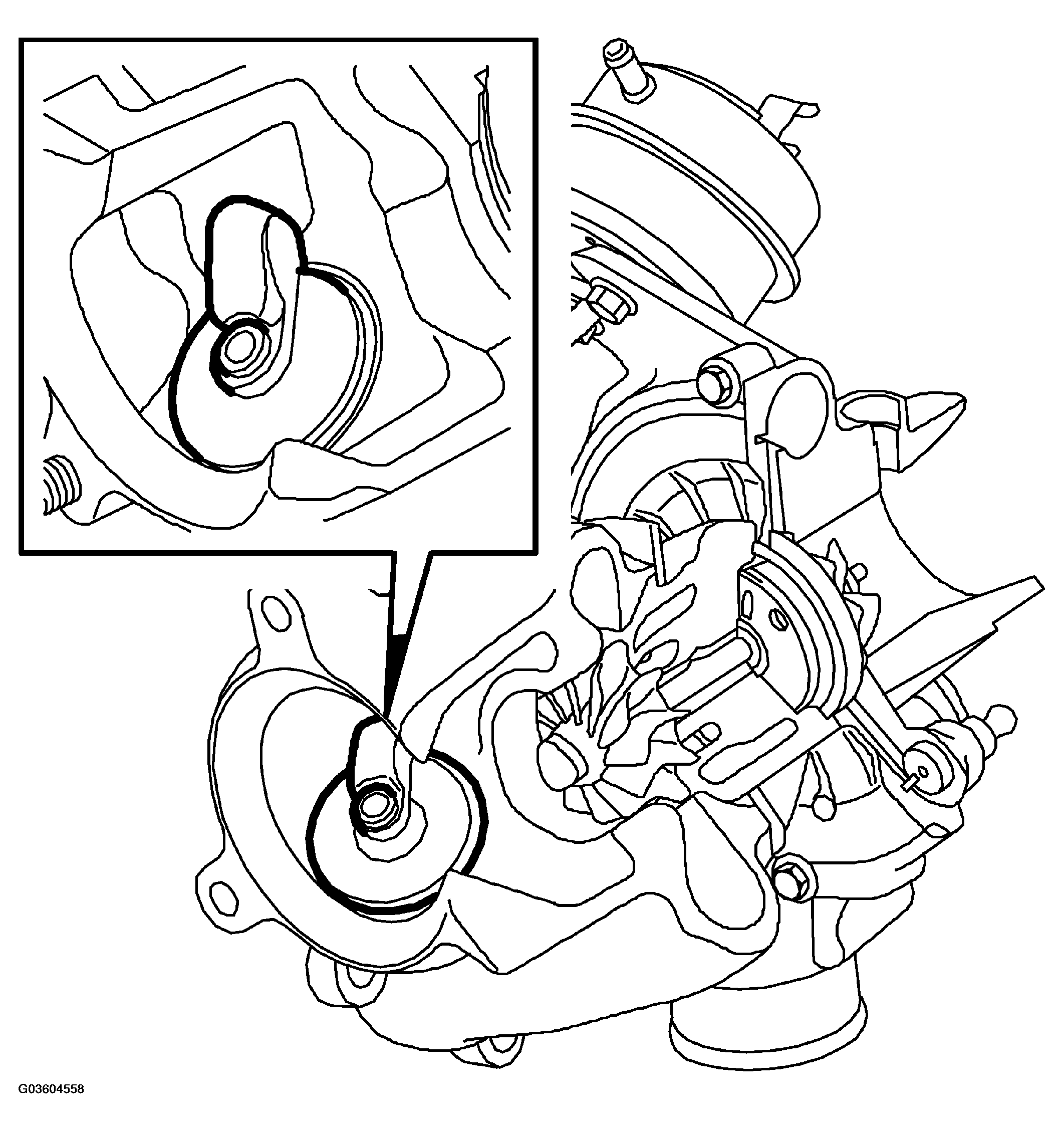

Fig 1: Identifying Turbo Control At Low Loads (Wastegate Valve Is Closed)
G03604558Courtesy of SAAB-SCANIA OF AMERICA, INC.
