To remove

  1. Raise the car.
  2. Remove the Spoiler shield, front.
  3. Detach the hose clamp on the lower junction hose from the charge air pipe.

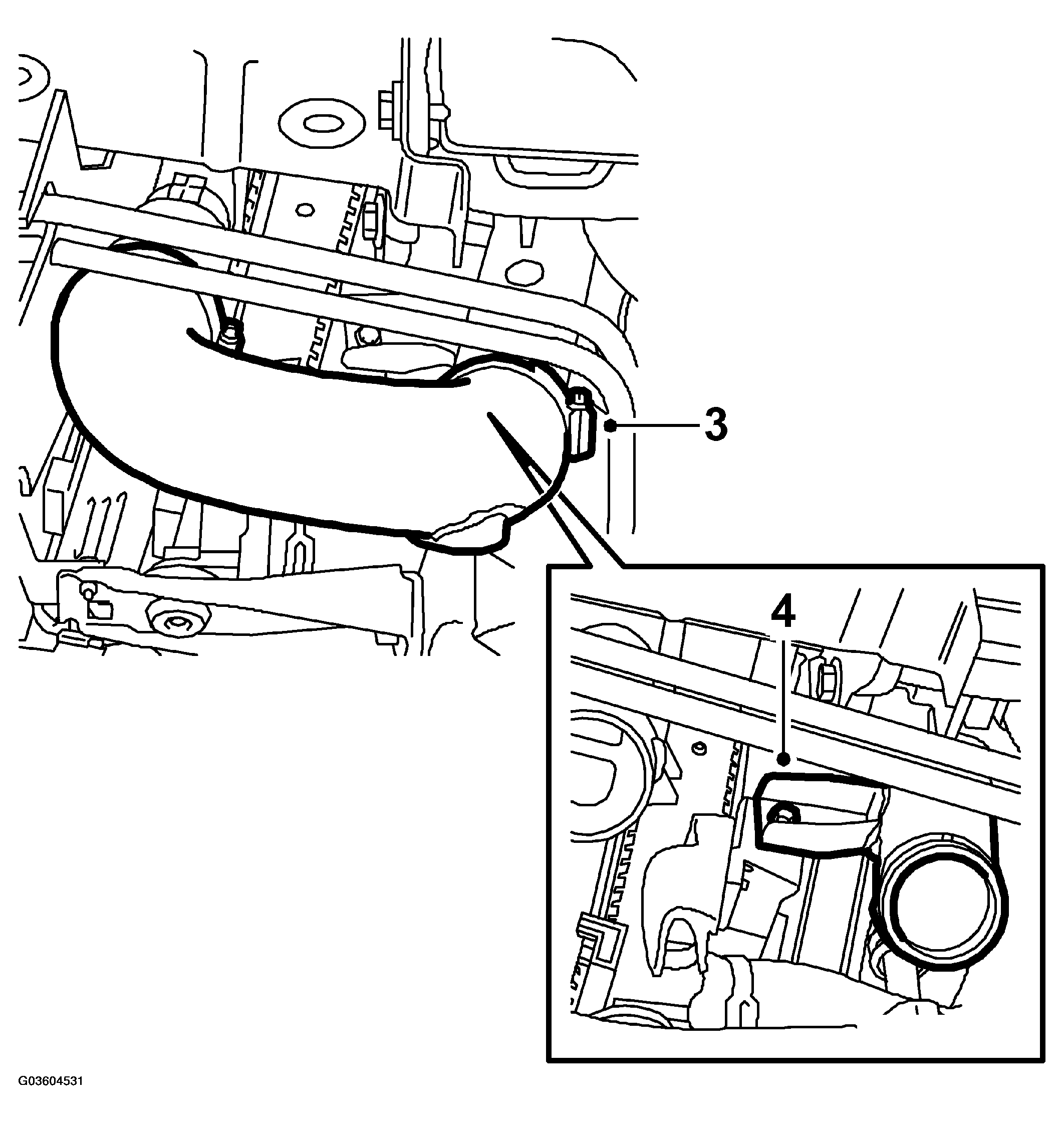

    Fig 1: Illustration For Steps 3-4
    G03604531Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the lower charge air pipe bracket from the fan cowling.
  5. Lower the car.
  6. Remove the upper engine cover.
  7. Detach the hose clamps to the upper junction hose and bend the hose aside.

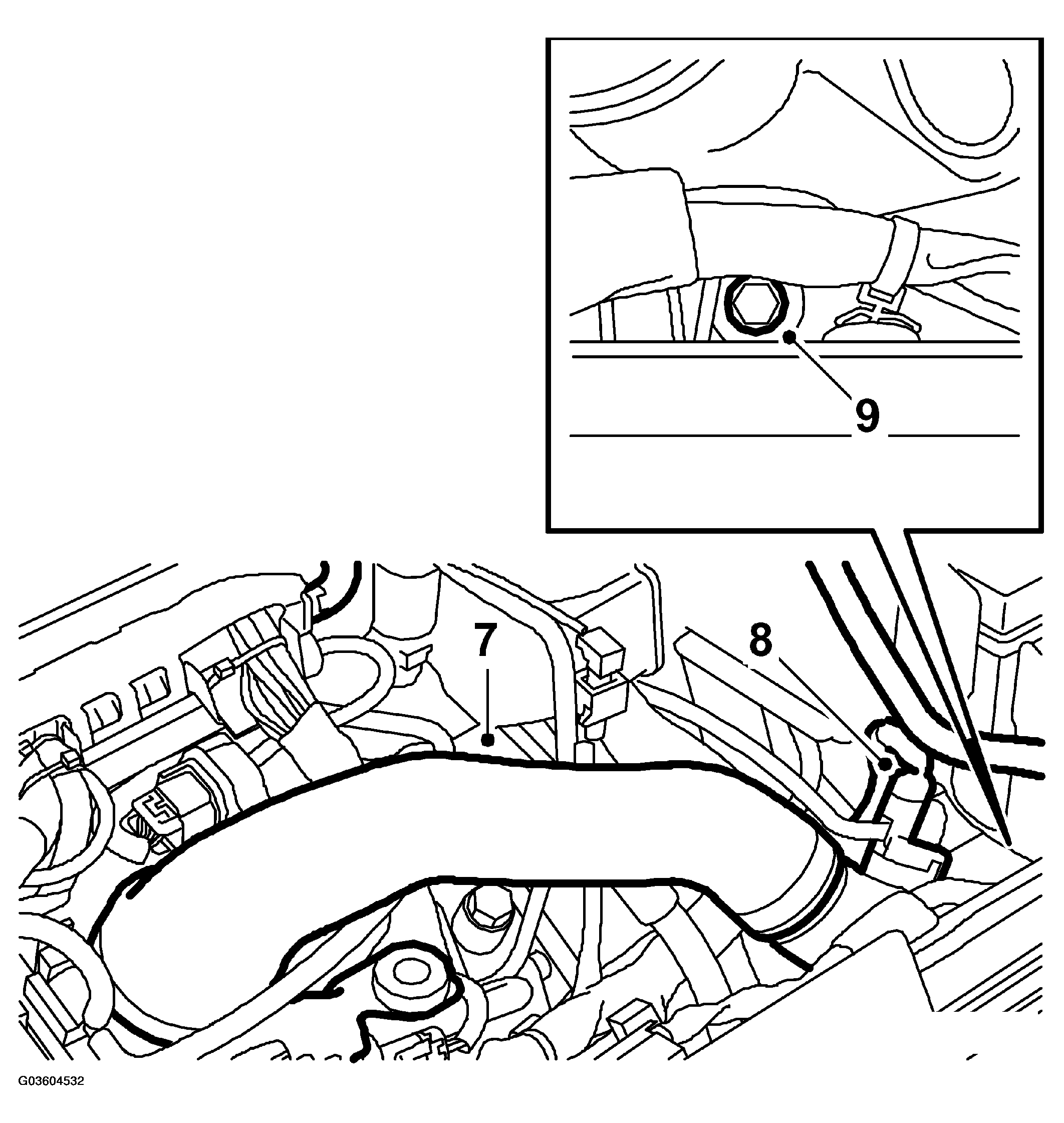

    Fig 2: Illustration For Steps 7-9
    G03604532Courtesy of SAAB-SCANIA OF AMERICA, INC.
  8. Remove the connector and the hose from the temperature/pressure sensor on the charge air pipe.
  9. Remove the charge air pipe upper bracket from the fan cowling.
  10. Lift away the delivery pipe.
